HUV 4210 EXP - Husqvarna 4x2 Utility Vehicle, Electric (2006-11) Rear Brake Assembly, Self-Adjusting - Vehicle With 2-Wheel Brakes Parts Diagram

4x2 Utility Vehicle, Electric

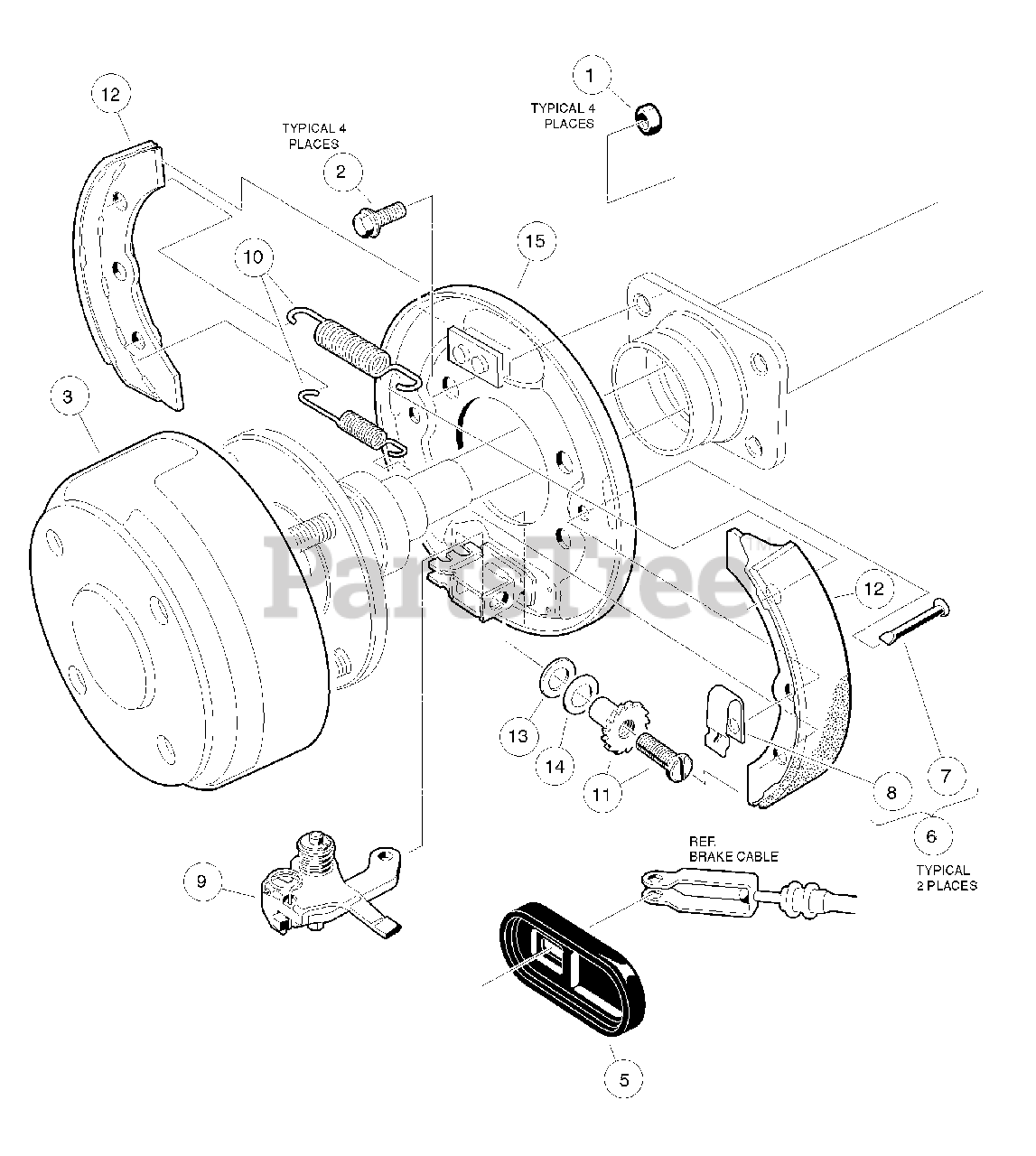

Rear Brake Assembly, Self-Adjusting - Vehicle With 2-Wheel Brakes Parts Diagram

  • Title
1

Husqvarna 603000193

Nut, 5/16-24 Hex Head Cone

$

$

Not available

2

Husqvarna 603003069

Bolt, Brake Cluster Mounting

$

$

Not available

3

Husqvarna 603003175

Drum without Center Hole, Brake

$

$

Not available

4

Husqvarna 603003186

Cluster Assembly, Right

Note: (Passenger) Brake (includes items 5 through 15)

$

$

Not available

5

Husqvarna 603003038

Dust Cover

$

$

Not available

6

Husqvarna 603003044

Kit, Shoe Retainer

Note: (includes items 7 and 8)

$

$

Not available

7

Pin

$

$

Not available

8

Shoe Clamp Spring

$

$

Not available

9

Husqvarna 603003179

Lever Assembly, Self-Adjusting Brake, Right

Note: (Passenger)

$

$

Not available

10

Husqvarna 603003181

Package, Brake Spring, Self-Adjusting

$

$

Not available

11

Husqvarna 603003182

Adj Mechanism, S.A. Brakes, Right

Note: (Passenger)

$

$

Not available

12

Husqvarna 603003185

Package, Brake Shoe, Self-Adjusting

$125.99

$

In Stock, only 1 left!

0

13

Husqvarna 603003188

Plate, Washer, Brake, Self-Adjusting

$

$

Not available

14

Husqvarna 603003189

Washer, Brake, Self-Adjusting

$

$

Not available

15

Husqvarna 603003190

Plate Assembly, Right Brake Backing

$

$

Not available

16

Husqvarna 603003187

Cluster Assembly, Left Brake

Note: (includes items 17 through 27)

$

$

Not available

17

Husqvarna 603003038

Dust Cover

$

$

Not available

18

Husqvarna 603003044

Kit, Shoe Retainer

Note: (includes items 19 and 20)

$

$

Not available

19

Pin

$

$

Not available

20

Shoe Clamp Spring

$

$

Not available

21

Husqvarna 603003180

Lever Assembly, Self-Adjusting Brake, Left

$

$

Not available

22

Husqvarna 603003181

Package, Brake Spring, Self-Adjusting

$

$

Not available

23

Husqvarna 603003183

Adjusting Mechanism, Self-Adjusting Brake, Left

$

$

Not available

24

Husqvarna 603003185

Package, Brake Shoe, Self-Adjusting

$125.99

$

In Stock, only 1 left!

0

25

Husqvarna 603003188

Plate, Washer, Brake, Self-Adjusting

$

$

Not available

26

Husqvarna 603003189

Washer, Brake, Self-Adjusting

$

$

Not available

27

Husqvarna 603003191

Plate Assembly, Left Brake Backing

$

$

Not available
