HUV 4210 EXP - Husqvarna 4x2 Utility Vehicle, Electric (2006-11) Powerdrive 3 Battery Charger, Domestic Parts Diagram

4x2 Utility Vehicle, Electric

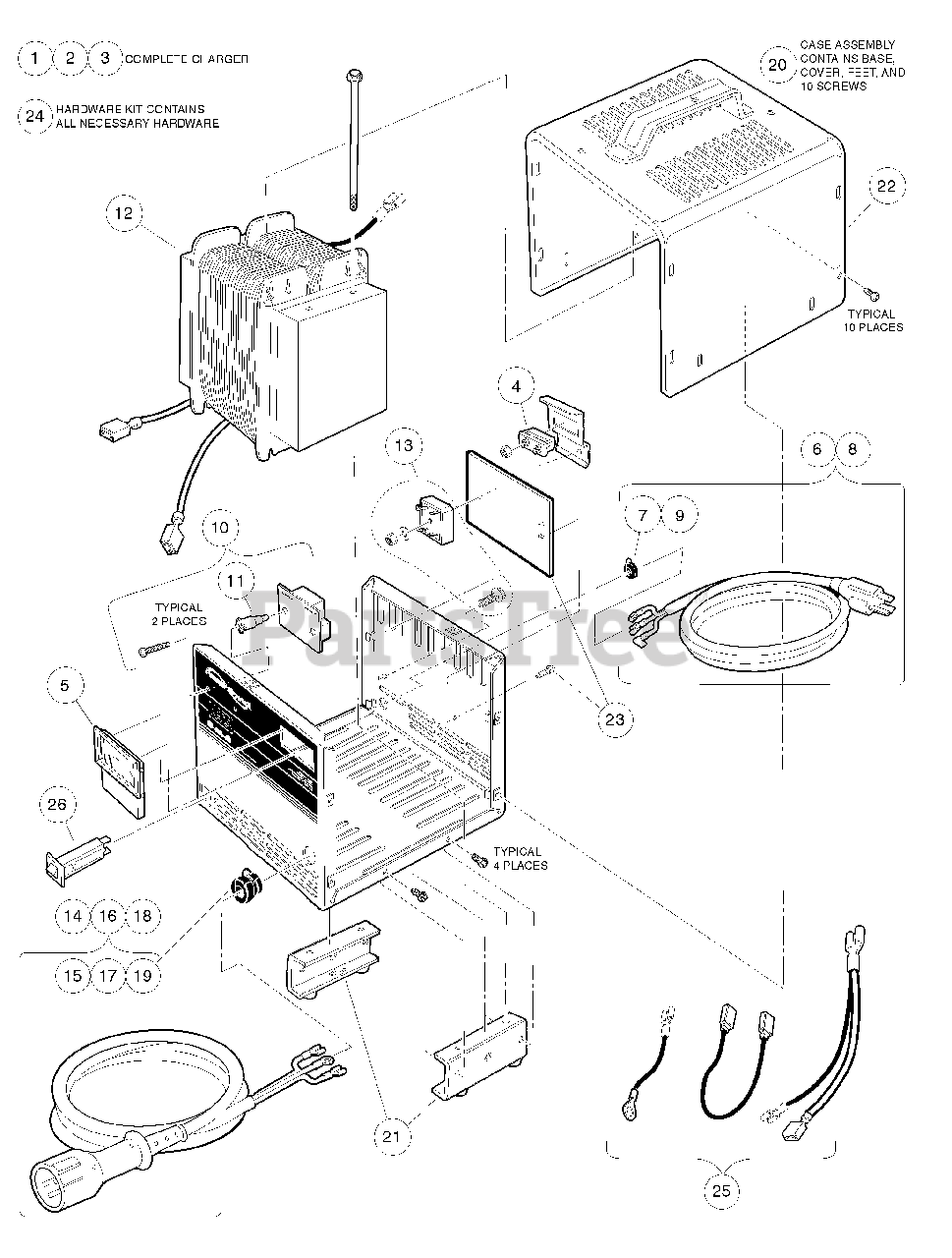

Powerdrive 3 Battery Charger, Domestic Parts Diagram

  • Title
1

Husqvarna 603004346

Charger, Pd3, 9Dc/6'Ac'

$

$

Not available

2

Husqvarna 603004347

Charger, Pd3, 12Dc/9'Ac'
(Superseded to 522718621)

$

$

Not available

3

Husqvarna 603004348

Charger, Pd3, 20Dc/9'Ac'

Note: (includes items 4 through 26)

$

$

Not available

4

Husqvarna 603003751

PD2 Fuse Asm

$

$

Not available

5

Husqvarna 603003752

PD2 Ammeter

$

$

Not available

6

Husqvarna 603004392

Kit, PD3 Cordset - AC 80"

Note: (includes item 7)

$

$

Currently unavailable

7

Husqvarna 603003753

PD2 AC Cord Bushing

$

$

Not available

8

Husqvarna 603004393

Kit, PD3 Cordset, - AC 114"

Note: (includes item 9)

$

$

Currently unavailable

9

Husqvarna 603003753

PD2 AC Cord Bushing

$

$

Not available

10

Husqvarna 603004395

Asm, PD3 Board Relay

Note: (includes item 11)

$

$

Not available

11

Husqvarna 603004394

PD3 Plastic Stand-Offs

$

$

Not available

12

Husqvarna 603004396

PD3 Transformer

$

$

Currently unavailable

13

Husqvarna 603004397

Kit, PD3 Diode Bridge

$

$

Not available

14

Husqvarna 603004398

PD3 Cordset - DC 113"

Note: (includes item 15)

$

$

Currently unavailable

15

Husqvarna 603003650

Bushing, DC Cord

$

$

Not available

16

Husqvarna 603004399

PD3 Cordset - DC 154"

Note: (includes item 17)

$

$

Currently unavailable

17

Husqvarna 603003650

Bushing, DC Cord

$

$

Not available

18

Husqvarna 603004400

PD3 Cordset - DC 205"

Note: (includes item 19)

$

$

Currently unavailable

19

Husqvarna 603003650

Bushing, DC Cord

$

$

Not available

20

Husqvarna 603004402

Asm, PD3 Case

Note: (includes items 21 and 22)

$

$

Currently unavailable

21

Husqvarna 603004401

Asm, PD3 Legs

$

$

Currently unavailable

22

Husqvarna 603004481

PD3Case Top

Note: (Includes Handle)

$

$

Currently unavailable

23

Husqvarna 603004403

Kit, PD3 Heat Sink

$

$

Currently unavailable

24

Husqvarna 603004404

Kit, PD3 Hardware

$

$

Currently unavailable

25

Husqvarna 603004405

Kit, PD3 Wires

$

$

Currently unavailable

26

Husqvarna 603002503

Circuit Breaker, 15-Amp/120-Volt

$

$

Not available
