HUV 4210 EXP - Husqvarna 4x2 Utility Vehicle, Electric (2006-11) Motor (Model EJ4-4001) Parts Diagram

4x2 Utility Vehicle, Electric

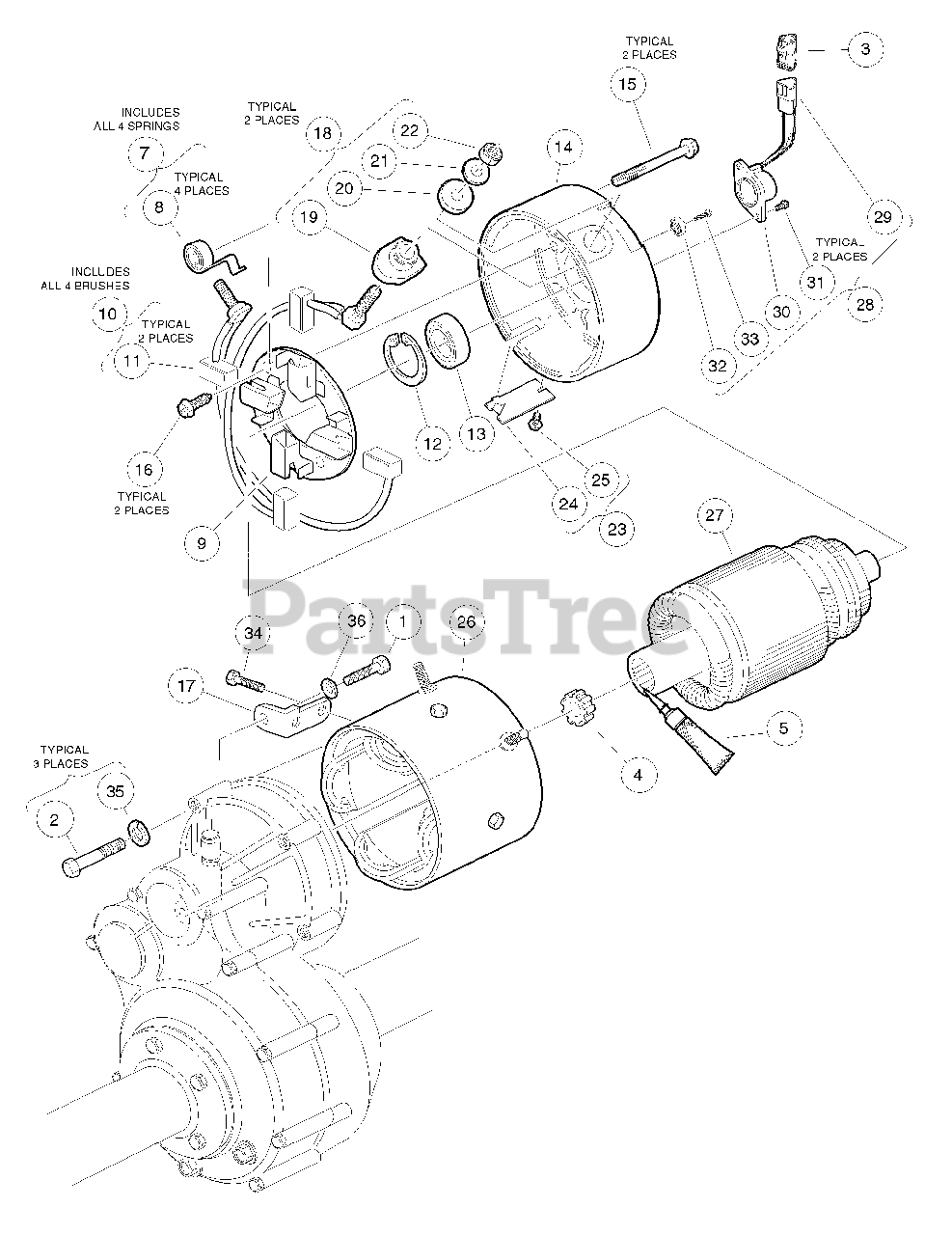

Motor (Model EJ4-4001) Parts Diagram

  • Title

1

Husqvarna 603000116

Screw, 5/16-18 X 1.00 Hex Cap

$

$

Not available

2

Husqvarna 603003651

Screw, 1/4-20 X 2.25 Hex Cap

$

$

Not available

3

Husqvarna 603003697

Kit, 3-Pin Wedge Lock

$

$

Not available

4

Husqvarna 603003734

Bumper, Drive Unit

$

$

Not available

5

Husqvarna 603003739

Lubricant, Moly-Teflon

Note: (Single-Use Tube)

$

$

Not available

6

Husqvarna 603003767

IQ Electric Motor, 48-VDC 3.3 hp

Note: (includes items 7 through 34)

$

$

Not available

7

Husqvarna 603003722

Spring Kit, Motor Brush

Note: (includes item 8)

$

$

Not available

8

Spring, Brush, S-g

$

$

Not available

9

Husqvarna 603003723

Brush Box Assembly

$

$

Not available

10

Husqvarna 603003724

Brush Kit, Motor

Note: (includes item 11)

$

$

Not available

11

Assembly, Brush and Terminal

$

$

Not available

12

Husqvarna 603003725

Ring, 2.24" Internal Retaining

$

$

Not available

13

Husqvarna 603003726

Bearing, Ball

$

$

Not available

14

Husqvarna 603003727

End Cap, Motor

$

$

Not available

15

Husqvarna 603003728

Screw, 1/4-20 X 2.25 Hex-Head Washer

$

$

Currently unavailable

16

Husqvarna 603003729

Screw, #8-32 X .5 Hex-Head

$

$

Not available

17

Husqvarna 603003730

L-Bracket, Motor

$

$

Not available

18

Husqvarna 603003731

Hardware Kit, Motor Terminal

Note: (includes items 19 through 22)

$

$

Not available

19

Bushing, Nylon

$

$

Not available

20

Washer, Nylon Flat

$

$

Not available

21

Washer, Flat, 5/16 Steel

$

$

Not available

22

Nut, Brass Hex, 5/16 - 18

$

$

Not available

23

Husqvarna 603003732

Plate Kit, Motor Cover

Note: (includes items 24 and 25)

$

$

Not available

24

Assembly, Cover Plate

$

$

Not available

25

Screw, #8-32 x 0.375, Taptite Thread

$

$

Not available

26

Husqvarna 603003764

Frame and Field Assembly

$

$

Not available

27

Husqvarna 603003765

Armature Assembly

$

$

Not available

28

Husqvarna 603003766

Kit, Speed Sensor

Note: (includes items 29 through 33)

$

$

Not available

29

Husqvarna 603003716

Kit, 3-Pin Wedge Lock

$

$

Not available

30

Sensor, Motor Speed, ADC

$

$

Not available

31

Screw, #8-32, Taptite Thread

$

$

Not available

32

Magnet, ADC Motor

$

$

Not available

33

Screw, 1/4-20 x 0.5

$

$

Not available

34

Bolt, 1/4 - 20 x 0.73 Thread-Forming

$

$

Not available

35

Husqvarna 603000058

Lockwasher, 1/4 Helical Split

$

$

Not available

36

Husqvarna 603000072

Lockwasher, 5/16 Split

$

$

Not available
