HUV 4210 EXP - Husqvarna 4x2 Utility Vehicle, Electric (2006-11) Front Suspension, Upper - Vehicles With Two-Wheel Brakes Parts Diagram

4x2 Utility Vehicle, Electric

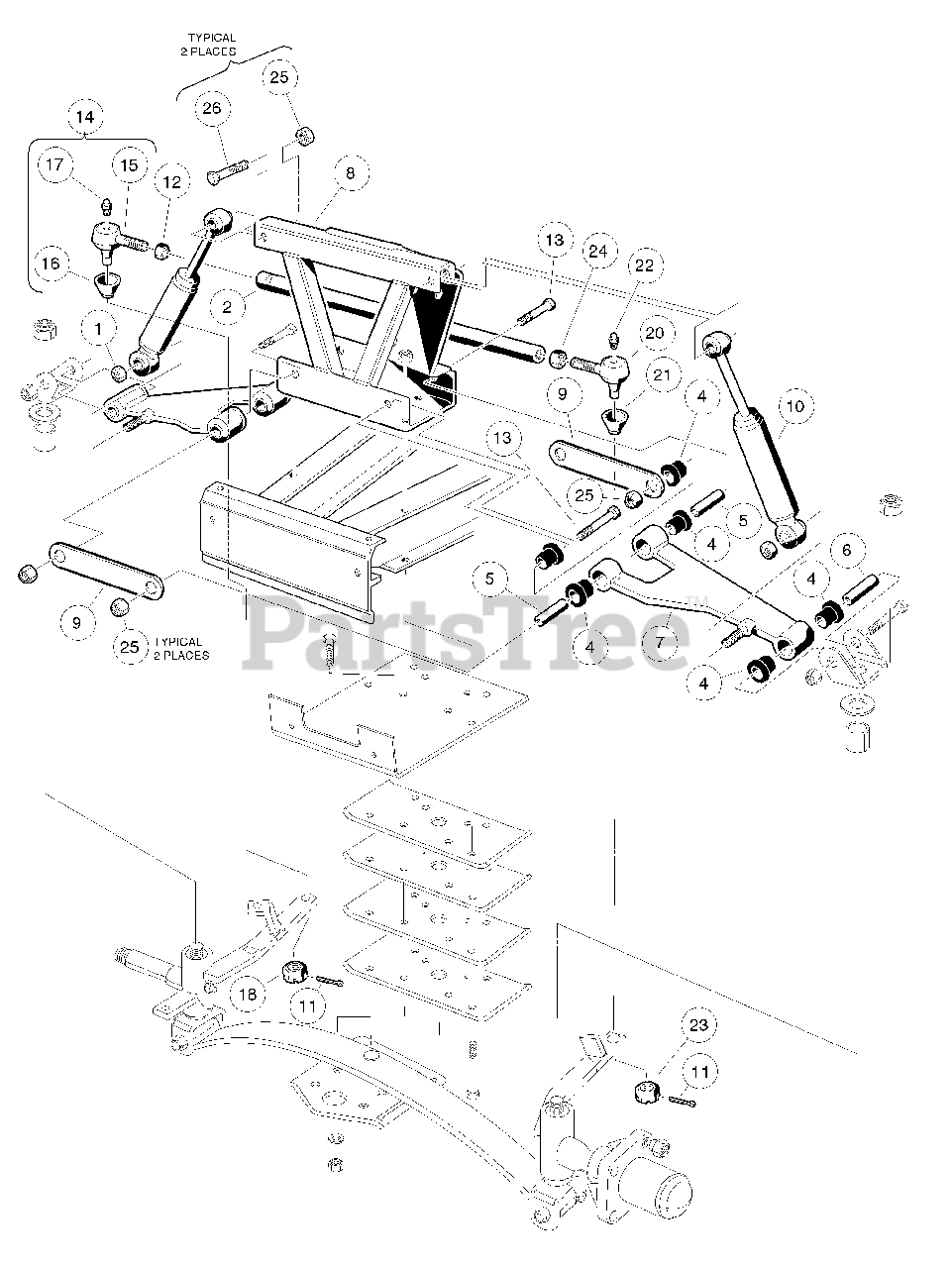

Front Suspension, Upper - Vehicles With Two-Wheel Brakes Parts Diagram

  • Title
1

Husqvarna 603000101

Locknut, 3/8-16 Dimpled

$

$

Not available

$

$

Not available

3

Husqvarna 603003632

Sub-Assembly, Delta A-Plate

Note: (includes items 4 through 7)

$

$

Not available

4

Husqvarna 603000290

Bushing, Urethane

$

$

Not available

5

Husqvarna 603003087

Sleeve, Delta Inner

$3.49

$

In Stock, only 1 left!

0

6

Husqvarna 603003088

Sleeve, Delta Outer

$

$

Not available

7

Delta A-Plate

$

$

Not available

8

Husqvarna 603003091

Delta Shock and Gear Support Assembly

$

$

Not available

9

Husqvarna 603003160

A-Plate Strap

$

$

Not available

10

Husqvarna 603004377

Shock Absorber, Front, Common

$

$

Not available

11

Husqvarna 603000063

Pin, 3/32 X 1.00 Sq Cut Cotter

$

$

Not available

12

Husqvarna 603003303

Nut, 1/2-20 Hex

$

$

Not available

13

Husqvarna 603003304

Screw, 3/8-16 X 2.25 Hx Hd Cap

$

$

Not available

14

Husqvarna 603002039

Ball Joint, Right-Hand

Note: (includes items 15 through 18)

$

$

Not available

15

Socket, RH Vertical

$

$

Not available

16

Husqvarna 603003047

Seal, Vertical Socket Dust

$

$

Not available

17

Husqvarna 603000264

Fitting, 1/4-28 Thread-Forming Grease

$4.99

$

In Stock, only 1 left!

0

18

Husqvarna 603003309

Nut, 3/8-24 UNF Hex

$

$

Not available

19

Husqvarna 603002040

Ball Joint, Left

Note: (includes items 20 through 23)

$

$

Not available

20

Socket, LH Vertical

$

$

Not available

21

Husqvarna 603003047

Seal, Vertical Socket Dust

$

$

Not available

22

Husqvarna 603000264

Fitting, 1/4-28 Thread-Forming Grease

$4.99

$

In Stock, only 1 left!

0

23

Husqvarna 603003309

Nut, 3/8-24 UNF Hex

$

$

Not available

24

Husqvarna 603003308

Nut, 1/2-20 Hex, Left-Hand Thread

$

$

Not available

25

Husqvarna 603000095

Locknut, 3/8-16 Hex

$

$

Not available

26

Husqvarna 603003311

Bolt, 3/8-16 X 1.75 Hex

$

$

Not available
