HUV 4210 EXP - Husqvarna 4x2 Utility Vehicle, Electric (2006-11) Front Suspension, Lower - Vehicles with Two-Wheel Brakes Parts Diagram

4x2 Utility Vehicle, Electric

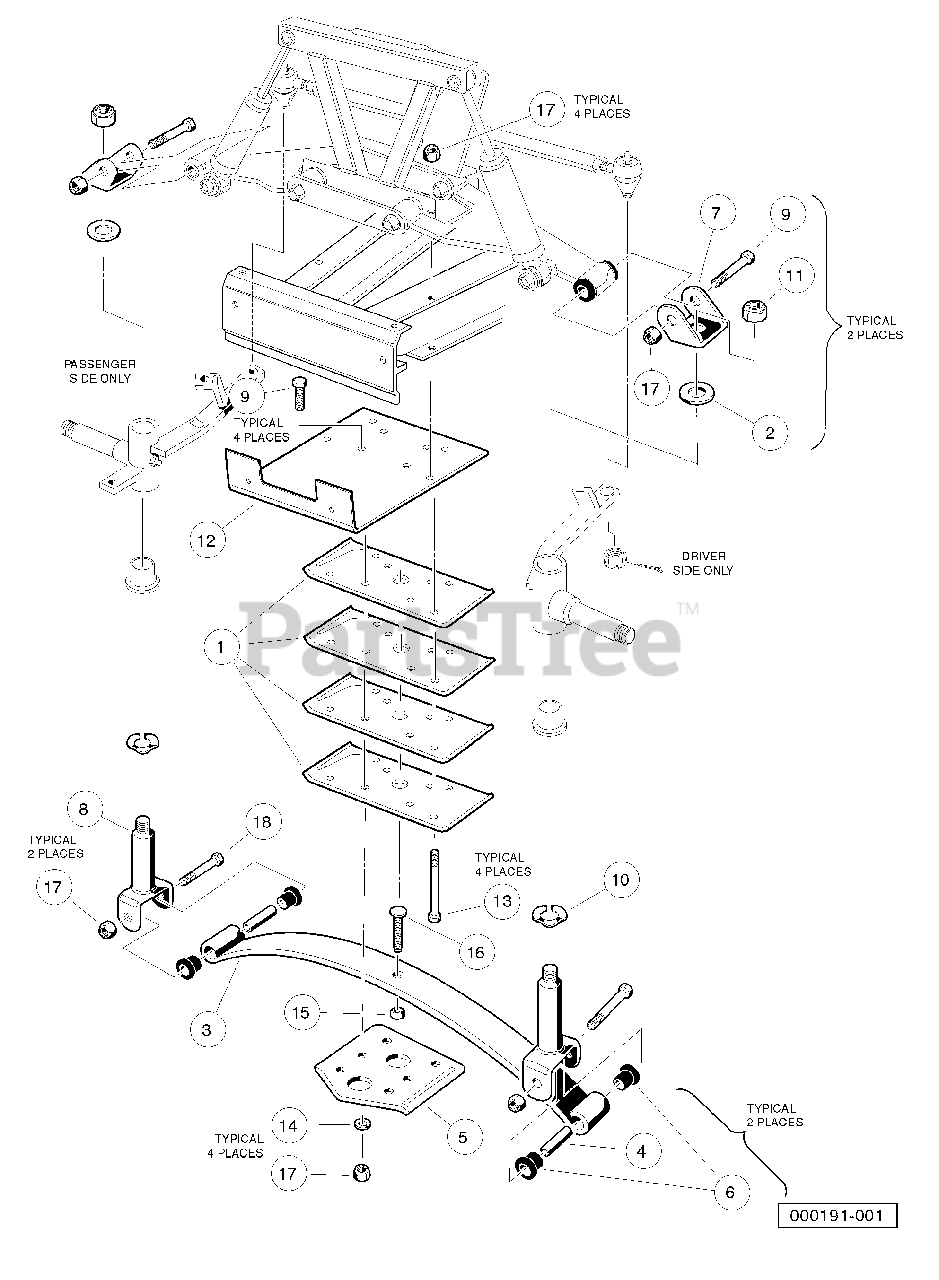

Front Suspension, Lower - Vehicles with Two-Wheel Brakes Parts Diagram

  • Title

1

Husqvarna 603003034

Plate, Spring Mount

$

$

Not available

2

Husqvarna 603000105

Bearing, Thrust

$

$

Not available

3

Husqvarna 603003049

Spring, Front Leaf

$

$

Not available

4

Husqvarna 603000136

Bushing, Steel

$

$

Not available

5

Husqvarna 603003075

Plate, Front Spring Retainer

$

$

Not available

6

Husqvarna 603000263

Bushing, Urethane

$

$

Not available

7

Husqvarna 603003090

Clevis, Delta Upper

$

$

Not available

8

Husqvarna 603003092

King Pin Assembly

$

$

Not available

9

Husqvarna 603000291

Screw, 3/8-16 X 2.75 Hx Hd Cap

$

$

Not available

10

Husqvarna 603000292

Washer, 1.125 Od Wave

$

$

Not available

11

Husqvarna 603000578

Locknut, 1/2-20 Nylon Insert

$

$

Not available

12

Husqvarna 603003297

Support, Brush Guard

$

$

Not available

13

Husqvarna 603002058

Screw, 3/8-16 X 5.50 Hx Hd Cap

$

$

Not available

14

Husqvarna 603000056

Washer, Lock, Hel Sp 3/8 Reg

$

$

Not available

15

Husqvarna 603003305

Nut, Hex 3/8-16

$

$

Not available

16

Husqvarna 603003310

Screw, Eccentric Adjustment

$

$

Not available

17

Husqvarna 603000095

Locknut, 3/8-16 Hex

$

$

Not available

18

Husqvarna 603000096

Screw, 3/8-16 X 3.375 Hex Cap

$

$

Not available
