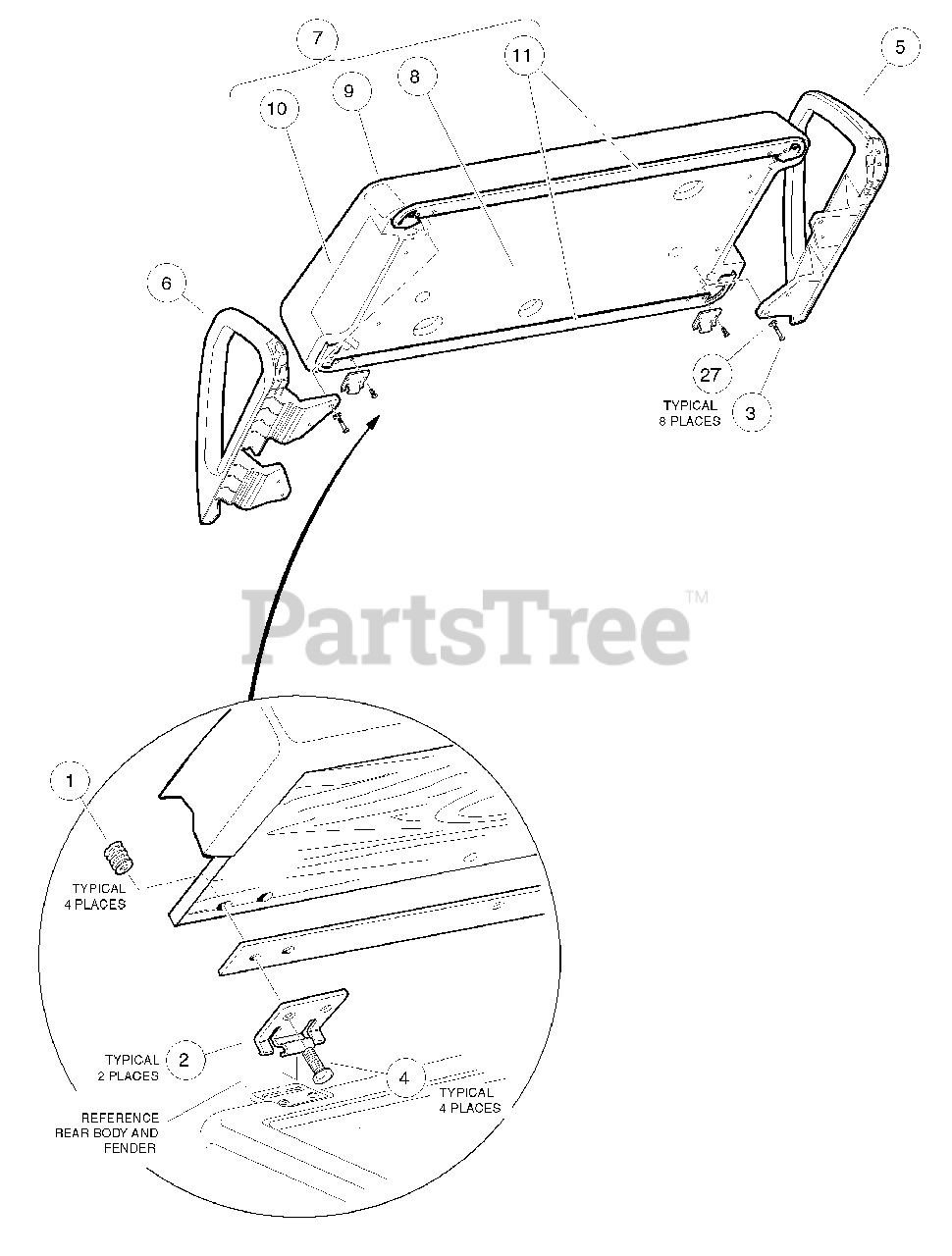

HUV 4210 EXP - Husqvarna 4x2 Utility Vehicle, Electric (2006-11) Front Seat Bottom And Armrests Parts Diagram

4x2 Utility Vehicle, Electric

Front Seat Bottom And Armrests Parts Diagram

  • Title

1

Husqvarna 603002506

Insert - Wood

$

$

Not available

2

Husqvarna 603000125

Hinge Plate

$

$

Not available

3

Husqvarna 603003153

Screw, 1/4-20 X 1.50 Hex-Head Cap

$

$

Not available

4

Husqvarna 603003240

Screw, 1/4-20 X 0.75 Hex-Head Cap

$

$

Not available

5

Husqvarna 603003247

Armrest, Passenger

Note: (right)

$

$

Not available

6

Husqvarna 603003248

Armrest, Driver

Note: (left)

$

$

Not available

7

Husqvarna 603004368

Seat Bottom Assembly, Buff

Note: (includes items 8 through 11) Sub-components contained in items 12, 17, and 22 are the same as those shown for itern 7 as those shown for item 7, except for the vinyl seat covers.

$

$

Not available

8

Plywood Assy

$

$

Not available

9

Husqvarna 603004367

Vinyl Cover, Seat Bottom, Buff

$

$

Currently unavailable

10

Foam, Seat

$

$

Not available

11

Husqvarna 603003250

Gasket, Seat

$22.99

$

In Stock, only 1 left!

0

12

Husqvarna 603004370

Seat Bottom Assembly, White

Note: (includes items 13 through 16) Sub-components contained in items 12, 17, and 22 are the same as those shown for itern 7 as those shown for item 7, except for the vinyl seat covers.

$

$

Currently unavailable

13

Plywood Assy

$

$

Not available

14

Husqvarna 603004369

Vinyl Cover, Seat Bottom, White

$

$

Currently unavailable

15

Foam, Seat

$

$

Not available

16

Husqvarna 603003250

Gasket, Seat

$22.99

$

In Stock, only 1 left!

0

17

Husqvarna 603004372

Seat Bottom Assembly, Black

Note: (includes items 18 through 21) Sub-components contained in items 12, 17, and 22 are the same as those shown for itern 7 as those shown for item 7, except for the vinyl seat covers.

$

$

Currently unavailable

18

Plywood Assy

$

$

Not available

19

Husqvarna 603004371

Vinyl Cover, Seat Bottom, Black

$

$

Currently unavailable

20

Foam, Seat

$

$

Not available

21

Husqvarna 603003250

Gasket, Seat

$22.99

$

In Stock, only 1 left!

0

22

Husqvarna 603002258

Seat Bottom Assembly, Gray

Note: (includes items 23 through 26) Sub-components contained in items 12, 17, and 22 are the same as those shown for itern 7 as those shown for item 7, except for the vinyl seat covers.

$

$

Not available

23

Plywood Assy

$

$

Not available

24

Husqvarna 603002259

Vinyl Cover, Seat Bottom, Gray

$

$

Not available

25

Foam, Seat

$

$

Not available

26

Husqvarna 603003250

Gasket, Seat

$22.99

$

In Stock, only 1 left!

0

27

Husqvarna 603000054

Washer, 1/4 Type A Narrow Flat

$

$

Not available
