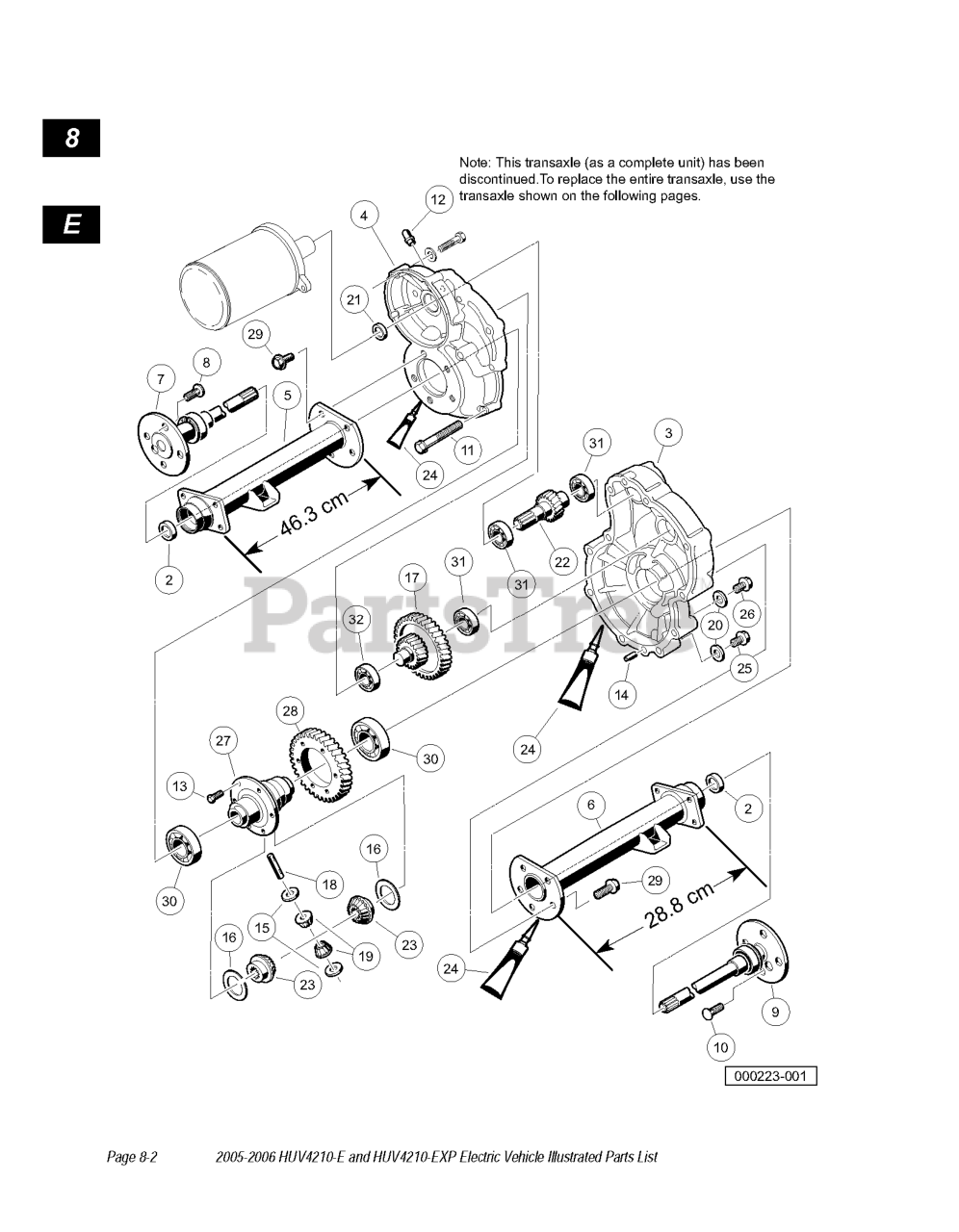

HUV 4210 E - Husqvarna 4x2 Utility Vehicle, Electric (2008-04) TRANSMISSION Parts Diagram

4x2 Utility Vehicle, Electric

TRANSMISSION Parts Diagram

  • Title

5

Husqvarna 603003678

AXLE TUBE ASSY, RIGHT HAND

$

$

Not available

6

Husqvarna 603003679

AXLE TUBE ASSY, LEFT HAND

$

$

Not available

8

Husqvarna 603003700

LUG STUD

$

$

Not available

29

Husqvarna 603003759

SCREW FLG HD M10X1.5X30

$

$

Not available

25

Husqvarna 603003718

PLUG M14-1.5X12MM MAGNETIC

$

$

Not available

17

Husqvarna 603003689

INTERMEDIATE SHAFT ASSEMBLY

$

$

Not available

27

Husqvarna 603003756

HOUSING DIFFERENTIAL 6 BOLT

$

$

Not available

23

Husqvarna 603003706

GEAR, DIFFERENTIAL

$

$

Not available

18

Husqvarna 603003698

PIN, 15.99MM X 88.7MM DOWEL

$

$

Not available

19

Husqvarna 603003702

GEAR, DIFFERENTIAL IDLER

$

$

Not available

11

Husqvarna 603003683

SCREW, M8-1.25 X 60MM HEX HEAD

$

$

Not available

12

Husqvarna 603003684

BREATHER

$

$

Not available

31

Husqvarna 603000076

BEARING

$

$

Not available

30

Husqvarna 603000075

INNER AXLE, TUBE BEARING

$

$

Not available

32

Husqvarna 603002961

BEARING

$

$

Not available

24

Husqvarna 603000607

SEALANT

Note: TRANSAXLE CASE

$

$

Not available

20

Husqvarna 603003703

GASKET

$

$

Not available

10

Husqvarna 603003700

LUG STUD

$

$

Not available

16

Husqvarna 603003688

WASHER THRUST

$

$

Not available

13

Husqvarna 603003685

SCREW M10-1.25 X 25MM

$

$

Not available

15

Husqvarna 603003687

WASHER, THRUST

$

$

Not available

26

Husqvarna 603003719

PLUG M14-1.5X12MM HEX

$

$

Not available

9

Husqvarna 603003681

AXLE ASSEMBLY, LEFT

$

$

Not available

22

Husqvarna 603003705

SHAFT, INPUT

$

$

Not available

14

Husqvarna 603003686

PIN, 11MM OD X 8.5MM ID X 10MM

$

$

Not available

2

Husqvarna 603003062

AXLE SHAFT OIL SEAL

$

$

Not available

28

Husqvarna 603003757

GEAR DIFFERENTIAL 6 BOLT

$

$

Not available

3

Husqvarna 603003676

GEAR CASE LEFT HAND

$

$

Not available

7

Husqvarna 603003680

AXLE ASSEMBLY RIGHT

$

$

Not available

21

Husqvarna 603003704

SEAL LIP

$

$

Not available

4

Husqvarna 603003677

GEAR CASE, RIGHT HAND

$

$

Not available
