HUV 4210 E - Husqvarna 4x2 Utility Vehicle, Electric (2006-11) OBC, Controller, and Solenoid Parts Diagram

4x2 Utility Vehicle, Electric

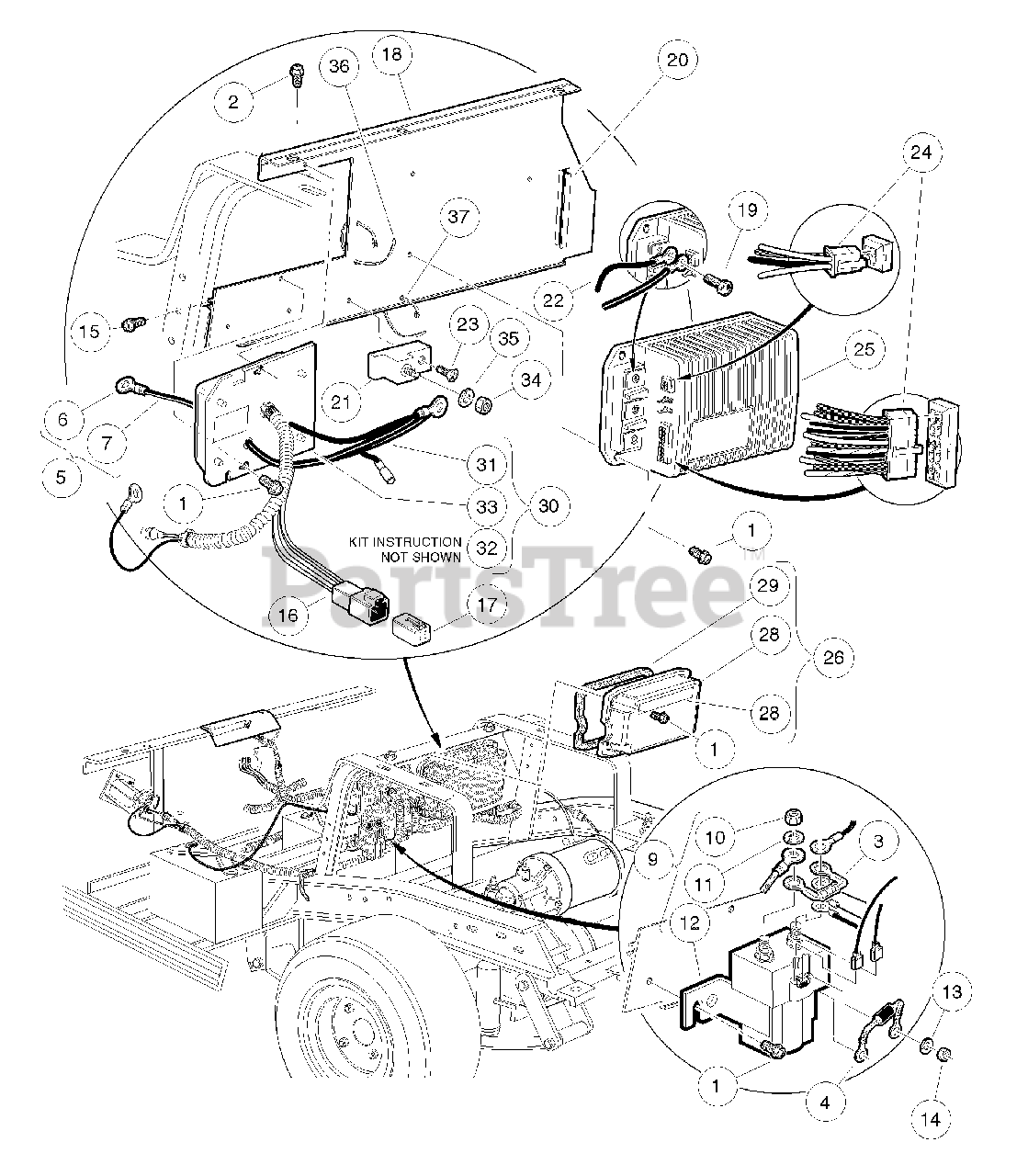

OBC, Controller, and Solenoid Parts Diagram

  • Title

1

Husqvarna 603000134

Screw, 1/4 X 0.625 Hex-Head

$

$

Not available

2

Husqvarna 603000220

Screw, 5/16-18 X 0.75 Thread-Forming

$

$

Not available

3

Husqvarna 603003653

Resistor Assembly

$

$

Not available

4

Husqvarna 603000238

Diode

$

$

Not available

5

Husqvarna 603003665

Ground Wire Kit, 48-Volt

Note: (includes items 6 through 8)

$

$

Not available

6

Compression Lug

$

$

Not available

7

Wire Assembly, Black

$

$

Not available

8

Husqvarna 603002963

Tie Wrap, 8" Nylon

$

$

Not available

9

Husqvarna 603003692

Solenoid, 48-Volt

Note: (includes items 10 through 14)

$

$

Not available

10

Husqvarna 603000142

Nut, M8-1.25 Hex

$

$

Not available

11

Husqvarna 603000184

Lockwasher, 8mm Split

$

$

Not available

12

Solenoid, 48-Volt

$

$

Not available

13

Washer, Lock

$

$

Not available

14

Nut

$

$

Not available

15

Husqvarna 603003221

Screw, 5/16-18 X 1.25 Thrd Frm

$

$

Not available

16

Husqvarna 603003711

Kit, 6-Pin Wedge Lock

$

$

Not available

17

Husqvarna 603003712

Kit, 6-Pin Receptacle and Wedge Lock

$

$

Not available

18

Husqvarna 531307158

Plate, Component Mounting

$

$

Not available

19

Husqvarna 603003735

Bolt, Controller, Terminal

$

$

Not available

20

Extrusion, Cover Support

$

$

Not available

21

Husqvarna 603003740

Terminal Block

$

$

Not available

22

Husqvarna 603003741

Wire Assy, #10 Black

$

$

Not available

23

Husqvarna 603003742

Screw, #10-24 X 0.75 Phillips, Thread-Forming

$

$

Not available

24

Husqvarna 603003743

Kit, Connector, IQ Controller

$

$

Not available

25

Husqvarna 531307366

Controller, IQ, 48-volt

$

$

Not available

26

Husqvarna 603004406

Cover Asm - Controller

Note: (includes items 27 through 29)

$

$

Not available

27

Husqvarna 531307120

Decal, Component Cover

$

$

Not available

28

Husqvarna 603004382

Cover - Controller, Deep

$

$

Not available

29

Husqvarna 603004383

Gasket - Controller Cover

$

$

Not available

30

Husqvarna 603004386

Kit, OBC, DS and Util IQ

Note: (includes items 31 through 33)

$

$

Not available

31

Husqvarna 603004384

Asm Wire #10blk Ground

$

$

Currently unavailable

32

Husqvarna 603004385

Instr Obc Ds Pre 01-28-2007

$

$

Currently unavailable

33

Asm, Obc, Iq, V3.0

$

$

Not available

34

Husqvarna 603000066

Nut, 5/16-18 Hex

$

$

Not available

35

Husqvarna 603000072

Lockwasher, 5/16 Split

$

$

Not available

36

Husqvarna 603000093

Tie Wrap, 11" Nylon

$

$

Not available

37

Husqvarna 603002963

Tie Wrap, 8" Nylon

$

$

Not available
