HUV 4210 E - Husqvarna 4x2 Utility Vehicle, Electric (2006-11) Forward/Reverse Switch, Tow/Run Switch Parts Diagram

4x2 Utility Vehicle, Electric

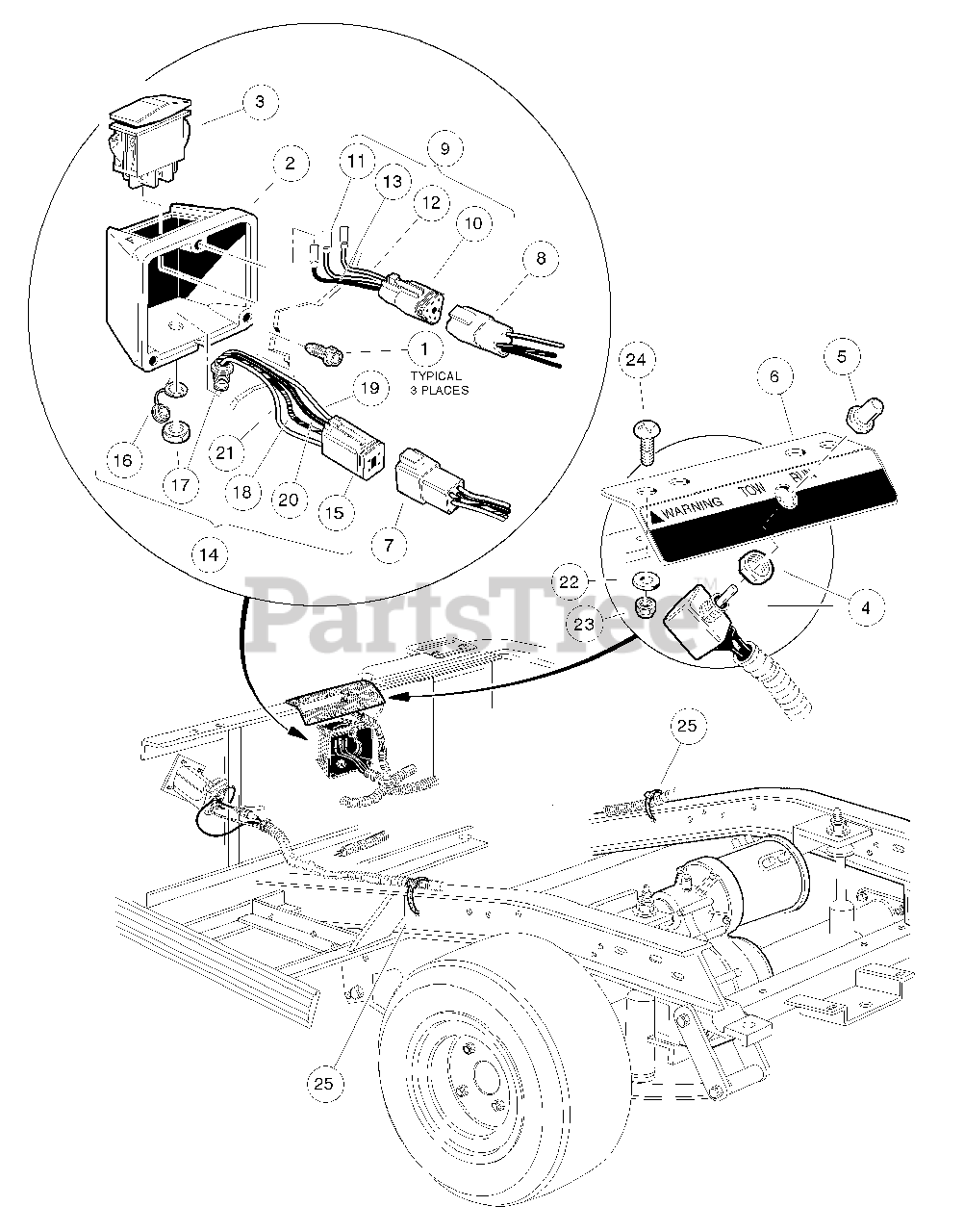

Forward/Reverse Switch, Tow/Run Switch Parts Diagram

  • Title

1

Husqvarna 603000134

Screw, 1/4 X 0.625 Hex-Head

$

$

Not available

2

Husqvarna 603003673

Case, FNR Switch

$

$

Not available

3

Husqvarna 603003674

Switch, Rocker, Single-Pole

$

$

Not available

4

Husqvarna 603003690

Switch Assembly, Tow/Run

$

$

Not available

5

Husqvarna 603003691

Boot, Switch

$

$

Not available

6

Husqvarna 603003701

Bracket, Tow/Run Switch Mounting

$

$

Not available

7

Husqvarna 603003709

Kit, 4-Pin Receptacle and Wedge Lock

$

$

Not available

8

Husqvarna 603003716

Kit, 3-Pin Wedge Lock

$

$

Not available

9

Husqvarna 603003744

Wire Assembly, FNR Switch

Note: (includes items 10 through 13)

$

$

Not available

10

Husqvarna 603003697

Kit, 3-Pin Wedge Lock

$

$

Not available

11

Wire Assembly, #18 Blue

$

$

Not available

12

Wire Assembly, #18 Orange

$

$

Not available

13

Wire Assembly, #18 Brown

$

$

Not available

14

Husqvarna 603003745

Wire Assembly, IQDM Port

Note: (includes items 15 through 21)

$

$

Not available

15

Husqvarna 603003710

Kit, 4-Pin Wedge Lock

$

$

Not available

16

Husqvarna 603003733

Dust Cap

$

$

Not available

17

Connector Mount, Four-Pin

$

$

Not available

18

Wire Assembly, #18 Red/Yellow

$

$

Not available

19

Wire Assembly, #18 Black/Yellow

$

$

Not available

20

Wire Assembly, #18 Blue/Yellow

$

$

Not available

21

Wire Assembly, #18 Green/Yellow

$

$

Not available

22

Husqvarna 603000054

Washer, 1/4 Type A Narrow Flat

$

$

Not available

23

Husqvarna 603000089

Locknut, 1/4-20 Nylon Insert

$

$

Not available

24

Husqvarna 603000090

Screw, 1/4-20 X 0.75 Truss-Head Machine

$

$

Not available

25

Husqvarna 603002963

Tie Wrap, 8" Nylon

$

$

Not available
