HUV 4210 E - Husqvarna 4x2 Utility Vehicle, Electric (2006-11) Battery Charger Receptacle Parts Diagram

4x2 Utility Vehicle, Electric

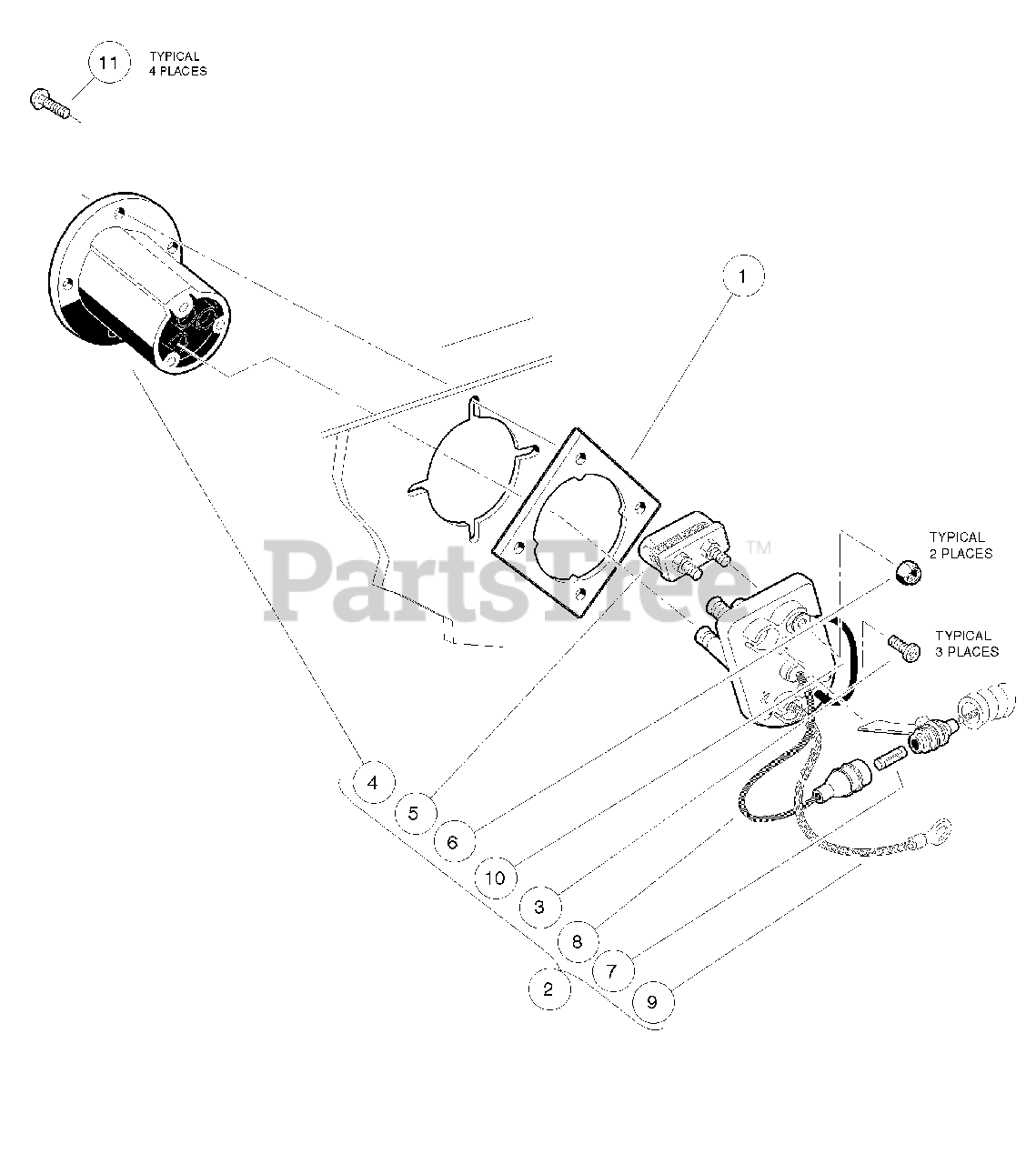

Battery Charger Receptacle Parts Diagram

  • Title

1

Husqvarna 603003660

Plate, Receptacle Backing

$

$

Not available

2

Husqvarna 603003661

Fuse and Receptacle Assembly

Note: (includes items 3 through 10)

$

$

Not available

3

Husqvarna 603003655

Screw, #8 X 5/8 Phillips Pan-Head Type AB

$

$

Not available

4

Husqvarna 603003658

Receptacle

$

$

Not available

5

Husqvarna 603003659

Fuse Assembly

Note: (includes item 6)

$

$

Not available

6

Husqvarna 603000171

Locknut, #10-32 Nylon Insert

$

$

Not available

7

Husqvarna 603003675

Fuse, 3/8-Amp

$

$

Not available

8

Wire Assembly, Sense Lead, Gray

$

$

Not available

9

Wire Assembly, #10 Red

$

$

Not available

10

Wire Assembly, #10 Black

$

$

Not available

11

Husqvarna 603000506

Screw, #7-19 X 0.625 Phillips Pan-Head Tap

$

$

Not available
