HUCA 80220 - Husky Pressure Washer Figure B Parts Diagram

Pressure Washer

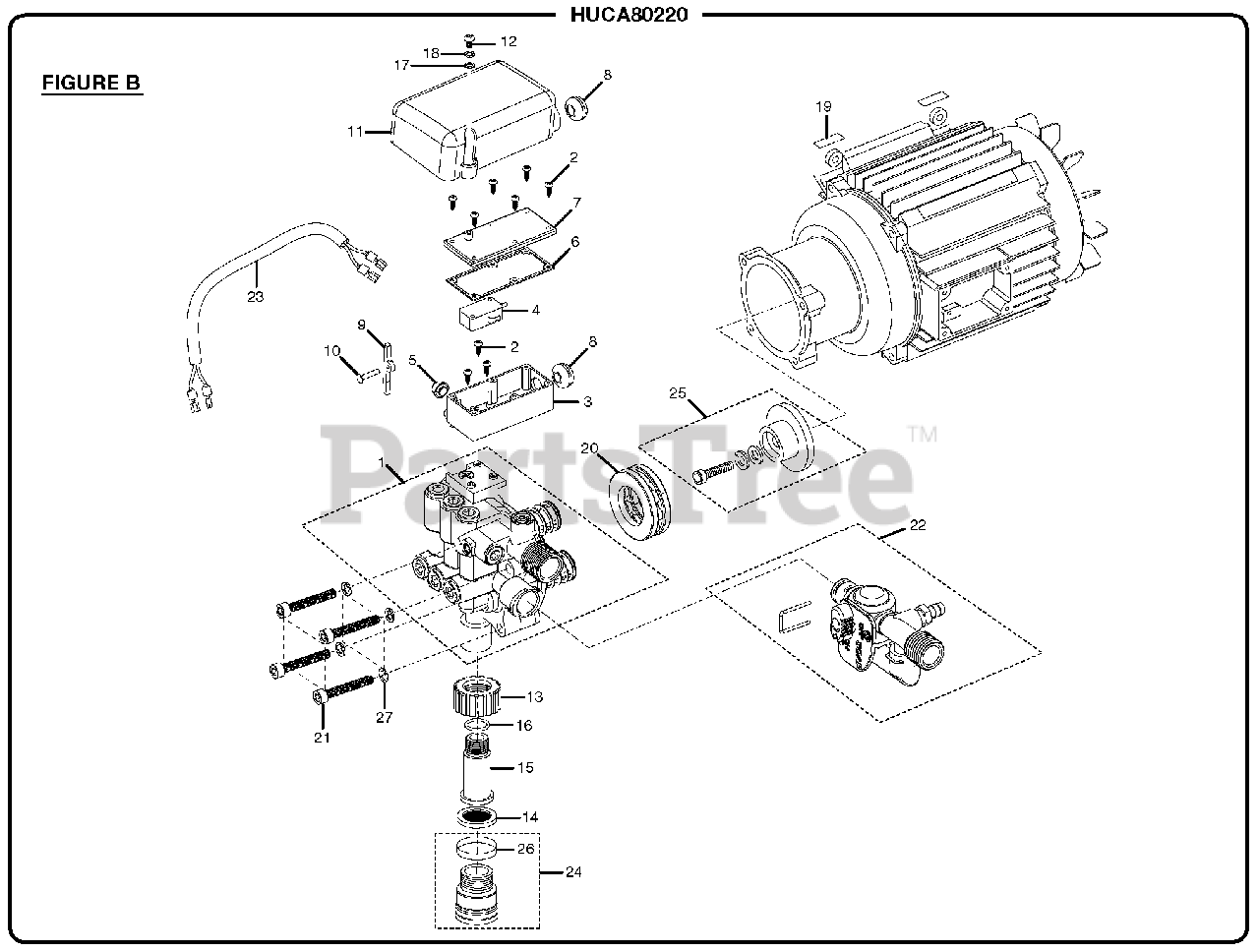

Figure B Parts Diagram

  • Title

1

Homelite 31116301G

Pump Assembly

$

$

Not available

2

Homelite 32202301G

Screw (M2.9 x 10 mm)

$

$

Not available

3

Homelite 34108301G

Switch Box

$

$

Not available

4

Homelite 36301301G

Stop Switch

$

$

Not available

5

Homelite 34208301G

Switch Box Seal

$

$

Not available

6

Homelite 34209301G

Switch Box Gasket

$

$

Not available

7

Homelite 34109301G

Switch Box Cover

$

$

Not available

8

Homelite 34210301G

Grommet

$

$

Not available

9

Homelite 33301301G

Stop Switch Lever

$

$

Not available

10

Homelite 32901301G

Stop Switch Lever Pin

$

$

Not available

11

Homelite 34110301G

Stop Switch Protective Cover

$

$

Not available

12

Homelite 3220848G

Screw (M4 x 10 mm)

$

$

Not available

13

Homelite 34111301G

Hose Connector

$

$

Not available

14

Homelite 31901301G

Inlet Filter

$

$

Not available

15

Homelite 34112301G

Hose Adaptor

$

$

Not available

16

Homelite 34213301G

O-Ring

$

$

Not available

17

Homelite 32903301G

Washer

$

$

Not available

18

Homelite 32911301G

Lock Washer

$

$

Not available

19

Homelite 36101301G

Induction Motor Assembly

$

$

Not available

20

Homelite 32101301G

Bearing
(Superseded to 678289009)

$

$

Not available

21

Homelite 32205301G

Screws (M6 x 45 mm)

$

$

Not available

22

Homelite 31107301G

Soap Dispenser Assembly

$

$

Not available

23

Homelite 32205301G

Stop Switch Wiring Harness Assembly

$

$

Not available

24

Homelite 31127301G

Backflow Preventer (Inc. Key 26)

$

$

Not available

25

Homelite 31126301G

Wobble Plate w/Screw

$

$

Not available

26

Homelite 940830002

Backflow Preventer Label

$

$

Currently unavailable

27

Homelite 3290150G

Lock Washer (M6)

$

$

Not available
