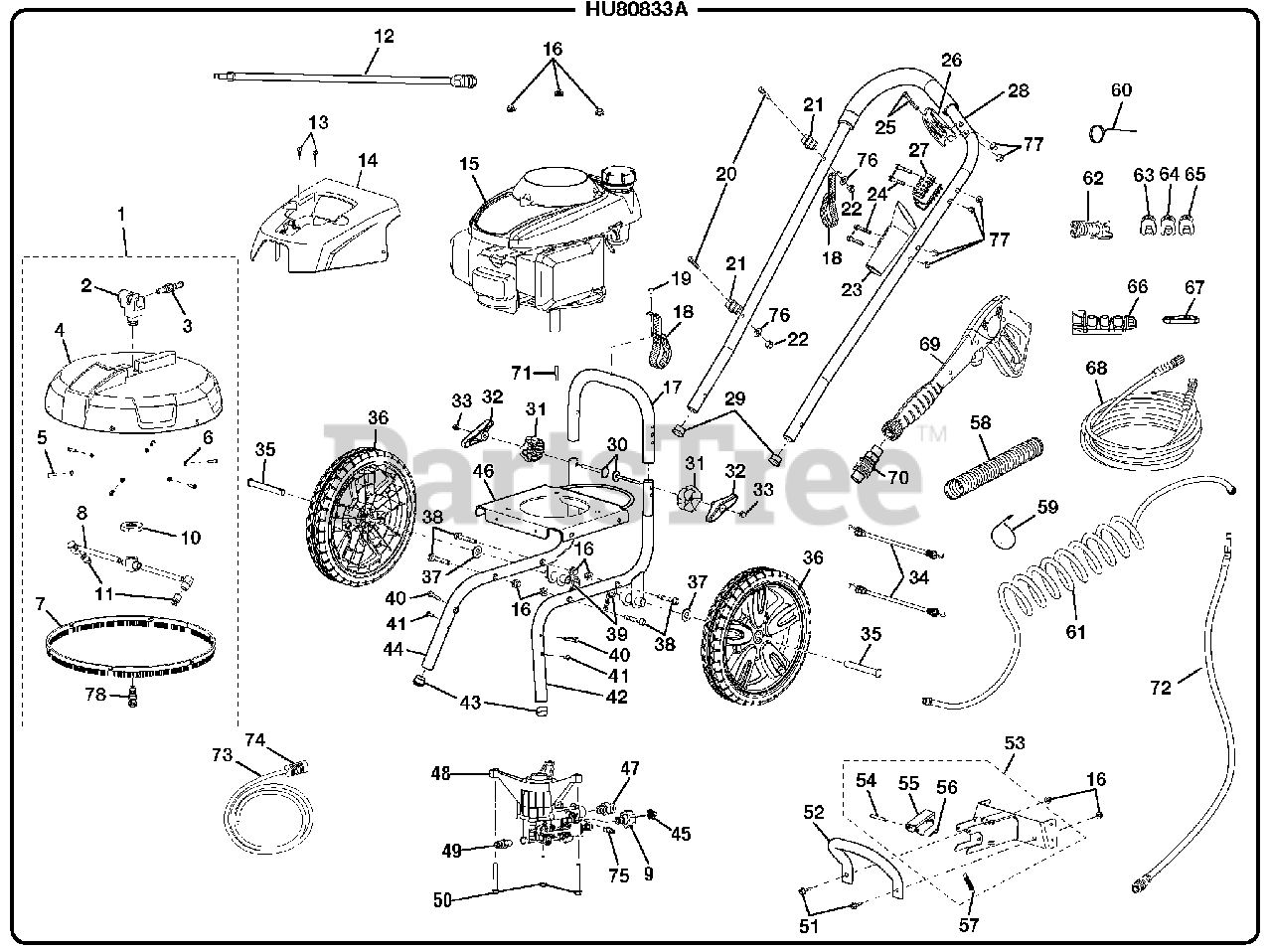

HU 80833 A - Husky Pressure Washer General Assembly Parts Diagram

Pressure Washer

General Assembly Parts Diagram

  • Title

1

Homelite 308471015

Deck Assembly (Inc. Key Nos. 2-8, 10-11, 78-81 and 85)

$

$

Not available

2

Homelite 308998001

Deck Pivot Assembly

$

$

Not available

3

Homelite 678557001

1/8 Quick Connect (BSPP)

$11.99

$

In Stock, only 1 left!

0

4

Homelite 310709001

Deck w/Brush Assembly (Inc. Key Nos. 4-7 78-81 and 85)
(Superseded to 308471015)

$

$

Not available

5

Homelite 660976002

Bolt (M5 x 16 mm, Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 678390001

Nut (M5)

$

$

Not available

7

Homelite 518752001

Deck Brush Skirt

$

$

Not available

8

Homelite 308996003

Deck Wash Nozzle Assembly

$

$

Currently unavailable

9

Homelite 308861003

Inlet Tube

$21.99

$

In Stock, only 3 left!

0

10

Homelite 678635001

Nut (M22)

$2.99

$

Usually ships in 3-7 days

0

11

Homelite 678548002

Nozzle w/015 Jet (1/8 NPT)

$

$

Currently unavailable

12

Homelite 308494015

Wand Assembly
(Superseded to 308494058)

$

$

Not available

13

Homelite 661569001

Screw (12-24)

$

$

Not available

14

Homelite 310710001

Front Shroud Assembly (Inc. Key Nos. 82-84)

$

$

Not available

15

Honda Engine

Note: (See Honda Engine Manual)

$

$

Not available

16

Homelite 678774001

Lock Nut (M8 x 1.25 mm)

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 310708001

Frame Connector Assemby (Inc. Key Nos. 18, 19)

$

$

Not available

18

Homelite 308652002

Hose Storage Strap
(Superseded to 308652001)

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 660733003

Screw (12-14 x 1/2 in., Pan Hd.)

$

$

Not available

20

Homelite 660938004

Bolt (M5 x 40 mm)

$

$

Not available

21

Homelite 678632001

Spring Clip

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 678390001

Lock Nut (M5)

$

$

Not available

23

Homelite 519002001

Lower Trigger Handle Holder

$

$

Not available

24

Homelite 660760002

Screw (1/4-20 x 45 mm, Truss Hd.)

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 660643008

Screw (1/4-20 x 40 mm, Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 519821001

Trigger Handle Lock

$

$

Not available

27

Homelite 519820001

Upper Trigger Handle Holder

$

$

Not available

28

Homelite 310702002

Upper Handle Assembly (Inc. Key No. 29)

$

$

Currently unavailable

29

Homelite 518992001

End Cap (25 mm)

$

$

Not available

30

Homelite 661568001

Carriage Bolt (1/4-20 x 88.5 mm)

$2.99

$

Usually ships in 3-7 days

0

31

Homelite 519004001

Handle Spacer

$

$

Not available

32

Homelite 518190001

Knob Assembly

$

$

Not available

33

Homelite 678142001

Acorn Nut (Centerlock)

$

$

Not available

34

Homelite 308307001

Bungee Cord Assembly

$

$

Not available

35

Homelite 620599001

Axle (D13.3 x 95)
(Superseded to 620599007)

$4.49

$

Usually ships in 3-7 days

0

36

Homelite 308451004

Wheel (12 in. x 2 in.)

$

$

Not available

37

Homelite 638275002

Washer (1/2 in.)

$1.99

$

In Stock, Qty 5

0

38

Homelite 661505003

Hex Bolt (M8 x 50 mm)

$1.99

$

Usually ships in 3-7 days

0

39

Homelite 678238001

Hitch Pin

$1.99

$

Usually ships in 3-7 days

0

40

Homelite 661570001

Screw (1/4-20 x 37 mm, T-30 Torx Flat Hd.)

$

$

Not available

41

Homelite 660760003

Screw (T-30 Torx, 1/4-20, Truss Hd. Shoulder)

$2.49

$

Usually ships in 3-7 days

0

42

Homelite 310703001

Left Frame Assembly (Incl. Key No. 43)

$

$

Not available

43

Homelite 518993001

Frame Glide

$

$

Not available

44

Homelite 310704001

Right Frame Assembly (Incl. Key No. 43)

$

$

Not available

45

Homelite 308662001

Filter Screen

$

$

Not available

46

Homelite 638385007

Engine Plate

$

$

Not available

47

Homelite 308862003

Outlet Tube

$8.99

$

In Stock, only 3 left!

0

48

Homelite 308653006

Pump (Himore)
(Superseded to 308653093)

$170.99

$

Usually ships in 3-7 days

0

49

Homelite 678169004

Thermal Release Valve

$

$

Not available

50

Homelite 661505001

Hex Bolt (M8 x 65 mm)

$

$

Not available

51

Homelite 660391002

Hex Bolt (M8 x 20 mm)

$2.99

$

Usually ships in 3-7 days

0

52

Homelite 310698001

Lift Handle

$

$

Not available

53

Homelite 310706001

Deck Bracket Assembly (Inc. Key Nos. 54-57)

$31.99

$

Usually ships in 3-7 days

0

54

Homelite 678406006

Connect Pin

$

$

Not available

55

Homelite 678597001

Release Handle

$

$

Not available

56

Homelite 678640001

Hitch Pin

$

$

Not available

57

Homelite 678633001

Deck Lock Spring

$

$

Not available

58

Homelite 570105001

Tube Conduit

$

$

Not available

59

Homelite 678650001

Hanger

$

$

Not available

60

Homelite 678775002

Nozzle Cleaning Tool

$

$

Not available

61

Homelite 310701001

15 ft. Self Coiling Garden Hose

$

$

Not available

62

Homelite 310660001

Soap Blaster Nozzle Assembly

$

$

Not available

63

Homelite 308697005

0deg Nozzle

$18.99

$

Usually ships in 3-7 days

0

64

Homelite 308698005

15deg Nozzle
(Superseded to 120516002)

$

$

Not available

65

Homelite 308699005

25deg Nozzle

$

$

Not available

66

Homelite 570727006

Nozzle Holder

$6.99

$

In Stock, only 1 left!

0

67

Homelite 638637002

Spring Clip

$2.49

$

Usually ships in 3-7 days

0

68

Homelite 308835004

Hose
(Superseded to 308835066)

$

$

Not available

69

Homelite 308760006

Trigger Handle Assembly (Inc. Key Nos. 90-93)
(Superseded to 308760028)

$46.99

$

Usually ships in 3-7 days

0

70

Homelite 308918004

Expand Style Quick Connect

$

$

Not available

71

Homelite 678041003

Output Shaft Key
(Superseded to 678041007)

$1.49

$

Usually ships in 3-7 days

0

72

Homelite 308792005

Deck High Pressure Hose Assembly
(Superseded to 308792002A)

$

$

Not available

73

Homelite 561399003

Injection Hose

$2.99

$

In Stock, only 2 left!

0

74

Homelite 518391001

Filter

$

$

Not available

75

Homelite 308452002

Detergent Suction Kit

$5.99

$

In Stock, Qty 5

0

76

Homelite 638318003

Washer (D15 x d5.5 x 2t)

$

$

Not available

77

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

78

Homelite 678546001

Trunk

$

$

Not available

Homelite 940507001

Deck Cleaner Label

Note: (Not Shown)

$

$

Not available

Homelite 940705019

Deck Logo Label

Note: (Not Shown)

$

$

Not available

Homelite 940792004

Deck Pressure Washer Label

Note: (Not Shown)

$

$

Not available

Homelite 940707003

Deck Danger Label

Note: (Not Shown)

$1.99

$

Usually ships in 3-7 days

0

Homelite 940694002

Deck Removal Label

Note: (Not Shown)

$2.49

$

Usually ships in 3-7 days

0

Homelite 940779005

Performance Label

Note: (Not Shown)

$1.99

$

Usually ships in 3-7 days

0

Homelite 940719011

Shroud Warning Label

Note: (Not Shown)

$3.49

$

Usually ships in 3-7 days

0

Homelite 940507002

No Hands Label

Note: (Not Shown)

$

$

Not available

Homelite 940617018

Quick Start Label

Note: (Not Shown)

$

$

Not available

Homelite 940778002

Hot Muffler Label

Note: (Not Shown)

$

$

Not available

Homelite 940937002

Fuel Valve Label

Note: (Not Shown)

$

$

Not available

Homelite 940971015

Hang Tag Label

Note: (Not Shown)

$

$

Not available

Homelite 940786005

Maximum Pressure Label

Note: (Not Shown)

$

$

Not available

Homelite 940654083

Warning Label (English)

Note: (Not Shown)

$2.99

$

Usually ships in 3-7 days

0

Homelite 940726014

Husky Logo Label

Note: (Not Shown)

$

$

Not available

Homelite 940654087

Warning Label (Spanish)

Note: (Not Shown)

$

$

Not available

Lubricant (SAE10W30)

Note: (Not Shown) Purchase Locally

$

$

Not available

Homelite 940599004

Data Label

Note: (Not Shown)

$

$

Currently unavailable

Homelite 940654088

UL Fire Warning Label

Note: (Not Shown)

$1.99

$

Usually ships in 3-7 days

0

Homelite 987000447

Operator's Manual

Note: (Not Shown)

$

$

Not available

Homelite 960718004

Operator's Manual (Honda Engine - 160cc)

Note: (Not Shown)

$

$

Not available
