HU 80530 - Husky Pressure Washer Pressure Washer Parts Diagram

Pressure Washer

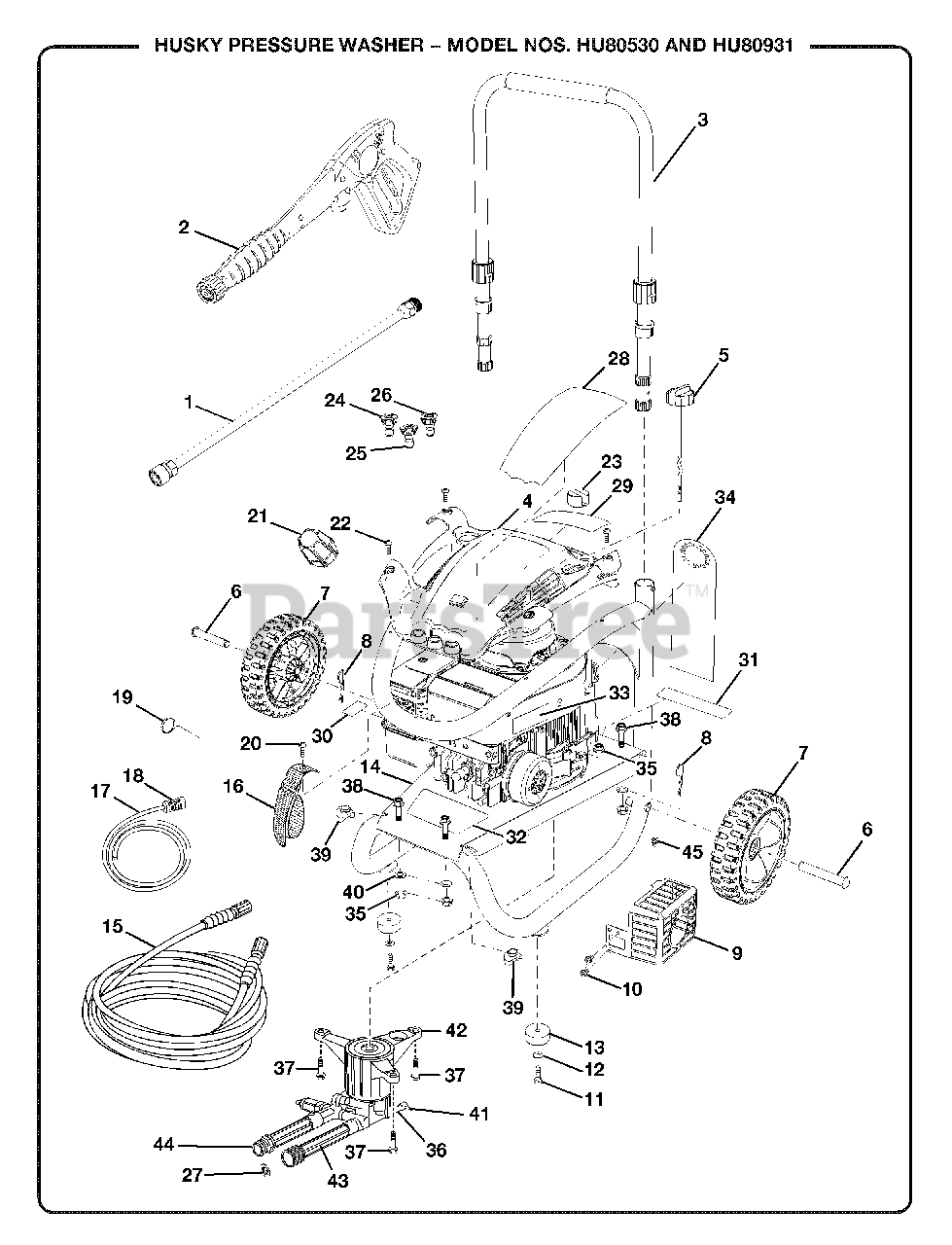

Pressure Washer Parts Diagram

  • Title

1

Homelite 308494004

Spray Wand Assembly
(Superseded to 308494058)

$

$

Not available

2

Homelite 308413005

Spray Wand

$

$

Not available

3

Homelite 308415002

Handle Assembly

$

$

Not available

4

Homelite 518383003

Engine Shroud Assembly
(Superseded to 120950006)

$38.99

$

Usually ships in 3-7 days

0

5

Homelite 308658001

Oil Cap / Dipstick

$8.49

$

Usually ships in 3-7 days

0

6

Homelite 120900011

Axle Assembly

Note: (Inc. Key No. 8)

$4.49

$

Usually ships in 3-7 days

0

7

Homelite 308603001

Wheel Assembly

$

$

Not available

8

Homelite 678238001

Hitch Pin

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 638323001

Muffler Guard

$12.99

$

Usually ships in 3-7 days

0

10

Homelite 660991001

Screw (M5 x 8 mm)

Note: May Be Purchased Locally

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 660945001

Bolt (1/4-20 x 25 mm Hex Hd.)

Note: May Be Purchased Locally

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 638128003

Washer, 1/4 in.

Note: May Be Purchased Locally

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 561454001

Rubber Foot

$1.49

$

In Stock, Qty 6

0

14

Homelite 308471002

Frame

$

$

Not available

15

Homelite 308414003

High Pressure Hose (20 ft.)

$

$

Not available

16

Homelite 308652002

Hook and Loop Strap
(Superseded to 308652001)

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 561399003

Injection Hose

$2.99

$

Usually ships in 3-7 days

0

18

Homelite 518391001

Injection Hose Filter

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 678148002

Nozzle Cleaning Tool

$

$

Not available

20

Homelite 660733003

Screw (12-14 x 13 mm)

Note: May Be Purchased Locally

$

$

Not available

21

Homelite 308728002

Fuel Cap
(Superseded to 308728001)

$

$

Not available

22

Homelite 660956001

Screw (12-14 x 15 mm)

Note: May Be Purchased Locally

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 561386001

Wand Holder

$

$

Not available

24

Homelite 678303001

Nozzle, 0° (Red)

$5.99

$

Usually ships in 3-7 days

0

25

Homelite 678304001

Nozzle, 25° (Green)

$8.49

$

In Stock, only 1 left!

0

26

Homelite 678152001

Nozzle, Detergent (Black)
(Superseded to 308706006)

$2.99

$

Usually ships in 3-7 days

0

27

Homelite 308662001

Filter Screen

$

$

Not available

28

Homelite 940719003

Logo Label

$

$

Not available

29

Homelite 940617005

Quick Start Guide Label

$

$

Not available

30

Homelite 940660008

Gas / Prime Label

$

$

Not available

31

Homelite 940678008

Data Label

Note: (Model HU80530)

$

$

Not available

Homelite 940678009

Data Label

Note: (Model HU80931)

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 940660014

Danger Label

$

$

Not available

33

Homelite 940680002

Hot Surface Warning Label

$

$

Not available

34

Homelite 961030001

Danger Label (Hang Tag)

$

$

Not available

35

Homelite 678189001

Lock Nut (M8)

$

$

Not available

36

Homelite 678169001

Thermal Relief Valve
(Superseded to 678169004)

$

$

Not available

37

Homelite 660973005

Bolt (M8 X 65 mm)

Note: May Be Purchased Locally

$1.49

$

Usually ships in 3-7 days

0

38

Homelite 660969002

Bolt (M8 X 52 mm)

Note: May Be Purchased Locally

$

$

Not available

39

Homelite 561474001

Isolator

$2.49

$

Usually ships in 3-7 days

0

40

Homelite 638128002

Washer (5/16 in.)

Note: May Be Purchased Locally

$

$

Not available

41

Homelite 518470001

Plastic TRV Spout

$

$

Not available

42

Homelite 308653002

Pump
(Superseded to 308653007)

Note: (Inc. Key Nos. 43 and 44)

$156.99

$

Usually ships in 3-7 days

0

43

Homelite 308861002

Inlet Tube

$

$

Not available

44

Homelite 308862002

Outlet Tube

$

$

Not available

45

Homelite 660959001

Screw (M5 x 10 mm)

Note: May Be Purchased Locally

$

$

Not available

46

Homelite 678041002

3/16 in. Output Shaft Key
(Superseded to 678041007)

Note: (Not shown)

$1.49

$

Usually ships in 3-7 days

0

47

Homelite 308663001

O-Ring Kit

Note: (not shown)

$

$

Not available

Homelite 987000055

Operator's Manual

$

$

Not available
