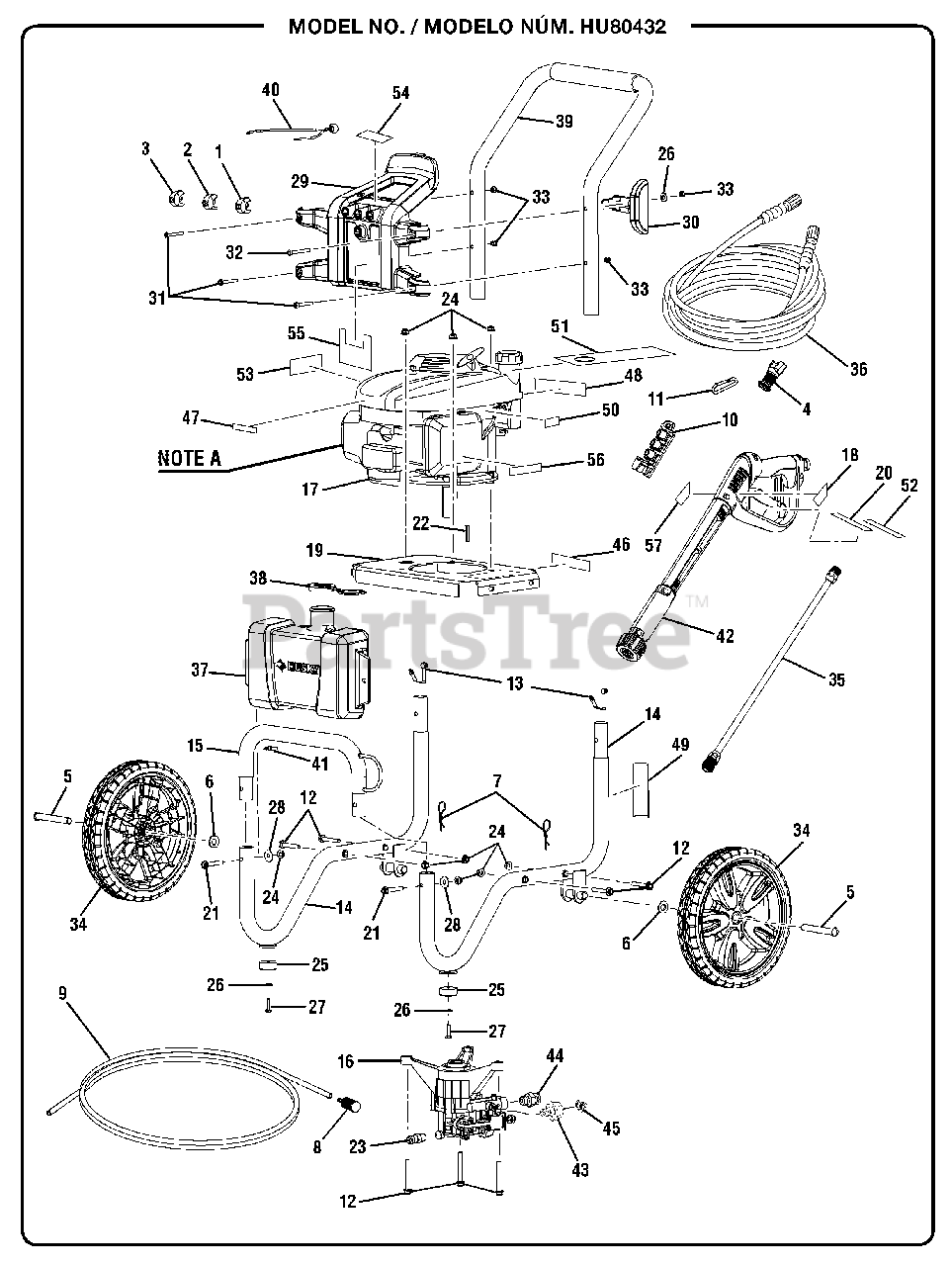

HU 80432 - Husky Pressure Washer General Assembly Parts Diagram

Pressure Washer

General Assembly Parts Diagram

  • Title

1

Homelite 308697005

0° Nozzle

$18.99

$

Usually ships in 3-7 days

0

2

Homelite 308700010

40° Nozzle
(Superseded to 308700012)

$6.99

$

In Stock, only 1 left!

0

3

Homelite 308699015

25° Nozzle

$

$

Currently unavailable

4

Homelite 310660001

Soap Blaster Nozzle

$

$

Not available

5

Homelite 620599001

Axle
(Superseded to 620599007)

$4.49

$

Usually ships in 3-7 days

0

6

Homelite 638275002

Washer (1/2 in.)

$1.99

$

In Stock, Qty 5

0

7

Homelite 678238001

Hitch Pin

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 518391001

Filter

$

$

Not available

9

Homelite 561399003

Injection Hose

$2.99

$

In Stock, only 2 left!

0

10

Homelite 570727006

Storage Holder

Note: (4 Nozzle)

$6.99

$

In Stock, only 1 left!

0

11

Homelite 638637001

Spring Clip

$

$

Not available

12

Homelite 660962001

Bolt w/Washer (M8 x 55 mm Hex Hd.)
(Superseded to 660969001)

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 308421001

Lock Button w/Spring Clip
(Superseded to 308421004)

$

$

Not available

14

Homelite 308471012

Main Frame Assembly
(Superseded to 308471006)

Note: (Inc. Key Nos. 13 & 25-27)

$

$

Not available

15

Homelite 308659002

Front Frame

$

$

Not available

16

Homelite 308653008

Pump
(Superseded to 308653035)

Note: (Inc. Key Nos. 43-45)

$

$

Not available

17

Engine

Note: (Honda)

$

$

Not available

18

Homelite 940726014

Trigger Handle Logo Label

$

$

Not available

19

Homelite 638662003

Engine Plate

$55.99

$

Usually ships in 3-7 days

0

20

Homelite 940654087

Wand Label (Fr./Sp.)

$

$

Not available

21

Homelite 661505003

Bolt (M8 x 50 mm)

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 678041002

Output Shaft Key
(Superseded to 678041007)

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 678169004

Thermal Release Valve

$

$

Not available

24

Homelite 678774001

Lock Nut (M8 x 1-1/4 in.)

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 570554001

Wear Pad

$

$

Not available

26

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

27

Homelite 661503001

Bolt (1/4-20 x 1 mm Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 638675001

Washer (5/16 in.)

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 310673002

Hose and Nozzle Holder

$

$

Not available

30

Homelite 518791001

Wand Holder

$

$

Not available

31

Homelite 661501001

Screw (1/4-20 x 1.85 in., Torx)

$

$

Not available

32

Homelite 661501002

Screw (1/4-20 x 2.27 in., Torx)
(Superseded to 660592006)

$2.49

$

Usually ships in 3-7 days

0

33

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

34

Homelite 308451004

Wheel (12 in. x 2 in.)

$

$

Not available

35

Homelite 308494003

Spray Wand
(Superseded to 308494004)

$

$

Not available

36

Homelite 308835004

High Pressure Hose
(Superseded to 308835066)

$

$

Not available

37

Homelite 518792002

Soap Tank

$

$

Not available

38

Homelite 310650002

Soap Tank Cap

$

$

Not available

39

Homelite 308638002

Handle Assembly

$

$

Not available

40

Homelite 310664001

Bungee Cord and Bead Assembly

$3.99

$

In Stock, only 3 left!

0

41

Homelite 518650001

Injection Hose Holder

$

$

Not available

42

Homelite 308760006

Trigger Handle Assembly
(Superseded to 308760028)

$46.99

$

Usually ships in 3-7 days

0

43

Homelite 308861003

Inlet Tube

$21.99

$

In Stock, only 3 left!

0

44

Homelite 308862003

Outlet Tube

$8.99

$

In Stock, only 3 left!

0

45

Homelite 308662001

Filter Screen

$

$

Not available

46

Homelite 940599005

Data Label

$

$

Currently unavailable

47

Homelite 940719006

Honda Logo Label

$

$

Currently unavailable

48

Homelite 940654081

Warning Label

$

$

Not available

49

Homelite 940617045

Pump Quick Start Label

$

$

Not available

50

Homelite 940937002

Fuel Valve Label

$

$

Not available

51

Homelite 940715003

Engine Oil Fill Label

$

$

Not available

52

Homelite 940786001

Wand Label

Note: (Max Rating)

$

$

Not available

53

Homelite 940778003

Hot Muffler Label

$

$

Not available

54

Homelite 940378008

Nozzle Label

$

$

Not available

55

Homelite 940779010

Performance Label

$

$

Not available

56

Homelite 940617037

Engine Quick Start Label

$

$

Not available

57

Homelite 940654083

Trigger Handle Warning Label

$2.99

$

Usually ships in 3-7 days

0

58

Homelite 308452002

Detergent Suction Kit

Note: Not Shown

$5.99

$

In Stock, Qty 5

0

59

Lubricant

Note: (SAE 10W30) Not Shown

$

$

Not available

Homelite 940718004

Operator's Manual

Note: (Honda Engine - 190cc) Not Shown

$

$

Currently unavailable

Homelite 987000450

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
