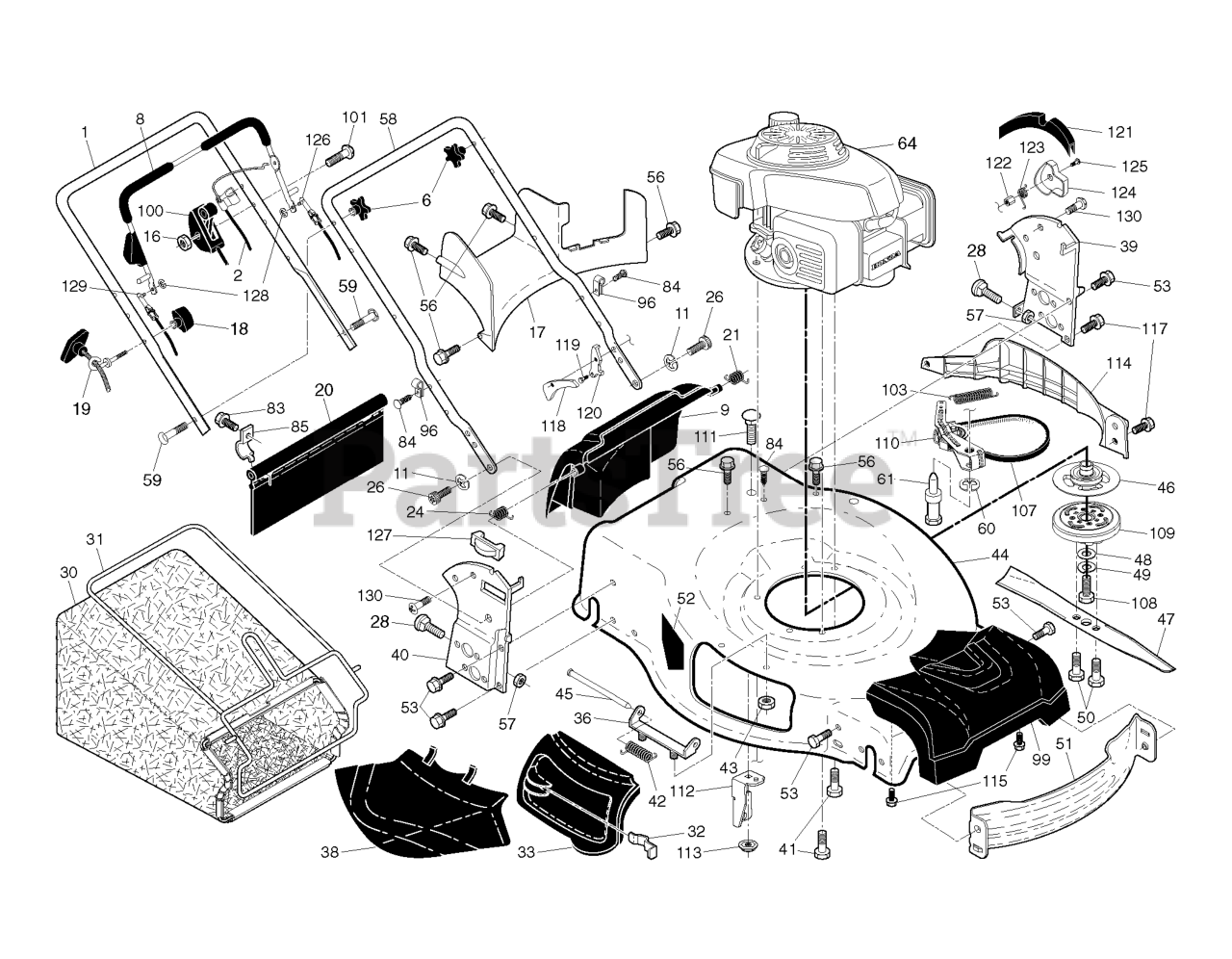

HU 800 AWD X BBC (961450029-01) - Husqvarna Walk-Behind Mower (2016-09) FRAME & ENGINE Parts Diagram

Walk-Behind Mower

FRAME & ENGINE Parts Diagram

  • Title

2

Husqvarna 579484202

CABLE.BBC.22+.AW2.BS.ERGO.WALK

$40.99

$

In Stock, Qty 7

0

53

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

111

Husqvarna 872140405

BOLT T

$7.49

$

In Stock, Qty 7

0

108

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 581782101

BAFFLE.REAR.22+RGD.AWD.PLASTIC

$47.99

$

In Stock, Qty 6

0

Husqvarna 586808501

COVER.INSIDE.LOWER.RT.EZS

Note: INSIDE RH NIOT SHOWN

$3.99

$

Usually ships in 3-10 days

0

58

Husqvarna 585250702

HANDLE.LOWER.22+EZS.498

$

$

Not available

112

Husqvarna 579471802

BRACKET.CABLE MOUNTING.22+

$

$

Not available

Husqvarna 585251001

PAWL.ADJUSTMENT.EZS.RIGHT

Note: RH NOT SHOWN

$4.99

$

Usually ships in 3-10 days

0

Husqvarna 586794301

COVER.OUTSIDE.LOWER.EZS.RT

Note: OUTSIDE RH NOT SHOWN

$3.99

$

Usually ships in 3-10 days

0

107

Husqvarna 579273201

BELT.COG.BBC

$60.99

$

In Stock, only 1 left!

0

117

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, only 2 left!

0

100

Husqvarna 582000101

CONTROL.THROTTLE.BBC.HON.22+AW

$26.99

$

Usually ships in 3-10 days

0

96

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 6

0

Husqvarna 585454601

SPRING.TORSION.PAWL ENG.RT

Note: RH NOT SHOWN

$3.49

$

Usually ships in 3-10 days

0

56

Husqvarna 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

125

Husqvarna 585547901

SCREW.TORX.PAN HEAD.M6-1

$3.49

$

Usually ships in 3-10 days

0

113

Husqvarna 532438130

NUT.FLANGE.1-4-20-SERR

$

$

Not available

33

Husqvarna 532419927

DOOR.MULCH.22 PLUS.HUSQ.GREY
(Superseded to 594942002)

$10.99

$

In Stock, Qty 13

0

18

Husqvarna 581912601

T-KNOB.NEW ROPE GUIDE

$4.99

$

In Stock, only 2 left!

0

130

Husqvarna 532141841

SCREW.PAN.HEAD.#10

$7.49

$

In Stock, only 2 left!

0

38

Husqvarna 532426129

DEFLECTOR.CLIPPING.22.BLACK

$11.99

$

In Stock, Qty 6

0

19

Husqvarna 581902101

GUIDE.ROPE.BLK.ZINC.CHROM

$

$

Not available

85

Husqvarna 532434530

BRACKET.SKIRT.22+.BZP

$6.49

$

In Stock, Qty 11

0

32

Husqvarna 532441192

LATCH.DOOR.ZINC

$

$

Not available

9

Husqvarna 585847603

DOOR.REAR.ASM.22+GEN.FG/RG.498

$37.99

$

Usually ships in 3-10 days

0

122

Husqvarna 585487701

NUT.PAWL.M6

$3.49

$

Usually ships in 3-10 days

0

57

Husqvarna 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532419945

SCREW,DOOR/HANDLE.PIVOT

$6.49

$

In Stock, Qty 20+

0

42

Husqvarna 532193000

SPRING.TORSION

$7.49

$

In Stock, only 3 left!

0

31

Husqvarna 585054702

FRAME.GBAG.22+.BLK

$34.99

$

In Stock, Qty 5

0

115

Husqvarna 584299401

SCREW.HI-LO. 5/16 X 1.00

$4.99

$

In Stock, Qty 6

0

124

Husqvarna 586794401

COVER.OUTSIDE.LOWER.EZS.LT

Note: OUTSIDE LH

$3.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

21

Husqvarna 532419949

SPRING.LH.BLACK

Note: LH

$6.49

$

In Stock, Qty 8

0

39

Husqvarna 585250402

BRACKET.ASM.HANDLE.LT.22+.498

Note: LH

$14.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 2 left!

0

118

Husqvarna 586808601

COVER.INSIDE.LOWER.LT.EZS

Note: INSIDE LH

$3.99

$

Usually ships in 3-10 days

0

99

Husqvarna 585668701

COVER.ASSEMBLY.FRONT.22+AWD

$31.99

$

In Stock, only 1 left!

0

127

Husqvarna 585252401

DOOR.REAR.LIFT.ASM EZS

$9.49

$

Usually ships in 3-10 days

0

61

Husqvarna 581424501

BOLT.BBC.TENSION.PIVOT

$14.99

$

Usually ships in 3-10 days

0

103

Husqvarna 581530701

SPRING.BRAKE.RESET

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 580638706

HANDLE.UPPER.3.POS.BS.AW2.GREY

$

$

Not available

126

Husqvarna 585251602

CABLE.EBA.ACTUATION.LT.BBC.MOW

Note: LH

$20.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

24

Husqvarna 532419948

SPRING.RH.GRAY

Note: RH

$6.49

$

In Stock, Qty 8

0

129

Husqvarna 585251702

CABLE.EBA.ACTUA.RT.BBC.ERGOHD

Note: RH

$31.99

$

In Stock, only 1 left!

0

43

Husqvarna 532438130

NUT.FLANGE.1-4-20-SERR

$

$

Not available

46

Husqvarna 581277401

PULLEY.BBC.DRIVING

$74.99

$

Usually ships in 3-10 days

0

60

Husqvarna 579482801

E-RING.12MM.SHAFT

$4.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532180460

BOLT.BLADE

$9.99

$

In Stock, only 2 left!

0

Husqvarna 585797102

BRACKET.BAG.ASM.EZS.RH.BLK

Note: RH NOT SHOWN

$4.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532175650

ROD.HINGE.21

$7.49

$

In Stock, Qty 10

0

47

Husqvarna 587799401

BLADE.22.REAPER.BBC.RUST PREVE
(Superseded to 587799402)

$21.99

$

In Stock, only 3 left!

0

120

Husqvarna 585250901

PAWL.ADJUSTMENT.EZS.LEFT

Note: LH

$6.49

$

In Stock, only 2 left!

0

128

Husqvarna 585984701

E-RING.5/32.HD

$3.99

$

In Stock, only 1 left!

0

119

Husqvarna 585487601

BOLT.PAWL.M6

$3.49

$

In Stock, only 1 left!

0

52

Husqvarna 532404763

DANGER DECAL
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

121

Husqvarna 585797101

BRACKET.BAG.ASM.EZS.LH.BLK

Note: LH

$6.99

$

Usually ships in 3-10 days

0

114

Husqvarna 587568102

BUMPER.LEFT SIDE 22+.498

$62.99

$

Usually ships in 3-10 days

0

83

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 16

0

44

Husqvarna 585947202

KIT.HSG.22+AW.MC.WO.BBC.STB

$

$

Not available

30

Husqvarna 580943402

GBAG.BA85028EM.NOFRAME.GRY/SLV
(Superseded to 580943401)

$45.99

$

Usually ships in 3-10 days

0

64

000000000

Note: HONDA GSV190-LAGBH FOR SERVICE & PARTS 1-800-426-7701

$

$

Not available

8

Husqvarna 587564115

BAIL.ARM ASM.ERGO OM.ORG/BLK

$39.99

$

In Stock, only 1 left!

0

84

Husqvarna 532428124

FASTENER.PUSH.O.250X0.783

$6.49

$

In Stock, only 2 left!

0

48

Husqvarna 579273801

WASHER.CRANK.BOLT

$6.99

$

In Stock, Qty 5

0

123

Husqvarna 585488301

SPRING.TORSION.PAWL ENG.LT

Note: LH

$3.49

$

Usually ships in 3-10 days

0

101

Husqvarna 532183365

SCREW

$6.49

$

Usually ships in 3-10 days

0

51

Husqvarna 532430599

BAFFLE.FRONT.22.PLUS

$

$

Not available

11

Husqvarna 579482801

E-RING.12MM.SHAFT

$4.99

$

Usually ships in 3-10 days

0

110

Husqvarna 581354501

ARM.BBC.TNSION.ARM.PULL(2 2MC)

$376.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532444537

SKIRT.REAR.22+RGD.HIGH WHEEL

$13.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 14

0

109

Husqvarna 581308101

HUB.FREE.BBC.ASSEMBLY(2 2MC)

$103.99

$

In Stock, only 1 left!

0

28

Husqvarna 586212501

BOLT.CARRIAGE.LN.5/16-18X.5/8

$4.99

$

In Stock, Qty 8

0

6

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, only 2 left!

0

40

Husqvarna 585250302

BRACKET.ASM.HANDLE.RT.22+.498

Note: RH

$

$

Not available

36

Husqvarna 532175735

BRACKET.ASM.HINGE.21.FWGD.

$

$

Not available
