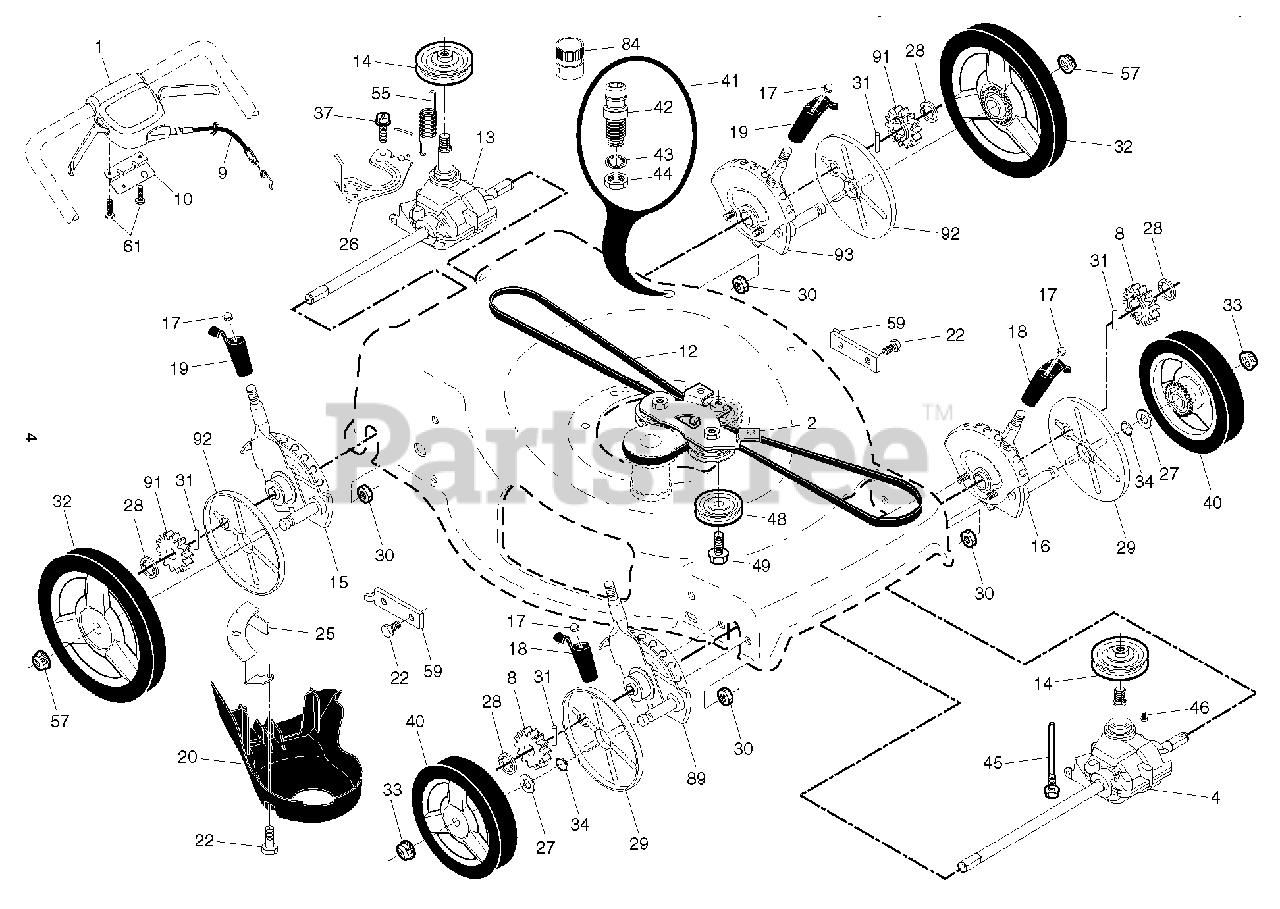

HU 800 AWD H (961450021-03) - Husqvarna Walk-Behind Mower (2016-07) DRIVE Parts Diagram

Walk-Behind Mower

DRIVE Parts Diagram

  • Title

1

Husqvarna 501407505

CONTROL.AW2.22+AWD.BS.GEN SERV
(Superseded to 589818807)

Note: . 9

$51.99

$

In Stock, only 3 left!

0

2

Husqvarna 586072802

BRACKET.ASM.AWD.BZP.BLACK

$

$

Not available

4

Husqvarna 588480001

TRANSMISSION.22+.AWD.FRT
(Superseded to 589599201)

$136.99

$

In Stock, Qty 11

0

8

Husqvarna 532404835

PINIION.14.TOOTH.RGD

$6.99

$

In Stock, Qty 7

0

9

Husqvarna 581952101

CABLE.DRIVE.RWD.WALK.

$34.99

$

In Stock, Qty 20+

0

10

Husqvarna 587249302

BRACKET DUAL TRIGGER CONTROL

$

$

Not available

12

Husqvarna 580364603

BELT.DRIVE.AWD.13 ZINC DUSTED
(Superseded to 580364610)

$17.99

$

Usually ships in 3-10 days

0

13

Husqvarna 581680801

TRANSMISSION.22+AWD.WALK.MOWER

$148.99

$

In Stock, Qty 20+

0

14

Husqvarna 586963001

PULLEY.DRIVE.SM.AWD/RWD
(Superseded to 586963002)

$11.99

$

In Stock, Qty 8

0

15

Husqvarna 581758803

KIT.ADJ.22+QP.RR.HW.BLK.ZINC
(Superseded to 587233202)

Note: RH

$27.99

$

In Stock, only 2 left!

0

16

Husqvarna 581758806

KIT.ADJ.22+QP.LF.BLACK.ZINC
(Superseded to 587429701)

Note: LH

$

$

Not available

17

Husqvarna 532413808

NUT.PUSH.156
(Superseded to 583343001)

$6.49

$

In Stock, Qty 20+

0

18

Husqvarna 532426188

KNOB.ADJUSTER.LW.BLK
(Superseded to 532431893)

$

$

Not available

19

Husqvarna 532426189

KNOB.ADJUSTER.REAR.BLACK
(Superseded to 532431893)

$

$

Not available

20

Husqvarna 580806901

COVER.REAR.DRIVE.22+2013

$31.99

$

In Stock, only 1 left!

0

22

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

25

Husqvarna 532426065

BRACKET.DRIVE.COVER.RGD.BZP

$

$

Not available

26

Husqvarna 581152502

BRACKET.TRAN.BELTKEEPER.22+RGD

$

$

Not available

27

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

28

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 581840401

COVER.DUST.WHEEL.INNER.WALK

$6.99

$

In Stock, only 3 left!

0

30

Husqvarna 532438130

NUT.FLANGE.1-4-20-SERR

$

$

Not available

31

Husqvarna 532404845

PAWL, DRIVE

$5.99

$

In Stock, only 3 left!

0

32

Husqvarna 501067001

WHEEL.11.H3SP.AWD.LC.460.BB2

$68.99

$

In Stock, Qty 5

0

33

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 8

0

40

Husqvarna 580365301

WHEEL.8".AWD.3SP.EXT.DR.GREY

$47.99

$

In Stock, Qty 11

0

41

Husqvarna 532438489

KIT.WASH-OUT.PORT.ZINC.WALK

$18.99

$

In Stock, only 1 left!

0

42

Husqvarna 532434994

WASHOUT.PORT.ZINC.RGD.22+
(Superseded to 532438489)

$18.99

$

In Stock, only 1 left!

0

43

Husqvarna 532415585

WASHER.LOCK.INTERNAL.TOOTH

$4.99

$

In Stock, only 2 left!

0

44

Husqvarna 532415586

LOCKNUT.HEX.WITH.O-RING

$6.49

$

In Stock, only 4 left!

0

45

Husqvarna 587438201

SCREW.HI-LO.5/16-14 X 4.10

$4.99

$

In Stock, Qty 6

0

46

Husqvarna 584299401

SCREW.HI-LO. 5/16 X 1.00

$4.99

$

In Stock, Qty 6

0

48

Husqvarna 587973001

PULLEY.ASM.22+ AWD

$22.99

$

In Stock, Qty 11

0

49

Husqvarna 581334501

SCREW

$15.99

$

In Stock, Qty 20+

0

55

Husqvarna 581351301

SPRING.RETURN.AUTO.

$10.99

$

In Stock, only 3 left!

0

57

Husqvarna 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

59

Husqvarna 532442113

BRACKET.SUPPORT.22+RWGD.BZP

$

$

Not available

61

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$7.49

$

In Stock, Qty 6

0

84

Husqvarna 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 6

0

89

Husqvarna 581758805

KIT.ADJ.22+QP.RF.BLACK.ZINC
(Superseded to 587429702)

$

$

Not available

91

Husqvarna 587232401

PINION.16.TEETH.HW.AWD.REAR

$4.99

$

In Stock, Qty 12

0

92

Husqvarna 587251701

COVER.DUST.WHEEL.HW.AWD.REAR

$7.99

$

In Stock, only 2 left!

0

93

Husqvarna 581758804

KIT.ADJ.22+QP.LR.HW.BLK.ZINC
(Superseded to 587233201)

$

$

Not available
