HU 725 AWD HQ (961450028-00) - Husqvarna Walk-Behind Mower (2015-11) FRAME ENGINE Parts Diagram

Walk-Behind Mower

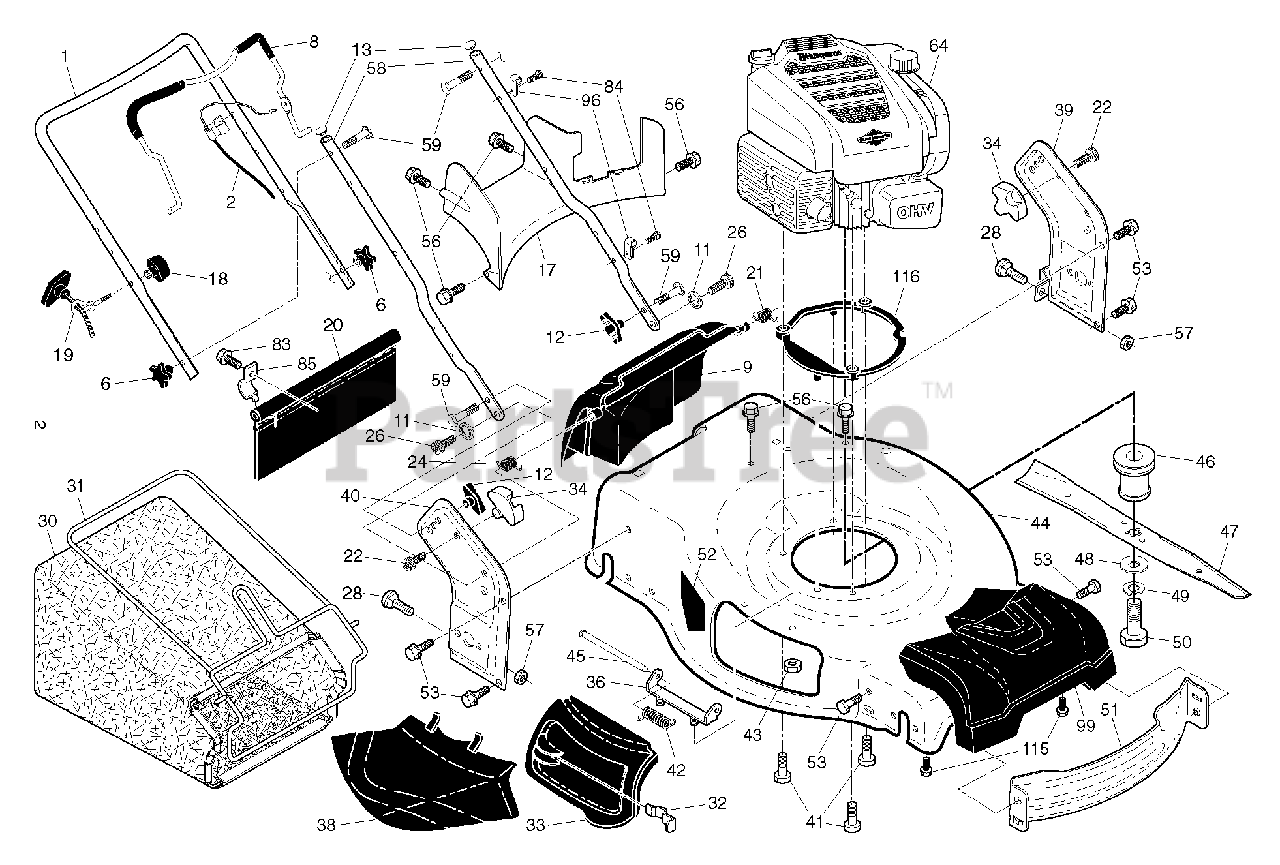

FRAME ENGINE Parts Diagram

  • Title

1

Husqvarna 585854806

HANDLE.UP.3POS.BS.AW2.GREY

Note: . 70

$

$

Not available

2

Husqvarna 532427497

CABLE.MZR.50.SNAP-IN

$14.99

$

In Stock, Qty 20+

0

6

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, Qty 20+

0

8

Husqvarna 580849102

BAIL.OVER.MOLD.ERGO.MZR.ORANGE

$66.99

$

In Stock, only 2 left!

0

9

Husqvarna 532431390

DOOR.REAR.ASM.22+.HUSQ.FG/RGD
(Superseded to 593304501)

$56.99

$

In Stock, Qty 20+

0

11

Husqvarna 579482801

E-RING.12MM.SHAFT

$6.99

$

In Stock, only 1 left!

0

12

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$9.49

$

In Stock, Qty 20+

0

13

Husqvarna 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 581782101

BAFFLE.REAR.22+RGD.AWD.PLASTIC

$47.99

$

In Stock, only 4 left!

0

18

Husqvarna 581912601

T-KNOB.NEW ROPE GUIDE

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 581902101

GUIDE.ROPE.BLK.ZINC.CHROM

$

$

Not available

20

Husqvarna 532444501

SKIRT.REAR.22PLUS.RGD.LW(2 2MC

$13.99

$

In Stock, Qty 20+

0

21

Husqvarna 532419949

SPRING.LH.BLACK

Note: LH

$6.49

$

In Stock, Qty 20+

0

22

Husqvarna 532141841

SCREW.PAN.HEAD.#10

$7.49

$

In Stock, only 2 left!

0

24

Husqvarna 532419948

SPRING.RH.GRAY

Note: RH

$6.49

$

In Stock, Qty 20+

0

26

Husqvarna 532419945

SCREW,DOOR/HANDLE.PIVOT

$6.99

$

In Stock, Qty 20+

0

28

Husqvarna 586212501

BOLT.CARRIAGE.LN.5/16-18X.5/8

$4.99

$

In Stock, Qty 13

0

30

Husqvarna 580943408

GBAG.B561029EM.GRY/SILV
(Superseded to 580943401)

$56.99

$

In Stock, Qty 20+

0

31

Husqvarna 585054702

FRAME.GBAG.22+.BLK

$34.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532441192

LATCH.DOOR.ZINC

$

$

Not available

33

Husqvarna 532419927

DOOR.MULCH.22 PLUS.HUSQ.GREY
(Superseded to 594942002)

$15.99

$

In Stock, Qty 20+

0

34

Husqvarna 532438134

BRACKET.GRASSBAG.ATTACHING.BLK

$6.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532175735

BRACKET.ASM.HINGE.21.FWGD.

$

$

Not available

38

Husqvarna 532426129

DEFLECTOR.CLIPPING.22.BLACK

$13.99

$

In Stock, Qty 20+

0

39

Husqvarna 585900703

BRACKET.ASM.HANDLE.LT.22+.GREY

Note: LH

$28.99

$

In Stock, Qty 7

0

40

Husqvarna 585900803

BRACKET.ASM.HANDLE.RT.22+.GREY

Note: RH

$

$

Not available

41

Husqvarna 532850999

SCREW

$7.49

$

In Stock, only 2 left!

0

42

Husqvarna 532193000

SPRING.TORSION

$7.99

$

In Stock, Qty 20+

0

43

Husqvarna 532438130

NUT.FLANGE.1-4-20-SERR

$

$

Not available

44

Husqvarna 581708354

KIT.HSG.22+AWD.MC.WO.668.TRI
(Superseded to 581708362)

$

$

Not available

45

Husqvarna 532175650

ROD.HINGE.21

$7.49

$

In Stock, Qty 20+

0

46

Husqvarna 581650901

ADAPTER.BLADE.25M.B&S.AWD

$20.99

$

In Stock, Qty 20+

0

47

Husqvarna 532420463

BLADE.22PLUS

$22.99

$

In Stock, Qty 20+

0

48

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

49

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

50

Husqvarna 532179617

BOLT.BLADE

$7.49

$

Usually ships in 3-10 days

0

51

Husqvarna 532430599

BAFFLE.FRONT.22.PLUS

$

$

Not available

52

Husqvarna 532404763

DANGER DECAL
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

53

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 20+

0

56

Husqvarna 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

57

Husqvarna 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

58

Husqvarna 585908203

HANDLE.LOWER.22+.BT.GRAY
(Superseded to 593270403)

$17.99

$

In Stock, Qty 7

0

59

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, Qty 20+

0

64

000000000

Note: B S 111P02-0130-F4 FOR SERVICE PARTS 1-800-233-3723

$

$

Not available

83

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 11

0

84

Husqvarna 532428124

FASTENER.PUSH.O.250X0.783

$6.49

$

In Stock, Qty 5

0

85

Husqvarna 532434530

BRACKET.SKIRT.22+.BZP

$6.49

$

In Stock, Qty 19

0

96

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 10

0

99

Husqvarna 585668701

COVER.ASSEMBLY.FRONT.22+AWD

$37.99

$

In Stock, only 1 left!

0

115

Husqvarna 581330001

SCREW.SHOULDER.5/16X1.375

$6.49

$

In Stock, Qty 12

0

116

Husqvarna 581745601

SPACER.AWD.B&S

$

$

Not available

Husqvarna 532423849

BAG OF HARDWARE.22+

Note: NOT SHOWN

$

$

Not available
