HU 725 AWD EX (961430120-02) - Husqvarna Walk-Behind Mower (2017-10) FRAME ENGINE Parts Diagram

Walk-Behind Mower

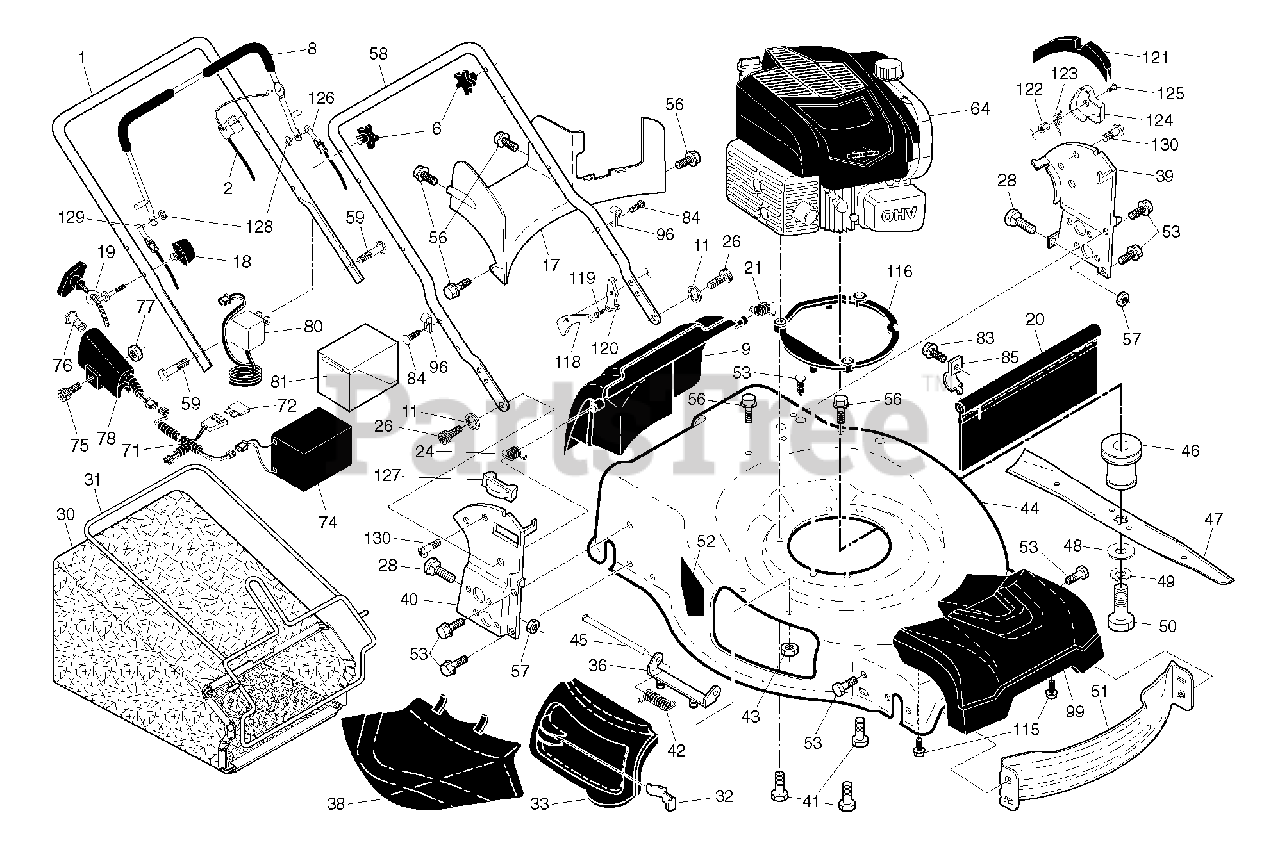

FRAME ENGINE Parts Diagram

  • Title

1

Husqvarna 580638706

HANDLE.UPPER.3.POS.BS.AW2.GREY

Note: . 70

$

$

Not available

2

Husqvarna 532440386

CABLE.MZR.RGD.22.B&S/HON.ERGO

$20.99

$

In Stock, Qty 5

0

6

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, only 3 left!

0

8

Husqvarna 585251806

BAIL.CONTROL.MZR.ERGO.EZS.O/B

$22.99

$

In Stock, only 1 left!

0

9

Husqvarna 585847603

DOOR.REAR.ASM.22+GEN.FG/RG.498

$37.99

$

Usually ships in 3-10 days

0

11

Husqvarna 579482801

E-RING.12MM.SHAFT

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 581782101

BAFFLE.REAR.22+RGD.AWD.PLASTIC

$47.99

$

In Stock, Qty 6

0

18

Husqvarna 581912601

T-KNOB.NEW ROPE GUIDE

$4.99

$

In Stock, only 2 left!

0

19

Husqvarna 581902101

GUIDE.ROPE.BLK.ZINC.CHROM

$

$

Not available

20

Husqvarna 532444501

SKIRT.REAR.22PLUS.RGD.LW(2 2MC

$13.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532419949

SPRING.LH.BLACK

Note: LH

$6.49

$

In Stock, Qty 8

0

24

Husqvarna 532419948

SPRING.RH.GRAY

Note: RH

$6.49

$

In Stock, Qty 8

0

26

Husqvarna 532419945

SCREW,DOOR/HANDLE.PIVOT

$6.49

$

In Stock, Qty 20+

0

28

Husqvarna 586212501

BOLT.CARRIAGE.LN.5/16-18X.5/8

$4.99

$

In Stock, Qty 8

0

30

Husqvarna 580943408

GBAG.B561029EM.GRY/SILV
(Superseded to 580943401)

$45.99

$

Usually ships in 3-10 days

0

31

Husqvarna 585054702

FRAME.GBAG.22+.BLK

$34.99

$

In Stock, Qty 6

0

32

Husqvarna 532441192

LATCH.DOOR.ZINC

$

$

Not available

33

Husqvarna 532419927

DOOR.MULCH.22 PLUS.HUSQ.GREY
(Superseded to 594942002)

$10.99

$

In Stock, Qty 13

0

36

Husqvarna 532175735

BRACKET.ASM.HINGE.21.FWGD.

$

$

Not available

38

Husqvarna 532426129

DEFLECTOR.CLIPPING.22.BLACK

$11.99

$

In Stock, Qty 7

0

39

Husqvarna 585250402

BRACKET.ASM.HANDLE.LT.22+.498

Note: LH

$14.99

$

Usually ships in 3-10 days

0

40

Husqvarna 585250302

BRACKET.ASM.HANDLE.RT.22+.498

Note: RH

$

$

Not available

41

Husqvarna 532850999

SCREW

$7.49

$

In Stock, only 2 left!

0

42

Husqvarna 532193000

SPRING.TORSION

$7.49

$

In Stock, only 3 left!

0

43

Husqvarna 532438130

NUT.FLANGE.1-4-20-SERR

$

$

Not available

44

Husqvarna 581708354

KIT.HSG.22+AWD.MC.WO.668.TRI
(Superseded to 581708362)

$

$

Not available

45

Husqvarna 532175650

ROD.HINGE.21

$7.49

$

In Stock, Qty 10

0

46

Husqvarna 581650901

ADAPTER.BLADE.25M.B&S.AWD

$18.99

$

In Stock, only 4 left!

0

47

Husqvarna 587199601

BLADE REAPER, 22 IN RUST
(Superseded to 587199603)

$21.99

$

In Stock, Qty 20+

0

48

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 2 left!

0

49

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

50

Husqvarna 532179617

BOLT.BLADE

$7.49

$

Usually ships in 3-10 days

0

51

Husqvarna 532430599

BAFFLE.FRONT.22.PLUS

$

$

Not available

52

Husqvarna 532404763

DANGER DECAL
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

53

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

56

Husqvarna 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

57

Husqvarna 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

58

Husqvarna 585250702

HANDLE.LOWER.22+EZS.498

$

$

Not available

59

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 2 left!

0

64

000000000

Note: B S 104M05-0073-F1 FOR SERVICE PARTS 1-800-233-3723

$

$

Not available

71

Husqvarna 587934401

HARNESS.WIRE.ES.RGD.BUTTON.CON

$26.99

$

Usually ships in 3-10 days

0

72

Husqvarna 532425937

FUSE, 40A

$6.49

$

Usually ships in 3-10 days

0

74

Husqvarna 532431584

BATTERY.12V.22+RWGD
(Superseded to 584353901)

$103.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532446694

BOLT.M6-1X40.T30

$4.99

$

In Stock, only 4 left!

0

76

Husqvarna 580915202

BUTTON.KEY.CYLINDER.BLACK

$20.99

$

In Stock, only 1 left!

0

77

Husqvarna 532446695

Lock Nut, M6-1 Nyloc Insert
(Superseded to 597434101)

$2.49

$

Usually ships in 3-10 days

0

78

Husqvarna 587934301

STARTER.ASM.PUSH.BUTTON

$51.99

$

Usually ships in 3-10 days

0

80

Husqvarna 587007101

CHARGER.BATT.12V LEAD-ACID.DOM

$

$

Not available

81

Husqvarna 585152402

COVER.BATTERY.BOX 22+RDG.GRY

$43.99

$

Usually ships in 3-10 days

0

83

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

84

Husqvarna 532428124

FASTENER.PUSH.O.250X0.783

$6.49

$

In Stock, only 2 left!

0

85

Husqvarna 532434530

BRACKET.SKIRT.22+.BZP

$6.49

$

In Stock, Qty 11

0

96

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 6

0

99

Husqvarna 585668701

COVER.ASSEMBLY.FRONT.22+AWD

$31.99

$

In Stock, only 1 left!

0

115

Husqvarna 581330001

SCREW.SHOULDER.5/16X1.375

$6.49

$

In Stock, Qty 12

0

116

Husqvarna 581745601

SPACER.AWD.B&S

$

$

Not available

118

Husqvarna 586808601

COVER.INSIDE.LOWER.LT.EZS

Note: INSIDE LH

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 586808501

COVER.INSIDE.LOWER.RT.EZS

Note: INSIDE RH NIOT SHOWN

$3.99

$

Usually ships in 3-10 days

0

119

Husqvarna 585487601

BOLT.PAWL.M6

$3.49

$

In Stock, only 1 left!

0

120

Husqvarna 585250901

PAWL.ADJUSTMENT.EZS.LEFT

Note: LH

$6.49

$

In Stock, only 2 left!

0

Husqvarna 585251001

PAWL.ADJUSTMENT.EZS.RIGHT

Note: RH NOT SHOWN

$4.99

$

Usually ships in 3-10 days

0

121

Husqvarna 585797101

BRACKET.BAG.ASM.EZS.LH.BLK

Note: LH

$6.99

$

Usually ships in 3-10 days

0

Husqvarna 585797102

BRACKET.BAG.ASM.EZS.RH.BLK

Note: RH NOT SHOWN

$4.99

$

Usually ships in 3-10 days

0

122

Husqvarna 585487701

NUT.PAWL.M6

$3.49

$

Usually ships in 3-10 days

0

123

Husqvarna 585488301

SPRING.TORSION.PAWL ENG.LT

Note: LH

$3.49

$

Usually ships in 3-10 days

0

Husqvarna 585454601

SPRING.TORSION.PAWL ENG.RT

Note: RH NOT SHOWN

$3.49

$

Usually ships in 3-10 days

0

124

Husqvarna 586794401

COVER.OUTSIDE.LOWER.EZS.LT

Note: OUTSIDE LH

$3.49

$

Usually ships in 3-10 days

0

Husqvarna 586794301

COVER.OUTSIDE.LOWER.EZS.RT

Note: OUTSIDE RH NOT SHOWN

$3.99

$

Usually ships in 3-10 days

0

125

Husqvarna 585547901

SCREW.TORX.PAN HEAD.M6-1

$3.49

$

Usually ships in 3-10 days

0

126

Husqvarna 585251601

CABLE.MZR.EZS.LH.DSTR/ERGO

$10.99

$

Usually ships in 3-10 days

0

127

Husqvarna 585252401

DOOR.REAR.LIFT.ASM EZS

$9.49

$

Usually ships in 3-10 days

0

128

Husqvarna 585984701

E-RING.5/32.HD

$3.99

$

In Stock, only 1 left!

0

129

Husqvarna 585251705

CABLE.MZR.EZS.RH.ERGO.PB

$28.99

$

In Stock, only 4 left!

0

130

Husqvarna 532141841

SCREW.PAN.HEAD.#10

$7.49

$

In Stock, only 2 left!

0
