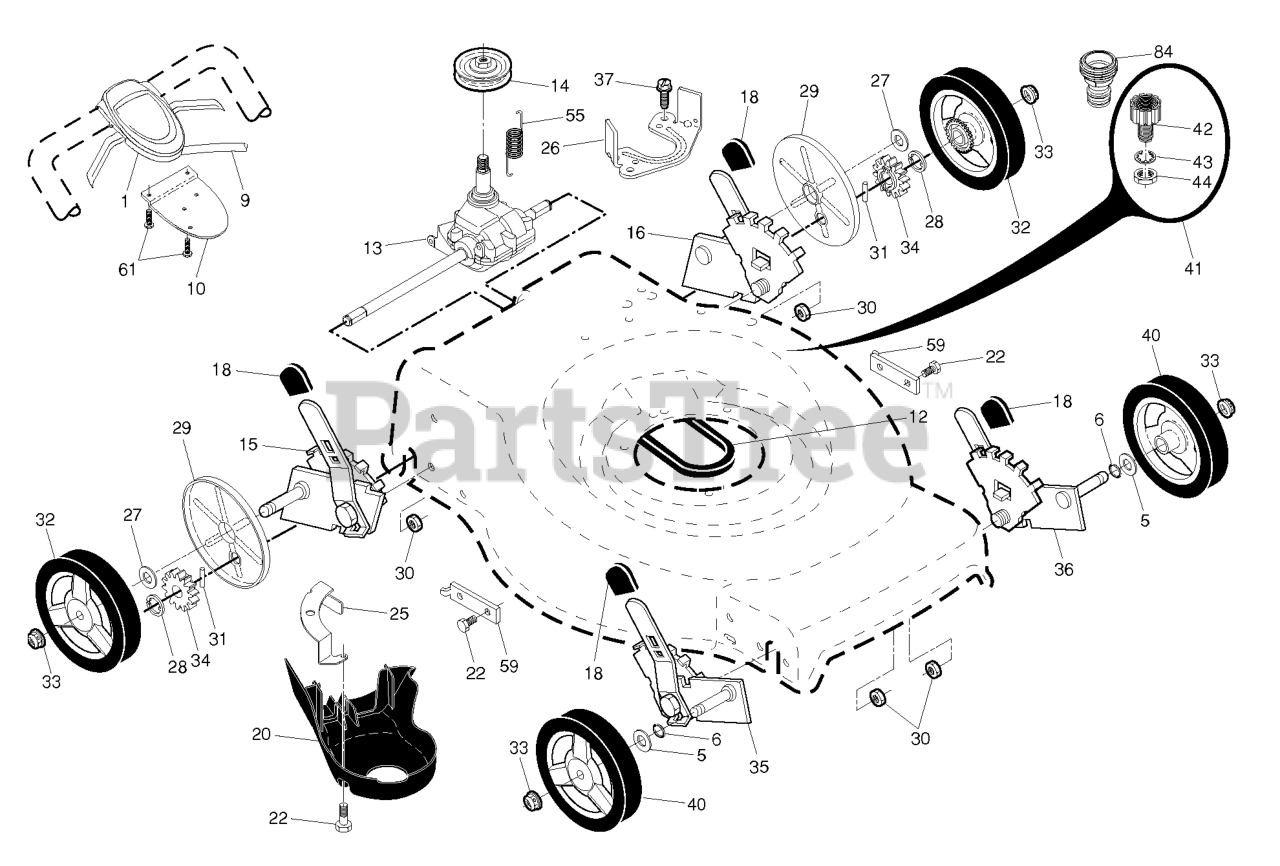

HU 700 L (961430069-01) - Husqvarna Walk-Behind Mower (2011-04) DRIVE Parts Diagram

Walk-Behind Mower

DRIVE Parts Diagram

  • Title

1

Husqvarna 532430995

RB CTRL.AW2.22+RGD.BS.GRY/BLK
(Superseded to 589818808)

Note: . 9

$47.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532088348

WASHER PM

$7.49

$

In Stock, Qty 6

0

6

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532431650

CABLE.CONTROL.22RGD.GEN2

$43.99

$

In Stock, Qty 8

0

10

Husqvarna 532432790

BRACKET.DRIVE.CONTR.GEN2.BLACK

$

$

Not available

12

Husqvarna 532421527

BELT.DRIVE.RGD.PLUS

$26.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532434564

RP TRANSMISSION.22+.RGD.AW2/
(Superseded to 581680801)

$148.99

$

In Stock, Qty 20+

0

14

Husqvarna 532194128

PULLEY

$20.99

$

In Stock, Qty 10

0

15

Husqvarna 532437873

ADJUSTER.ASM.LH FRONT/RH REAR
(Superseded to 581497907)

Note: RH

$

$

Not available

16

Husqvarna 532437874

ADJUSTER.ASM.LH REAR/RH FRONT
(Superseded to 581497908)

Note: LH

$22.99

$

In Stock, Qty 8

0

18

Husqvarna 532701037

SELECTOR KNOB

$5.99

$

In Stock, only 4 left!

0

20

Husqvarna 532427023

COVER.BELT.22.RGD
(Superseded to 580806901)

$31.99

$

In Stock, only 1 left!

0

22

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

25

Husqvarna 532426065

BRACKET.DRIVE.COVER.RGD.BZP

$

$

Not available

26

Husqvarna 532426066

BRACKET.TRANS.BELT.KEEPER.BZP
(Superseded to 589318302)

$

$

Not available

27

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

28

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$6.99

$

In Stock, only 3 left!

0

30

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

31

Husqvarna 532404845

PAWL, DRIVE

$5.99

$

In Stock, only 3 left!

0

32

Husqvarna 532441408

WHEEL.8IN.ALPHA.GRY.EXT.DR.BU
(Superseded to 581685101)

$28.99

$

In Stock, only 2 left!

0

33

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532404835

PINIION.14.TOOTH.RGD

$6.99

$

In Stock, Qty 9

0

35

Husqvarna 532437872

ADJUSTER.ASM.9POS.LW.RGD.FR

Note: RH

$

$

Not available

36

Husqvarna 532437871

ADJUSTER.ASM.LH FRONT/RH REAR

Note: LH

$30.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 6

0

40

Husqvarna 532441298

WHEEL.8IN.H3SPK.ALPHA.GRY.BB1
(Superseded to 532442855)

$46.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532438489

KIT.WASH-OUT.PORT.ZINC.WALK

$18.99

$

In Stock, only 1 left!

0

42

Husqvarna 532434994

WASHOUT.PORT.ZINC.RGD.22+
(Superseded to 532438489)

$18.99

$

In Stock, only 1 left!

0

43

Husqvarna 532415585

WASHER.LOCK.INTERNAL.TOOTH

$4.99

$

In Stock, only 2 left!

0

44

Husqvarna 532415586

LOCKNUT.HEX.WITH.O-RING

$6.49

$

In Stock, only 4 left!

0

55

Husqvarna 532406558

SPRING

$8.99

$

In Stock, Qty 7

0

59

Husqvarna 532442113

BRACKET.SUPPORT.22+RWGD.BZP

$

$

Not available

61

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$7.49

$

In Stock, Qty 6

0

84

Husqvarna 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 6
