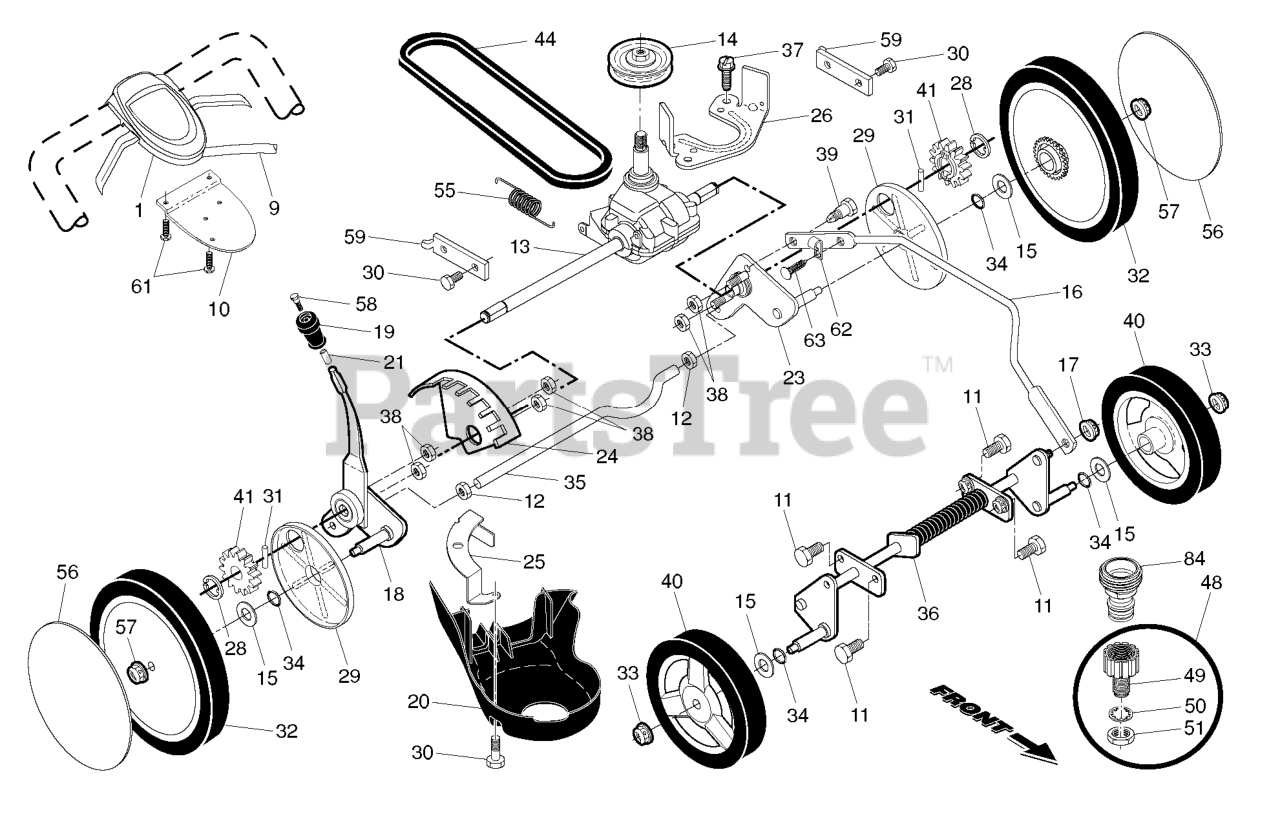

HU 700 HW - Husqvarna Walk-Behind Mower (Original) DRIVE Parts Diagram

Walk-Behind Mower

DRIVE Parts Diagram

  • Title
26

Husqvarna 532426066

BRACKET.TRANS.BELT.KEEPER.BZP
(Superseded to 589318302)

$

$

Not available

29

Husqvarna 532428781

COVER.DUST.WHEEL.RGD.HW

$6.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532407059

SHOULDER BOLT SEMI GIMLET PT.

$6.49

$

In Stock, only 1 left!

0

28

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532441420

KIT.SEL.ASM.22+HI-WHEEL.ZINC

$

$

Not available

25

Husqvarna 532426065

BRACKET.DRIVE.COVER.RGD.BZP

$

$

Not available

51

Husqvarna 532415586

LOCKNUT.HEX.WITH.O-RING

$6.49

$

In Stock, only 4 left!

0

19

Husqvarna 532433996

KNOB.SEL.SPRING.22+.SP.RIB.BLK

$6.99

$

Usually ships in 3-10 days

0

$5.99

$

In Stock, only 2 left!

0

1

Husqvarna 532430995

RB CTRL.AW2.22+RGD.BS.GRY/BLK
(Superseded to 589818808)

Note: INCLUDES CABLE

$47.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532427023

COVER.BELT.22.RGD
(Superseded to 580806901)

$31.99

$

In Stock, only 1 left!

0

84

Husqvarna 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 7

0

44

Husqvarna 532421527

BELT.DRIVE.RGD.PLUS

$26.99

$

In Stock, only 1 left!

0

13

Husqvarna 532434564

RP TRANSMISSION.22+.RGD.AW2/
(Superseded to 581680801)

$148.99

$

In Stock, Qty 20+

0

10

Husqvarna 532432790

BRACKET.DRIVE.CONTR.GEN2.BLACK

$

$

Not available

34

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

In Stock, only 1 left!

0

56

Husqvarna 532441333

HUBCAP.H.3SPK.GREY

$11.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532435241

SCREW.12-14X1.500

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532435242

SCREW.PLASTIC.ANCHOR.5/16

$5.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532428124

FASTENER.PUSH.O.250X0.783

$6.49

$

In Stock, only 2 left!

0

$7.49

$

In Stock, Qty 6

0

50

Husqvarna 532415585

WASHER.LOCK.INTERNAL.TOOTH

$4.99

$

In Stock, only 2 left!

0

31

Husqvarna 532404845

PAWL, DRIVE

$5.99

$

In Stock, Qty 6

0

16

Husqvarna 532430030

ROD.CONNECTING.RGD.22+.HW.BLAC

$20.99

$

In Stock, only 1 left!

0

62

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 6

0

30

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

41

Husqvarna 532404835

PINIION.14.TOOTH.RGD

Note: For 96143007000

$6.99

$

In Stock, Qty 5

0

59

Husqvarna 532442113

BRACKET.SUPPORT.22+RWGD.BZP

$

$

Not available

38

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

49

Husqvarna 532419735

FITTING, HOSE, WATER WASHOUT
(Superseded to 532421114)

Note: For 96143007000

$24.99

$

In Stock, only 2 left!

0

40

Husqvarna 532441298

WHEEL.8IN.H3SPK.ALPHA.GRY.BB1
(Superseded to 532442855)

Note: FRONT

$46.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 532437865

ADJUSTER.ARM.ASM.AX.LT.SP.HW

Note: LH

$

$

Not available

35

Husqvarna 532430598

AXLE.REAR.RGD

Note: REAR

$45.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0

57

Husqvarna 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

61

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$7.49

$

In Stock, Qty 6

0

15

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, Qty 5

0

41

Husqvarna 532428783

PINION.12.TEETH.RGD.22+HW

Note: For 96143007001

$7.99

$

In Stock, Qty 8

0

32

Husqvarna 532441330

WHEEL.11.ALPHA.GRY.EXT.BB2
(Superseded to 581336701)

Note: REAR

$56.99

$

In Stock, only 1 left!

0

12

Husqvarna 873940800

NUT.HEX.1/2-20

$7.49

$

In Stock, only 4 left!

0

49

Husqvarna 532434994

WASHOUT.PORT.ZINC.RGD.22+
(Superseded to 532438489)

Note: For 96143007001

$18.99

$

In Stock, only 1 left!

0

$20.99

$

In Stock, Qty 10

0

9

Husqvarna 532431650

CABLE.CONTROL.22RGD.GEN2

$43.99

$

In Stock, Qty 8

0

36

Husqvarna 532441329

RP AXLE.ASM.FRONT.RGD.ZINC
(Superseded to 532441541)

Note: FRONT

$

$

Not available

48

Husqvarna 532421114

KIT.WASH-OUT.PORT

Note: For 96143007000

$24.99

$

In Stock, only 2 left!

0

$8.99

$

In Stock, Qty 7

0

24

Husqvarna 532433511

BRACKET.WHL.ADJ.9.POS.W/PAD

$15.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532438489

KIT.WASH-OUT.PORT.ZINC.WALK

Note: For 96143007001

$18.99

$

In Stock, only 1 left!

0
