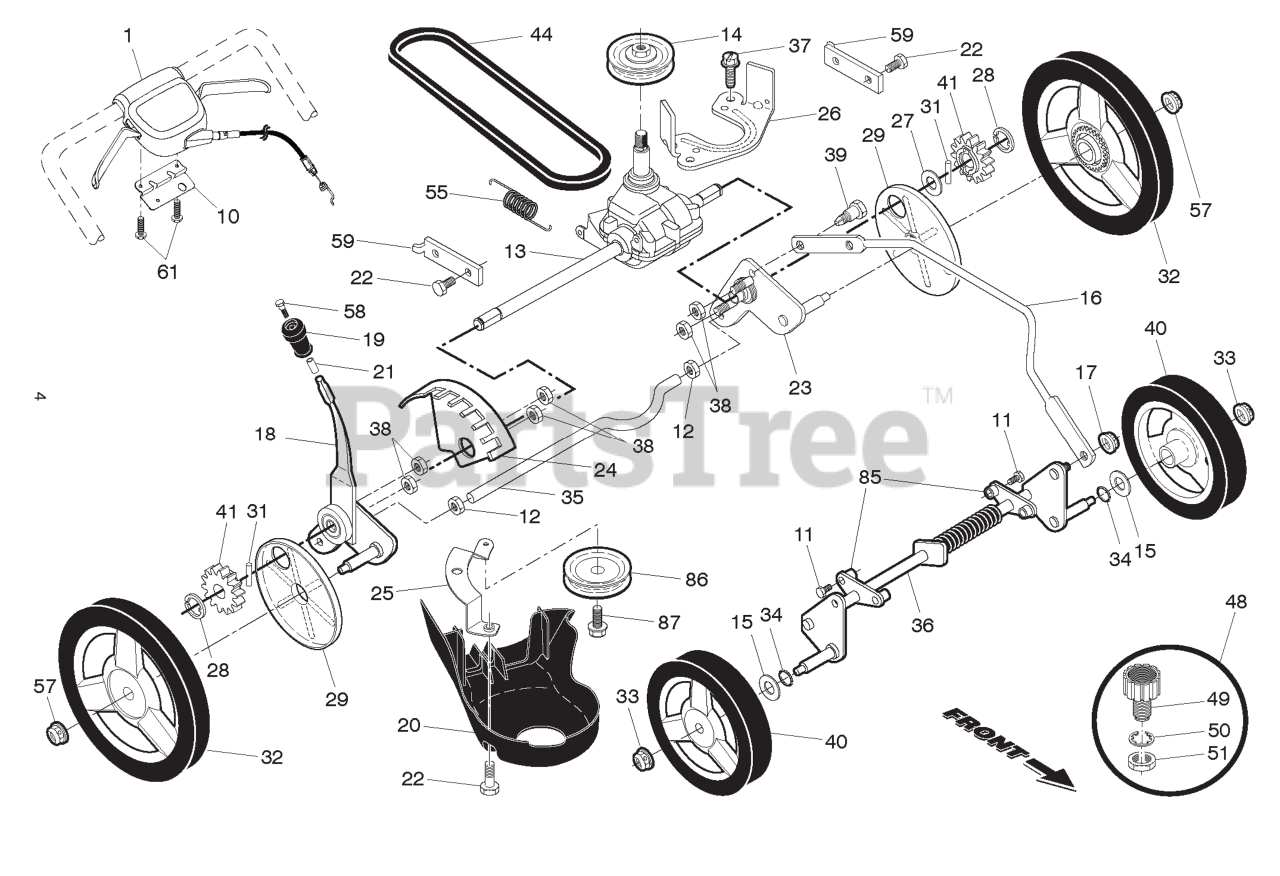

HU 700 H (961430128-01) - Husqvarna Walk-Behind Mower (2018-09) DRIVE Parts Diagram

Walk-Behind Mower

DRIVE Parts Diagram

  • Title

20

Husqvarna 580806901

COVER.REAR.DRIVE.22+2013

$31.99

$

In Stock, only 1 left!

0

19

Husqvarna 532433996

KNOB.SEL.SPRING.22+.SP.RIB.BLK

$6.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0

36

Husqvarna 532447189

AXLE.ASM.FRT.RGD.BZP
(Superseded to 583762601)

$

$

Not available

87

Husqvarna 581127601

SCREW

$7.99

$

In Stock, Qty 10

0

50

Husqvarna 532415585

WASHER.LOCK.INTERNAL.TOOTH

$4.99

$

In Stock, only 2 left!

0

55

Husqvarna 581351301

SPRING.RETURN.AUTO.

$10.99

$

In Stock, only 3 left!

0

51

Husqvarna 532415586

LOCKNUT.HEX.WITH.O-RING

$6.49

$

In Stock, only 4 left!

0

15

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, Qty 6

0

33

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

61

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$7.49

$

In Stock, Qty 6

0

23

Husqvarna 585281901

ADJUSTER.ARM.ASM.LT.SP.HW.BZP

$

$

Not available

22

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

86

Husqvarna 587969201

PULLEY.RWD.IDLER.DBL SEAL

$14.99

$

In Stock, only 4 left!

0

21

Husqvarna 532435242

SCREW.PLASTIC.ANCHOR.5/16

$5.99

$

Usually ships in 3-10 days

0

28

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 589818808

CONTROL.DR.AW2.22+.BLK.GEN

Note: Includes Cable

$47.99

$

Usually ships in 3-10 days

0

32

Husqvarna 585265603

RP_WHEEL.11.RAD3.460.BB2.NEW.H

$34.99

$

In Stock, only 3 left!

0

44

Husqvarna 580364611

BELT V3L 35.42, CLUTCHING COVE
(Superseded to 580364604)

$13.99

$

In Stock, Qty 9

0

35

Husqvarna 532430598

AXLE.REAR.RGD

$45.99

$

Usually ships in 3-10 days

0

27

Husqvarna 819171216

WASHER
(Superseded to 734117771)

$6.49

$

In Stock, only 2 left!

0

16

Husqvarna 532430030

ROD.CONNECTING.RGD.22+.HW.BLAC

$20.99

$

In Stock, only 1 left!

0

13

Husqvarna 581680801

TRANSMISSION.22+AWD.WALK.MOWER

$148.99

$

In Stock, Qty 20+

0

12

Husqvarna 873940800

NUT.HEX.1/2-20

$7.49

$

In Stock, only 4 left!

0

38

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

31

Husqvarna 532404845

PAWL, DRIVE

$5.99

$

In Stock, only 3 left!

0

18

Husqvarna 586691701

KIT.SEL.ASM.22+RG.11"HW.BLKNB

$

$

Not available

11

Husqvarna 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

24

Husqvarna 532433511

BRACKET.WHL.ADJ.9.POS.W/PAD

$15.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532421114

KIT.WASH-OUT.PORT

$24.99

$

In Stock, only 2 left!

0

49

Husqvarna 532419735

FITTING, HOSE, WATER WASHOUT
(Superseded to 532421114)

$24.99

$

In Stock, only 2 left!

0

10

Husqvarna 587249302

BRACKET DUAL TRIGGER CONTROL

$

$

Not available

57

Husqvarna 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

37

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 8

0

14

Husqvarna 586963001

PULLEY.DRIVE.SM.AWD/RWD
(Superseded to 586963002)

$11.99

$

In Stock, Qty 8

0

39

Husqvarna 532407059

SHOULDER BOLT SEMI GIMLET PT.

$6.49

$

In Stock, only 1 left!

0

40

Husqvarna 532410831

WHEEL & TIRES ASSY, FRONT
(Superseded to 532401273)

$37.99

$

In Stock, only 2 left!

0

29

Husqvarna 585270701

COVER.DUST.WHEEL.RGD.HW.NEW

$3.49

$

Usually ships in 3-10 days

0

85

Husqvarna 532439077

BRACKET.FRT.AXLE.SUPPORT

$26.99

$

Usually ships in 3-10 days

0

26

Husqvarna 589318302

BRACKET.TRANS.BELTKEEP.21 RWD

$

$

Not available

58

Husqvarna 532435241

SCREW.12-14X1.500

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532428783

PINION.12.TEETH.RGD.22+HW

$7.99

$

In Stock, Qty 8

0

34

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

59

Husqvarna 532442113

BRACKET.SUPPORT.22+RWGD.BZP

$

$

Not available

25

Husqvarna 581313802

BRACKET.DRIVE.COVER.RGD.

$11.99

$

Usually ships in 3-10 days

0
