HU 700 F (961450009-04) - Husqvarna Walk-Behind Mower (2015-02) DRIVE Parts Diagram

Walk-Behind Mower

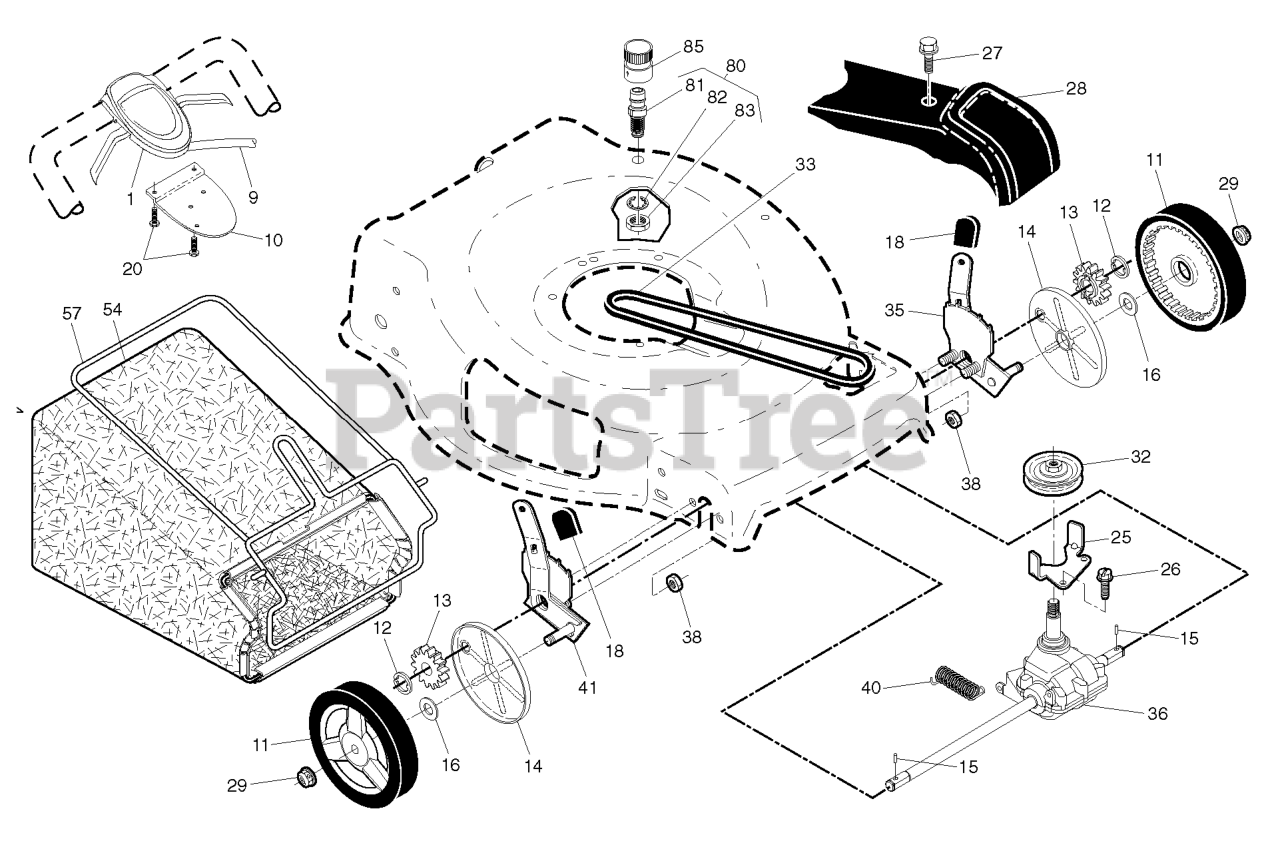

DRIVE Parts Diagram

  • Title

1

Husqvarna 579708909

CONTROL.AW2.22+FG.GEN.BS.BK/BK

$96.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532431649

CABLE.CONTROL.22FGD.GEN2

$60.99

$

In Stock, only 3 left!

0

10

Husqvarna 532432790

BRACKET.DRIVE.CONTR.GEN2.BLACK

$

$

Not available

11

Husqvarna 532411081

WHEEL.8X1.75.H3SPK.RAD3.GY.BU3
(Superseded to 532401274)

$34.99

$

In Stock, Qty 7

0

12

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532403849

PINION.14.TEETH.FGD

$6.99

$

In Stock, Qty 8

0

14

Husqvarna 581840401

COVER.DUST.WHEEL.INNER.WALK

$6.99

$

In Stock, Qty 5

0

15

Husqvarna 532404845

PAWL, DRIVE

$5.99

$

In Stock, Qty 6

0

16

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

18

Husqvarna 532701037

SELECTOR KNOB

$5.99

$

In Stock, only 4 left!

0

20

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$7.49

$

In Stock, Qty 6

0

25

Husqvarna 532431711

BRACKET.BELT.GUIDE.22+FGD.BZP

$

$

Not available

26

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 6

0

27

Husqvarna 532175262

SCREW, HEX HD TAPPING #10-24 1

$7.49

$

Usually ships in 3-10 days

0

28

Husqvarna 586691801

COVER.DR.22.MB LABEL HUSQ E/F

$26.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 532443262

RP PULLEY.DRIVE.EZ/VAR.SCREWON

$13.99

$

In Stock, only 1 left!

0

33

Husqvarna 532426609

BELT.DRIVE.FWD.
(Superseded to 532196853)

$20.99

$

Usually ships in 3-10 days

0

35

Husqvarna 581497904

RP ADJ.ASM.9.22+/LF/RR.21/RF
(Superseded to 581497907)

$

$

Not available

36

Husqvarna 532424741

RB TRANSMISSION.22+.FWGD.SS
(Superseded to 589600601)

$125.99

$

In Stock, only 2 left!

0

38

Husqvarna 532438130

NUT.FLANGE.1-4-20-SERR

$

$

Not available

40

Husqvarna 532406558

SPRING

$8.99

$

In Stock, Qty 7

0

41

Husqvarna 581497903

RP_ADJUSTER.ASM.9.22+/RF/LR.21
(Superseded to 581497908)

$22.99

$

In Stock, Qty 8

0

54

Husqvarna 580947307

GBAG.A3610247T.SILV.HUSWT.BLUE
(Superseded to 580947302)

$87.99

$

Usually ships in 3-10 days

0

57

Husqvarna 585054702

FRAME.GBAG.22+.BLK

$34.99

$

In Stock, Qty 10

0

80

Husqvarna 532438489

KIT.WASH-OUT.PORT.ZINC.WALK

$18.99

$

In Stock, only 1 left!

0

81

Husqvarna 532434994

WASHOUT.PORT.ZINC.RGD.22+
(Superseded to 532438489)

$18.99

$

In Stock, only 1 left!

0

82

Husqvarna 532415585

WASHER.LOCK.INTERNAL.TOOTH

$4.99

$

In Stock, only 2 left!

0

83

Husqvarna 532415586

LOCKNUT.HEX.WITH.O-RING

$6.49

$

In Stock, only 4 left!

0

85

Husqvarna 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 7

0
