HU 675 HWT (961730006-01) - Husqvarna Walk-Behind Mower (2017-01) FRAME Parts Diagram

Walk-Behind Mower

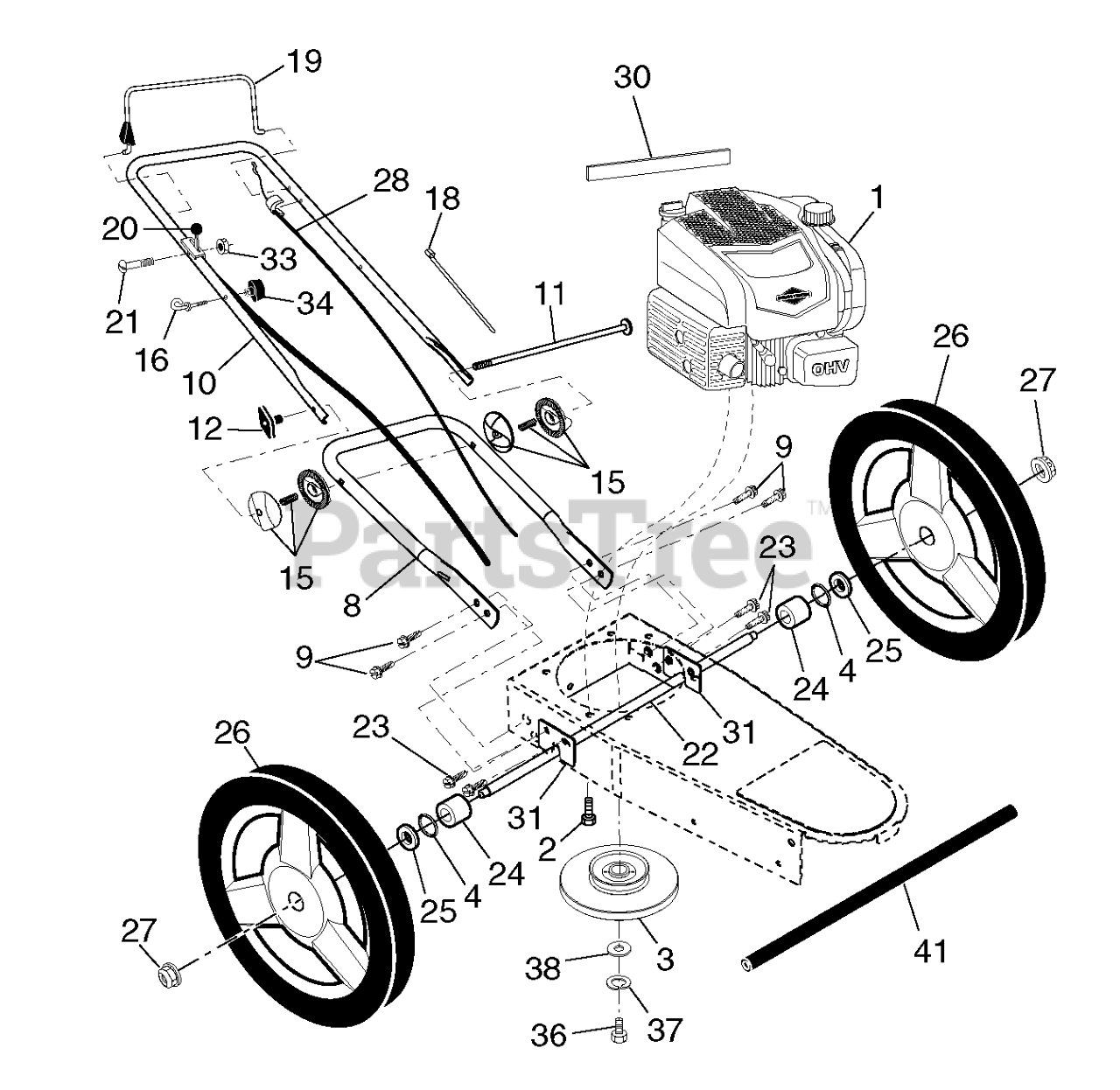

FRAME Parts Diagram

  • Title
30

Husqvarna 501928601

DECAL.TRIMMER.CHASSIS.SYM

$

$

Not available

10

Husqvarna 532446837

HANDLE.UP.STRING.TRIMMER.GREY

Note: UPPER

$72.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

22

Husqvarna 532447829

AXLE.TRIMMER

$

$

Not available

20

Husqvarna 588599201

CONTROL.ENGINE.STOP.BRAKE

$31.99

$

In Stock, only 1 left!

0

41

Husqvarna 532448336

TUBE.AXLE.TRIMMER.BLACK

$14.99

$

Usually ships in 3-10 days

0

16

Husqvarna 581902101

GUIDE.ROPE.BLK.ZINC.CHROM

$

$

Not available

15

Husqvarna 532179751

ADJSTR.ASSEM.HANDLE.WHLD.TRIMM

$21.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532169823

SPACER.AXLE.STRING.TRIMMER

$7.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532446838

HANDLE.LOWER.STRING.TRIMMER.GR

Note: LOWER

$42.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532170980

BOLT.HANDLE.WHEELED.TRIMMER

$6.49

$

In Stock, only 1 left!

0

19

Husqvarna 587564102

BAIL.ARM.ASM.TRIMMER.668

$34.99

$

In Stock, only 1 left!

0

4

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

In Stock, only 1 left!

0

25

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, Qty 5

0

38

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 7

0

31

Husqvarna 532426297

BRACKET, AXLE

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 14

0

12

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$9.49

$

In Stock, Qty 20+

0

33

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

26

Husqvarna 585911001

WHEEL.12X1.75.CF H3SPK.RAD3.BB

$26.99

$

In Stock, Qty 6

0

34

Husqvarna 581912601

T-KNOB.NEW ROPE GUIDE

$4.99

$

In Stock, only 2 left!

0

2

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 14

0

1

000000000

Note: B&S 103M02-0008-F1 FOR SERVICE & PARTS 1-800-233-3723

$

$

Not available

37

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 532179466

PULLEY, ENGINE
(Superseded to 532184130)

$

$

Not available

28

Husqvarna 584954101

CABLE.DRIVE.TRIMMER

$27.99

$

In Stock, only 3 left!

0
