HU 675 F (961430092-00) - Husqvarna Walk-Behind Mower (2011-12) DRIVE Parts Diagram

Walk-Behind Mower

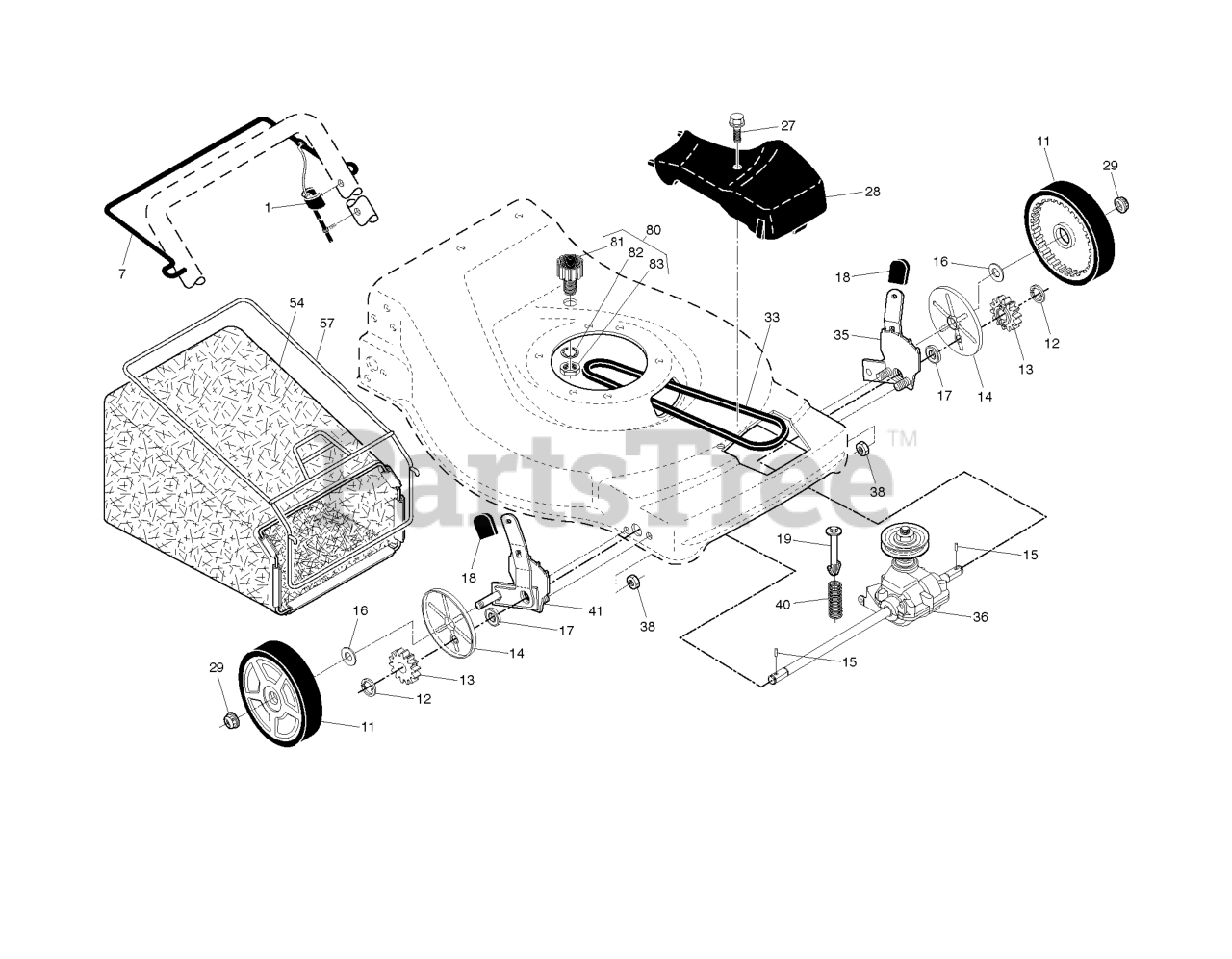

DRIVE Parts Diagram

  • Title
28

Husqvarna 532419195

COVER.DRIVE.TORUS.B&S.MOLDED

$

$

Not available

38

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

15

Husqvarna 532404845

PAWL, DRIVE

$5.99

$

In Stock, only 3 left!

0

11

Husqvarna 532411081

WHEEL.8X1.75.H3SPK.RAD3.GY.BU3
(Superseded to 532401274)

$34.99

$

In Stock, only 1 left!

0

19

Husqvarna 532150495

SPRING RETAINER

$7.49

$

In Stock, only 1 left!

0

36

Husqvarna 532415226

TRANSMISSION.22.FGD/W/PULLEY

$84.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532403849

PINION.14.TEETH.FGD

$6.99

$

In Stock, Qty 8

0

27

Husqvarna 532175262

SCREW, HEX HD TAPPING #10-24 1

$7.49

$

In Stock, only 1 left!

0

16

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

7

Husqvarna 532199093

BAIL.CONT.DR.S/S.ROUND.ORG

$

$

Not available

81

Husqvarna 532419735

FITTING, HOSE, WATER WASHOUT
(Superseded to 532421114)

$24.99

$

In Stock, only 2 left!

0

83

Husqvarna 532415586

LOCKNUT.HEX.WITH.O-RING

$6.49

$

In Stock, only 4 left!

0

35

Husqvarna 532438485

KIT ADJUSTER ASM.438151.

Note: LH

$44.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532137090

SPRING.EXTENSION

$6.49

$

In Stock, only 1 left!

0

18

Husqvarna 532701037

SELECTOR KNOB

$5.99

$

In Stock, only 4 left!

0

80

Husqvarna 532421114

KIT.WASH-OUT.PORT

$24.99

$

In Stock, only 2 left!

0

54

Husqvarna 532425669

GBAG.83230247T.SIL.HUSQ.BLU

$

$

Not available

12

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532146527

BELT THERM .32
(Superseded to 532157769)

$17.99

$

In Stock, only 2 left!

0

1

Husqvarna 532194653

CONTROL.DRIVE.S/SPEED.FWGD

$26.99

$

In Stock, only 1 left!

0

29

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

41

Husqvarna 532438486

KIT ADJUSTER ASM.438148

Note: RH

$

$

Not available

14

Husqvarna 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$6.99

$

In Stock, only 3 left!

0

57

Husqvarna 532411952

FRAME.GBAG.22.EZ.EMPTY.SC

$

$

Not available

82

Husqvarna 532415585

WASHER.LOCK.INTERNAL.TOOTH

$4.99

$

In Stock, only 2 left!

0

17

Husqvarna 532421836

BEARING.ASM.
(Superseded to 587070202)

$14.99

$

In Stock, Qty 15

0
