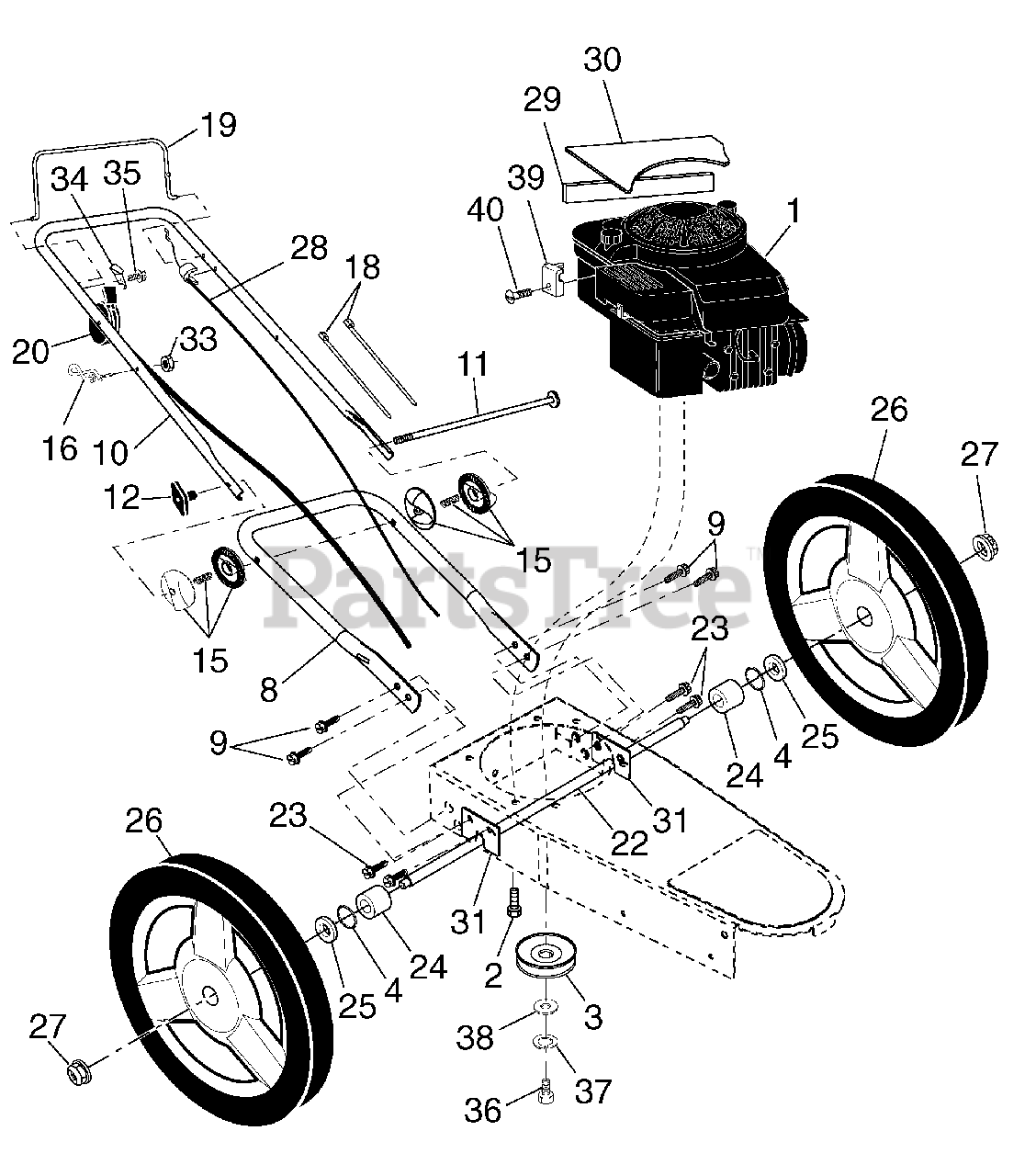

HU 625 WT (961730001-00) - Husqvarna Wheeled Trimmer (2009-11) Frame Parts Diagram

Wheeled Trimmer

Frame Parts Diagram

  • Title

1

Engine, Briggs & Stratton, Model Number 122T02- 1382-B1

Note: (For engine service and replacement parts, call Briggs & Stratton at 1-800-233-3723)

$

$

Not available

2

Husqvarna 532150406

Bolt, Engine Mounting 3/8-16

$7.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532179466

Pulley, Engine
(Superseded to 532184130)

$

$

Not available

4

Husqvarna 532197480

O-Ring

$7.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532186754

Handle, Lower

$18.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532428867

Screw, Hex Washer Head 5/16-18 x 3/4

$6.49

$

In Stock, Qty 15

0

10

Husqvarna 532186755

Handle, Upper

$30.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532170980

Bolt, Handle

$6.49

$

In Stock, only 1 left!

0

12

Husqvarna 532191938

Knob, Handle
(Superseded to 532189713)

$9.49

$

In Stock, Qty 18

0

15

Husqvarna 532179751

Handle Adjuster Assembly

$21.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532194788

Guide, Rope
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

18

Husqvarna 532066426

Wire Tire
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532176983

Control Bar

$

$

Not available

20

Husqvarna 532417238

Throttle Control
(Superseded to 586861201)

$37.99

$

In Stock, Qty 7

0

22

Husqvarna 532169787

Axle Shaft Assembly
(Superseded to 532447829)

$

$

Not available

23

Husqvarna 532428867

Screw, Hex Washer Head 5/16-18 x 3/4

$6.49

$

In Stock, Qty 15

0

24

Husqvarna 532169823

Washer, Axle

$7.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532088348

Washer, Flat 1/2

$7.49

$

In Stock, Qty 6

0

26

Husqvarna 532410815

Wheel & Tire Assembly 12 x 1-3/4
(Superseded to 585911001)

$26.99

$

In Stock, Qty 6

0

27

Husqvarna 532409149

Locknut, Hex 3/8-16

$4.99

$

In Stock, Qty 20+

0

28

Husqvarna 532181699

Drive Control Cable

$31.99

$

In Stock, only 4 left!

0

29

Husqvarna 532406678

Decal, Warning

$36.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532178365

Decal, Warning

$15.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532426297

Bracket, Axle

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532132004

Nut, Hex
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

34

Husqvarna 532430034

Bracket, Upstop

$6.99

$

In Stock, only 3 left!

0

35

Husqvarna 532750634

Screw #10-24 x 5/8

$6.49

$

In Stock, Qty 5

0

36

Husqvarna 532851084

Bolt, Hex Head
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

37

Husqvarna 532850263

Washer, Lock
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 532851074

Washer, Flat, Hardened

$4.99

$

In Stock, only 3 left!

0

39

Husqvarna 532011190

Clamp, Cable

$

$

Currently unavailable

40

Husqvarna 532083816

Screw

$6.49

$

Usually ships in 3-10 days

0

Husqvarna 532177817

Manual, Operator's, English

$

$

Currently unavailable

Husqvarna 532180102

Manual, Operator's, French

$

$

Currently unavailable
