HU 625 WT (961730001-00) - Husqvarna Wheeled Trimmer (2009-11) Cutting Equipment Parts Diagram

Wheeled Trimmer

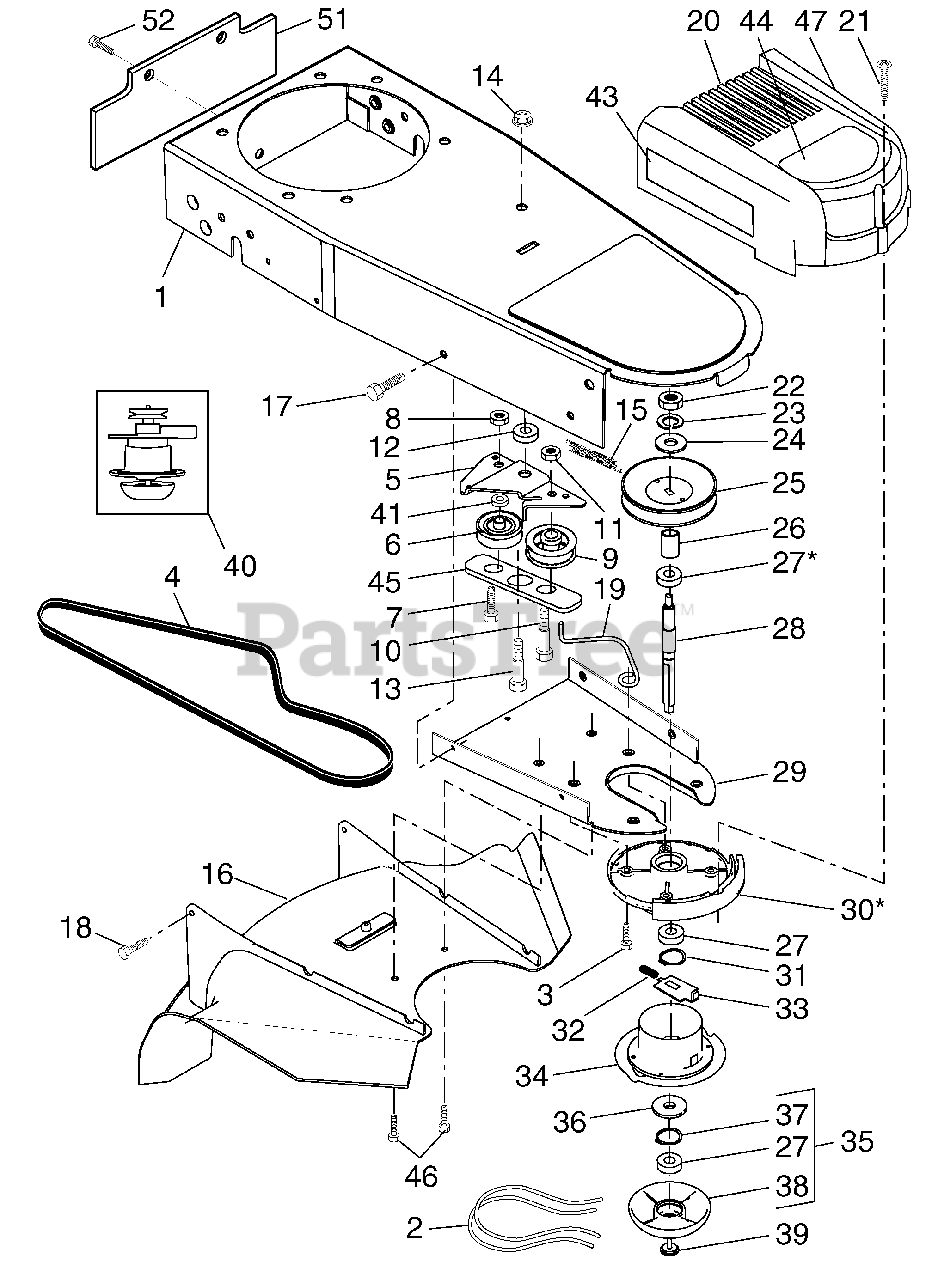

Cutting Equipment Parts Diagram

  • Title

1

Husqvarna 532428913

Chassis Assembly
(Superseded to 581708384)

$62.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532182219

Line, Trimmer .155 diameter x 18.75 long
(Superseded to 580412601)

$11.99

$

In Stock, Qty 20+

0

3

Husqvarna 532173715

Screw, Self-Tapping 5/16-18 x 1

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532185476

V-Belt

$31.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532186751

Bracket, Idler
(Superseded to 586506002)

$

$

Not available

6

Husqvarna 532166042

Pulley, Idler, V-Groove

$26.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532173716

Bolt, Hex Head 3/8-16 x 1.25
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

8

Husqvarna 873930600

Locknut, Hex 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532166043

Pulley, Idler, Flat

$31.99

$

In Stock, only 1 left!

0

10

Husqvarna 532160829

Bolt, Shoulder

$7.49

$

In Stock, only 2 left!

0

11

Husqvarna 873930500

Locknut, Hex 5/16-18

$7.49

$

In Stock, only 1 left!

0

12

Husqvarna 532173717

Spacer

$5.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532174719

Bolt, Shoulder

$9.49

$

In Stock, only 1 left!

0

14

Husqvarna 532409149

Locknut, Flange

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 532173811

Spring, Return

$7.49

$

In Stock, only 2 left!

0

16

Husqvarna 532180268

Defl ector, Bottom

$43.99

$

In Stock, only 1 left!

0

17

Husqvarna 817060410

Screw 1/4-20 x 1/2

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532178848

Screw #10-24 x 3/4

$7.49

$

In Stock, Qty 20+

0

19

Husqvarna 532199574

Belt Keeper

$6.49

$

In Stock, only 1 left!

0

20

Husqvarna 532178390

Cover, Chassis, Top

$26.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532149746

Screw #10-24 x 1-3/4

$7.49

$

In Stock, only 1 left!

0

22

Husqvarna 873610600

Nut, Hex 3/8-24 UNF
(Superseded to 873800600)

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532850263

Washer, Lock 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 819121214

Washer, Flat 3/8
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532180340

Pulley, Driven

$40.99

$

In Stock, only 3 left!

0

26

Husqvarna 532172551

Spacer, Pulley

$7.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532174549

Bearing
(Superseded to 532110485)

$13.99

$

In Stock, only 4 left!

0

28

Husqvarna 532172520

Jackshaft

$66.99

$

In Stock, Qty 7

0

29

Husqvarna 532186752

Cover, Chassis, Bottom

$

$

Not available

30

Husqvarna 532174543

Spindle Housing Assembly

Note: Includes Upper Bearing, Key No. 27

$66.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532174581

Ring, Retaining, External, 17mm

$7.49

$

In Stock, only 1 left!

0

32

Husqvarna 532173973

Spring, Locking Plate

$18.99

$

In Stock, only 2 left!

0

33

Husqvarna 532172519

Locking Plate

$7.49

$

In Stock, Qty 8

0

34

Husqvarna 532180338

Carrier Plate Assembly
(Superseded to 594935003)

$74.99

$

In Stock, Qty 9

0

35

Husqvarna 532182217

Mow Ball Assembly

Note: Includes Key Numbers 27, 37 and 38

$31.99

$

In Stock, Qty 9

0

36

Husqvarna 532172516

Cover, Bearing

$8.99

$

In Stock, only 1 left!

0

37

Husqvarna 532174580

Ring, Retaining, Internal, 40mm

$9.99

$

In Stock, only 2 left!

0

38

Husqvarna 532172523

Mow Ball
(Superseded to 532180337)

$26.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532180334

Bolt, Mow Ball

$12.99

$

In Stock, Qty 6

0

40

Husqvarna 532180333

Spindle Assembly, Complete
(Superseded to 596878501)

Note: Includes Key No. 22-28 and 30-39

$133.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532174029

Spacer

$

$

Not available

43

Husqvarna 532174042

Decal, Instruction

$8.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532428257

Decal, Chassis Cover

$18.99

$

In Stock, only 1 left!

0

45

Husqvarna 532186753

Belt Keeper, Bottom

$

$

Not available

46

Husqvarna 817060408

Screw, Self-Tapping

$5.99

$

In Stock, only 2 left!

0

47

Husqvarna 532174036

Decal, Instruction

$

$

Not available

51

Husqvarna 532189006

Defl ector, Rear

$15.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532178848

Screw

$7.49

$

In Stock, Qty 20+

0
