HU 625 HWT (961730002-03) - Husqvarna Wheeled Trimmer (2012-01) FRAME Parts Diagram

Wheeled Trimmer

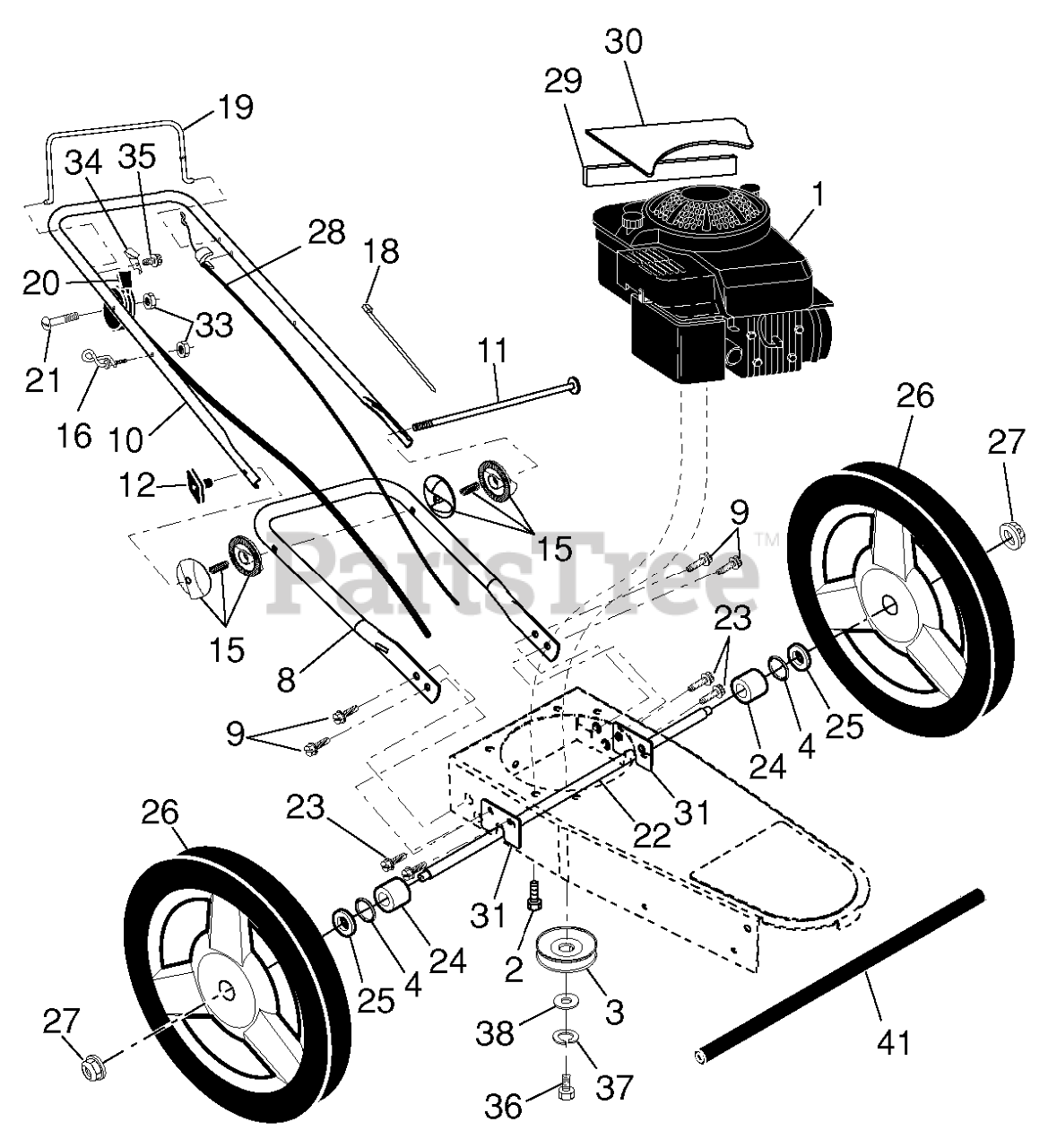

FRAME Parts Diagram

  • Title

30

Husqvarna 532178365

DECAL, WARNING

$15.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532430034

BRACKET.UPSTOP.RT

$6.99

$

In Stock, only 3 left!

0

23

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, only 2 left!

0

26

Husqvarna 532448173

WHEEL.12X1.75.CF.H3SPKRAD3
(Superseded to 585911001)

$26.99

$

In Stock, Qty 6

0

11

Husqvarna 532170980

BOLT.HANDLE.WHEELED.TRIMMER

$6.49

$

In Stock, only 1 left!

0

4

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 1 left!

0

29

Husqvarna 532406678

DECAL, WARNING

$36.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532179751

ADJSTR.ASSEM.HANDLE.WHLD.TRIMM

$21.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532426297

BRACKET, AXLE

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, Qty 6

0

35

Husqvarna 532178848

SCREW

$7.49

$

In Stock, Qty 20+

0

16

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

1

000000000

Note: B&S 122M02-1617-F1 FOR SERVICE & PARTS 1-800-233-3723

$

$

Not available

21

Husqvarna 532158755

SCREW.PAN.HEAD

$

$

Not available

2

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

22

Husqvarna 532169787

AXLE SHAFT ASSEMBLY
(Superseded to 532447829)

$

$

Not available

28

Husqvarna 532181699

CONTROL.DRIVE.TRIMMER.WHEELED

$31.99

$

In Stock, only 4 left!

0

37

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 14

0

12

Husqvarna 532445019

KNOB.WING.PLASTIC.BLACK
(Superseded to 532185577)

$9.49

$

In Stock, Qty 13

0

20

Husqvarna 532417238

RP CONTROL.THRO.S-TRM.SNPIN.BS
(Superseded to 586861201)

$37.99

$

In Stock, Qty 7

0

8

Husqvarna 532446838

HANDLE.LOWER.STRING.TRIMMER.GR

Note: LOWER

$42.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

19

Husqvarna 532176983

BAIL.SPINDLE.ENGAGE.BLACK

$

$

Not available

9

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, only 2 left!

0

10

Husqvarna 532446837

HANDLE.UP.STRING.TRIMMER.GREY

Note: UPPER

$72.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532179466

PULLEY, ENGINE
(Superseded to 532184130)

$

$

Not available

18

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

41

Husqvarna 532448336

TUBE.AXLE.TRIMMER.BLACK

$14.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532169823

SPACER.AXLE.STRING.TRIMMER

$7.99

$

Usually ships in 3-10 days

0
