HU 625 HWT (961730002-03) - Husqvarna Wheeled Trimmer (2012-01) COVER Parts Diagram

Wheeled Trimmer

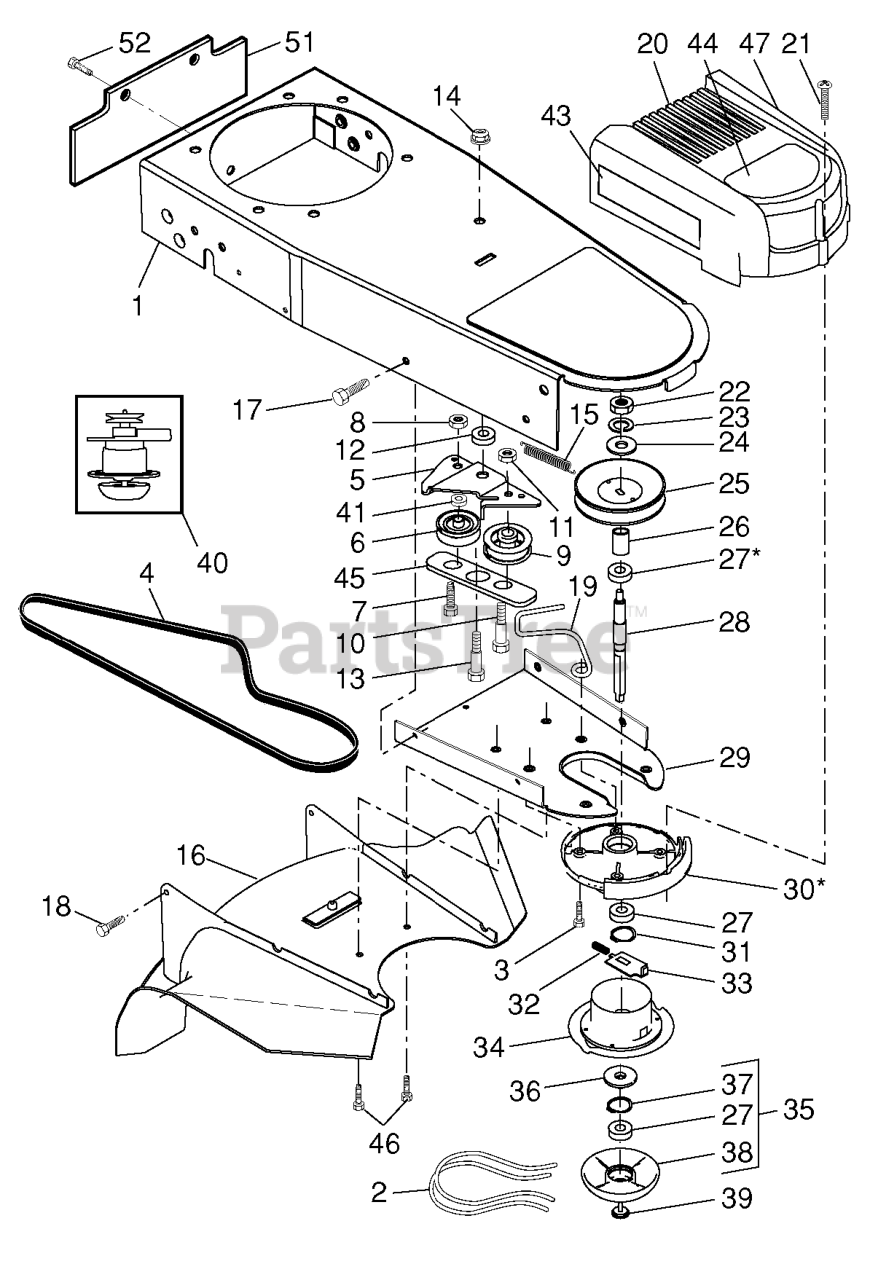

COVER Parts Diagram

  • Title
38

Husqvarna 532172523

MOW BALL
(Superseded to 532180337)

$26.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532182219

LINE.BUND.18PC
(Superseded to 580412601)

$11.99

$

In Stock, Qty 20+

0

28

Husqvarna 532172520

JACKSHAFT.WHEELED.TRIMMER

$66.99

$

In Stock, Qty 7

0

22

Husqvarna 873610600

NUT
(Superseded to 873800600)

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532186753

BRACKET.BELT.KEEPER.BLACK

$

$

Not available

33

Husqvarna 532172519

PLATE.LOCKING.WHEELED.TRIMMER

$7.49

$

In Stock, Qty 8

0

36

Husqvarna 532172516

COVER, BEARING

$8.99

$

In Stock, only 1 left!

0

16

Husqvarna 532180268

DEFLECTOR, BOTTOM

$43.99

$

In Stock, only 1 left!

0

41

Husqvarna 532174029

SPACER (2 2MC)

$

$

Not available

21

Husqvarna 532149746

SCREW.SLOT.TORX.

$7.49

$

In Stock, only 1 left!

0

14

Husqvarna 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

$5.99

$

In Stock, only 2 left!

0

20

Husqvarna 532446665

COVER.SUBASM.COVER/IMD.HUSQ

$72.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532180340

PULLEY.SPINDLE.WHEELED.TRIMMER

$40.99

$

In Stock, only 3 left!

0

17

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532174543

SPINDLE HOUSING ASSEMBLY

$66.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532174581

RING, RETAINING, EXTERNAL,

$7.49

$

In Stock, only 1 left!

0

32

Husqvarna 532173973

SPRING.1.5".COMPRESSION

$18.99

$

In Stock, only 2 left!

0

29

Husqvarna 532186752

CHASSIS.COVER.BOTTOM.BLACK

$

$

Not available

1

Husqvarna 532174031

NEEDS DESCRIPTION

$

$

Currently unavailable

12

Husqvarna 532173717

SPACER.IDLER.BRACKET

$5.99

$

Usually ships in 3-10 days

0

24

Husqvarna 819121214

WASHER, FLAT 3/8
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

51

Husqvarna 532189006

SKIRT.REAR.WHEELED.TRIMME(3 2)

$15.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532185476

BELT-V.STRING TRIMMER.

$31.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532172551

SPACER, PULLEY

$7.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532186751

RP.BRACKET.IDLER.TRIMMER.WHEEL
(Superseded to 586506002)

$

$

Not available

9

Husqvarna 532166043

IDLER PULLEY

$31.99

$

In Stock, only 1 left!

0

40

Husqvarna 532180333

ASM.ADJUSTABLE.SPINDLE.WHLD.TR
(Superseded to 596878501)

$133.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532446567

DECAL.TRIMMER.WHEELED.INSTRUCT

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

39

Husqvarna 532180334

BOLT, MOW BALL

$12.99

$

In Stock, Qty 6

0

$7.49

$

In Stock, Qty 20+

0

11

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

34

Husqvarna 532180338

CARRIER PLATE ASSEMBLY
(Superseded to 594935003)

$74.99

$

In Stock, Qty 9

0

43

Husqvarna 532446568

DECAL.TRIMMER.WHEELED.HEIGHT

$12.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532428677

DECAL.BADGE.55MM.CROWNH.HUSQ

$6.99

$

In Stock, only 2 left!

0

7

Husqvarna 532173716

BOLT, HEX HEAD 3/8-16 X 1.25
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532174580

RING, RETAINING, INTERNAL,

$9.99

$

In Stock, only 2 left!

0

$7.49

$

In Stock, Qty 20+

0

27

Husqvarna 532174549

BEARING
(Superseded to 532110485)

$13.99

$

In Stock, only 4 left!

0

19

Husqvarna 532199574

KEEPER.BELT.STRING.TRIMMER

$6.49

$

In Stock, only 1 left!

0

13

Husqvarna 532174719

BOLT SHOULDER 3/8 -16X1

$9.49

$

In Stock, only 1 left!

0

6

Husqvarna 532166042

PULLEY.V-GROOVE.IDLER

$26.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532160829

SHOULDER BOLT

$7.49

$

In Stock, only 2 left!

0

15

Husqvarna 532173811

SPRING.RETURN.WHEELED.TRIMMER

$7.49

$

In Stock, only 2 left!

0

8

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532173715

BOLT.HEX.HDWSH.5/16-18X1.00

$6.49

$

Usually ships in 3-10 days

0

35

Husqvarna 532182217

MOW BALL ASSEMBLY

$31.99

$

In Stock, Qty 9

0
