HU 600 F (917376971) - Husqvarna Walk-Behind Mower (2011-01) FRAME ENGINE Parts Diagram

Walk-Behind Mower

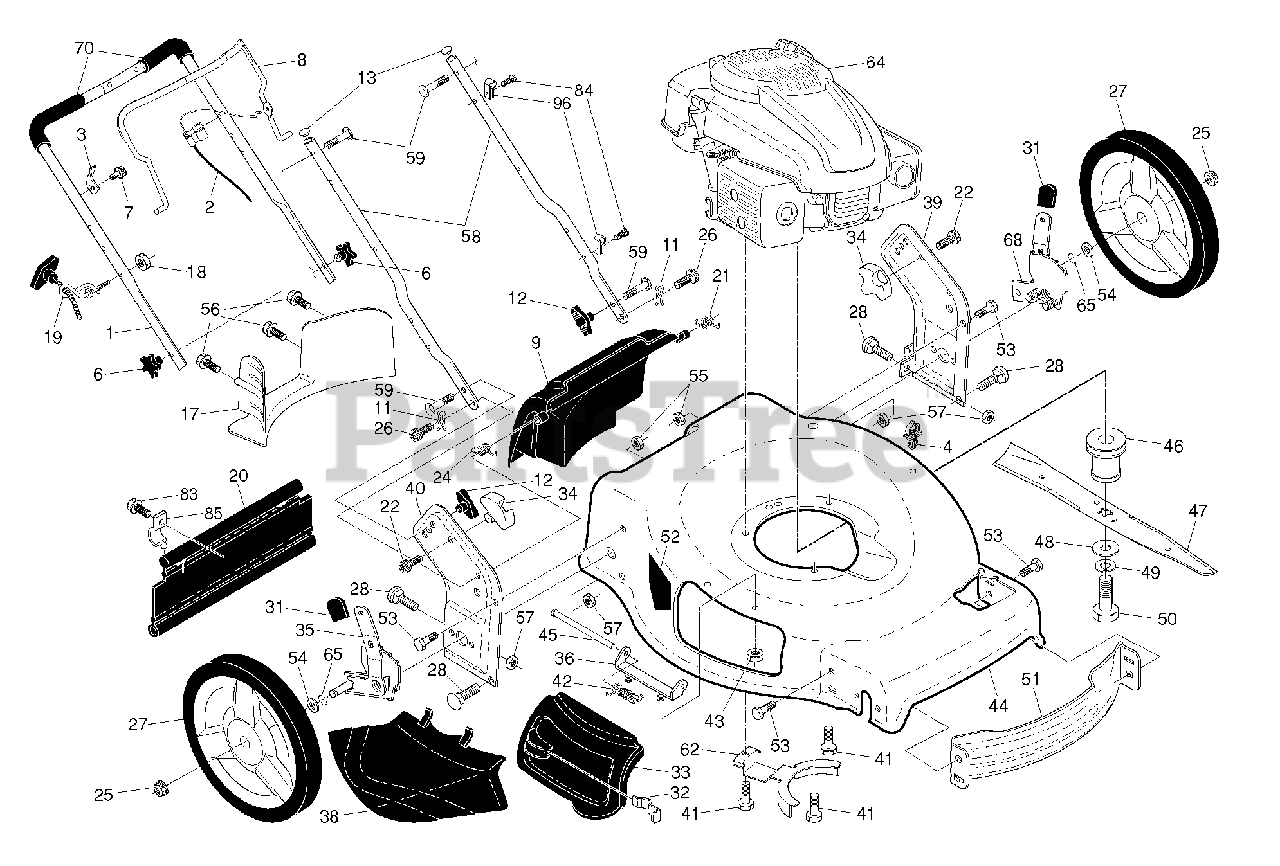

FRAME ENGINE Parts Diagram

  • Title

1

Husqvarna 532427658

HANDLE.ASM.GRY.W/GRIP

Note: . 70

$60.99

$

In Stock, only 1 left!

0

2

Husqvarna 532436813

$

$

Currently unavailable

3

Husqvarna 532430034

BRACKET.UPSTOP.RT

$6.99

$

In Stock, only 3 left!

0

4

Husqvarna 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, only 2 left!

0

7

Husqvarna 532750634

SCREW

$6.49

$

In Stock, Qty 5

0

8

Husqvarna 532433430

BAIL.MZR.EZ2.DSTR.22+.ORG.E

$15.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532431390

DOOR.REAR.ASM.22+.HUSQ.FG/RGD
(Superseded to 593304501)

$45.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532425575

COTTER.HAIRPIN.DOOR/HANDLE.PIV

$6.49

$

In Stock, Qty 17

0

12

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$9.49

$

In Stock, Qty 13

0

13

Husqvarna 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532427307

BAFFLE.22PLUS.FGD.REAR.

$15.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

19

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

20

Husqvarna 532429157

SKIRT.REAR.22PLUS.RGD/FGD.NEW

$17.99

$

In Stock, only 1 left!

0

21

Husqvarna 532419949

SPRING.LH.BLACK

Note: LH

$6.49

$

In Stock, Qty 8

0

22

Husqvarna 532141841

SCREW.PAN.HEAD.#10

$7.49

$

In Stock, only 2 left!

0

24

Husqvarna 532419948

SPRING.RH.GRAY

Note: RH

$6.49

$

In Stock, Qty 8

0

25

Husqvarna 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

26

Husqvarna 532419945

SCREW,DOOR/HANDLE.PIVOT

$6.49

$

In Stock, Qty 20+

0

27

Husqvarna 532410815

WHEEL ASSY
(Superseded to 585911001)

$26.99

$

In Stock, Qty 6

0

28

Husqvarna 872250505

BOLT
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 532701037

SELECTOR KNOB

$5.99

$

In Stock, only 4 left!

0

32

Husqvarna 532441192

LATCH.DOOR.ZINC

$

$

Not available

33

Husqvarna 532419927

DOOR.MULCH.22 PLUS.HUSQ.GREY
(Superseded to 594942002)

$10.99

$

In Stock, Qty 13

0

34

Husqvarna 532438134

BRACKET.GRASSBAG.ATTACHING.BLK

$

$

Not available

35

Husqvarna 532431140

ADJUSTER.ASM.9POS.HW.R/R

Note: RH

$26.99

$

In Stock, only 1 left!

0

36

Husqvarna 532175735

BRACKET.ASM.HINGE.21.FWGD.

$

$

Not available

38

Husqvarna 532426129

DEFLECTOR.CLIPPING.22.BLACK

$11.99

$

In Stock, Qty 6

0

39

Husqvarna 532440525

BRACKET.ASM.HANDLE.LT
(Superseded to 581353702)

Note: LH

$

$

Not available

40

Husqvarna 532440526

RP.BRACKET.ASM.HANDLE.RT.22+.
(Superseded to 581353602)

Note: RH

$

$

Not available

41

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532193000

SPRING.TORSION

$7.49

$

In Stock, only 3 left!

0

43

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

44

Husqvarna 532440510

$

$

Currently unavailable

45

Husqvarna 532175650

ROD.HINGE.21

$7.49

$

In Stock, Qty 10

0

46

Husqvarna 532421782

ADPTER.BLAD.25M.VS.22PLU.STAR
(Superseded to 581473301)

$17.99

$

In Stock, Qty 11

0

47

Husqvarna 532420463

BLADE.22PLUS

$22.99

$

In Stock, only 2 left!

0

48

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 1 left!

0

49

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 14

0

50

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

51

Husqvarna 532430599

BAFFLE.FRONT.22.PLUS

$

$

Not available

52

Husqvarna 532404763

DANGER DECAL
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

53

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

54

Husqvarna 532088348

WASHER PM

$7.49

$

In Stock, Qty 6

0

55

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

56

Husqvarna 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

57

Husqvarna 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532441197

HANDLE.LOWER.22+BT.2PC.GRY

$17.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 2 left!

0

62

Husqvarna 532425711

BRACKET.KEEPER.BELT

$

$

Not available

64

Husqvarna TBD

Note: KOHLER XT149-0311-ED FOR SERVICE PARTS 1-800-544-2444

$

$

Not available

65

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

68

Husqvarna 532431141

ADJUSTER.ASM.9POS.HW.R/L

Note: LH

$34.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532182748

GRIP.HANDLE.FOAM.WIDE.(1 SIDE)

$

$

Not available

83

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 16

0

84

Husqvarna 532428124

FASTENER.PUSH.O.250X0.783

$6.49

$

In Stock, only 2 left!

0

85

Husqvarna 532434530

BRACKET.SKIRT.22+.BZP

$6.49

$

In Stock, Qty 11

0

96

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 6

0
