HU 550 FH (961430125-00) - Husqvarna Walk-Behind Mower (2016-11) DRIVE Parts Diagram

Walk-Behind Mower

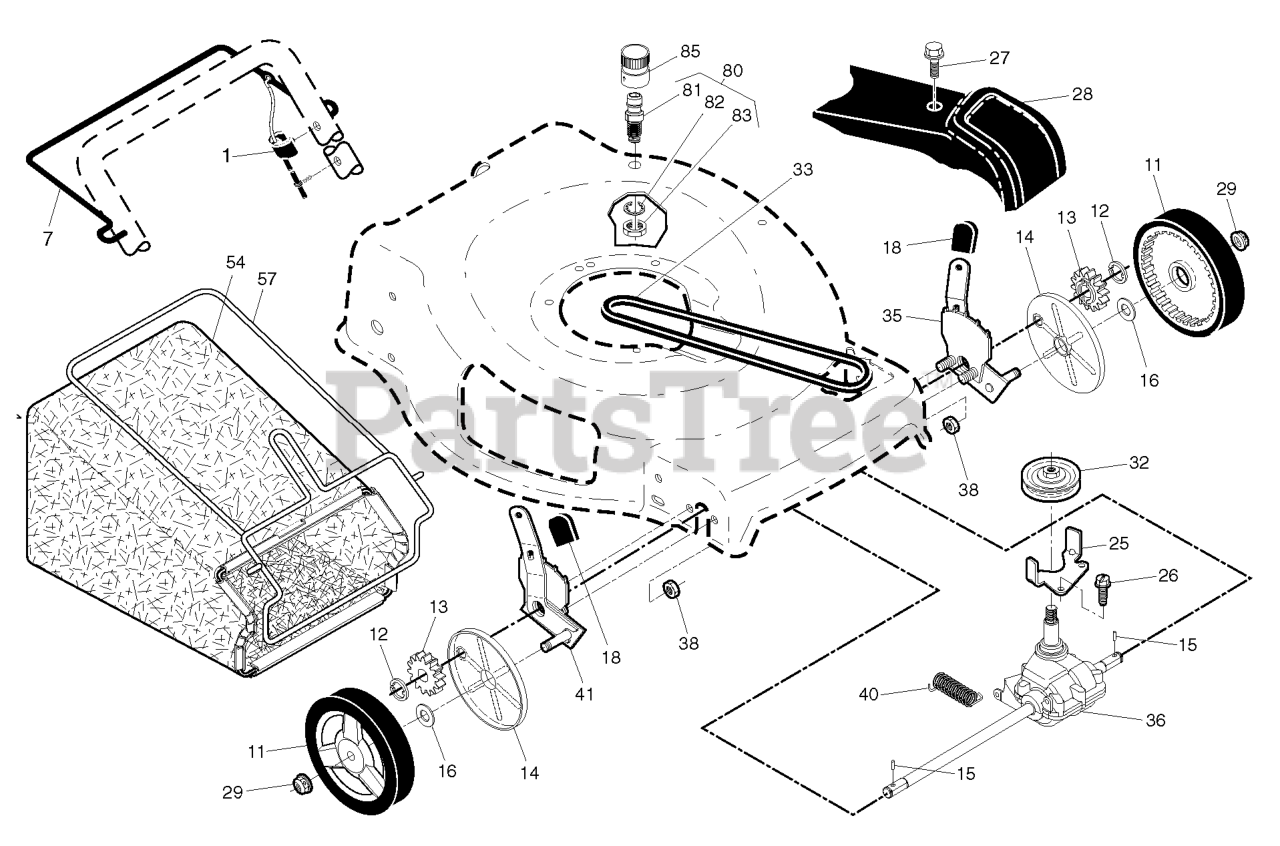

DRIVE Parts Diagram

  • Title
27

Husqvarna 532175262

SCREW, HEX HD TAPPING #10-24 1

$7.49

$

Usually ships in 3-10 days

0

81

Husqvarna 532434994

WASHOUT.PORT.ZINC.RGD.22+
(Superseded to 532438489)

$18.99

$

In Stock, only 1 left!

0

$8.99

$

In Stock, Qty 7

0

83

Husqvarna 532415586

LOCKNUT.HEX.WITH.O-RING

$6.49

$

In Stock, only 4 left!

0

28

Husqvarna 586691801

COVER.DR.22.MB LABEL HUSQ E/F

Note: Includes Mounting Screw & Pushnut

$26.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532411081

WHEEL.8X1.75.H3SPK.RAD3.GY.BU3
(Superseded to 532401274)

$34.99

$

In Stock, Qty 5

0

16

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

35

Husqvarna 581497907

ADJUSTER.ASM.22+FGD.LF /AWD LT

Note: FRONT, LEFT

$

$

Not available

38

Husqvarna 532438130

NUT.FLANGE.1-4-20-SERR

$

$

Not available

7

Husqvarna 532198453

BAIL.CONT.DR.S/S.ROUND.BLACK

$37.99

$

Usually ships in 3-10 days

0

85

Husqvarna 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 6

0

57

Husqvarna 585054702

FRAME.GBAG.22+.BLK

$34.99

$

In Stock, Qty 6

0

80

Husqvarna 532438489

KIT.WASH-OUT.PORT.ZINC.WALK

$18.99

$

In Stock, only 1 left!

0

54

Husqvarna 580947315

GBAG.A361029ER.HUSQ.GRY/SIL
(Superseded to 580947302)

$87.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532424741

RP.TRANSMISSION.22+.FWGD.SS
(Superseded to 589600601)

$125.99

$

In Stock, only 2 left!

0

$7.49

$

In Stock, Qty 6

0

41

Husqvarna 581497908

ADJUSTER.ASM.22+FGD.RF /AWD RT

Note: FRONT, RIGHT

$22.99

$

In Stock, Qty 8

0

13

Husqvarna 532403849

PINION.14.TEETH.FGD

$6.99

$

In Stock, Qty 8

0

18

Husqvarna 532701037

SELECTOR KNOB

$5.99

$

In Stock, only 4 left!

0

32

Husqvarna 586989701

PULLEY.DRIVEN.EZ/VARI (2 2MC)

$7.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532420562

CABLE.DRIV.DUAL.LEVER.BAIL.FGD

$34.99

$

Usually ships in 3-10 days

0

14

Husqvarna 581840401

COVER.DUST.WHEEL.INNER.WALK

$6.99

$

In Stock, Qty 5

0

12

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532196853

BELT.DRIVE.FGD.

$20.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532404845

PAWL, DRIVE

$5.99

$

In Stock, Qty 5

0

82

Husqvarna 532415585

WASHER.LOCK.INTERNAL.TOOTH

$4.99

$

In Stock, only 2 left!

0

25

Husqvarna 532431711

BRACKET.BELT.GUIDE.22+FGD.BZP

$

$

Not available

29

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0
