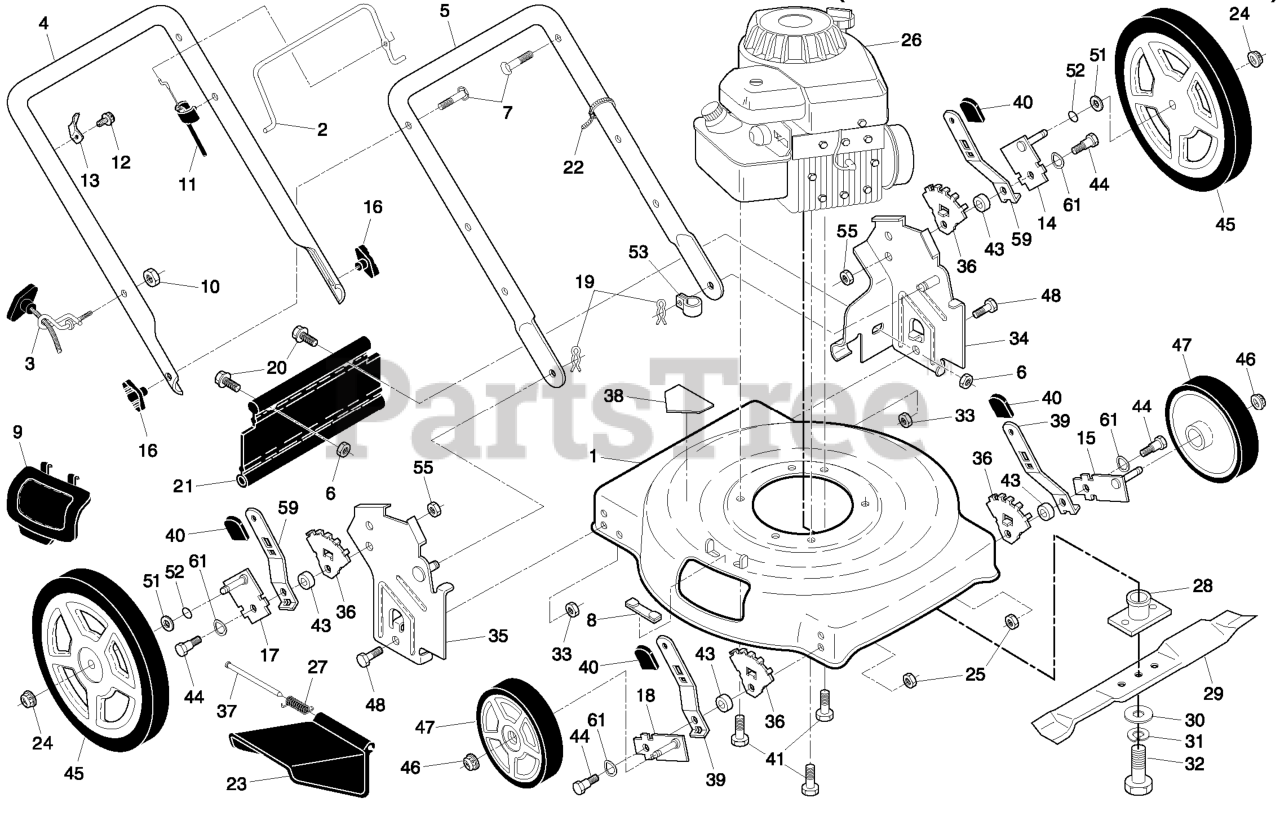

HU 500 N 22 SH (961120075-00) - Husqvarna Walk-Behind Mower (2009-01) Product Complete Parts Diagram

Walk-Behind Mower

Product Complete Parts Diagram

  • Title

1

Husqvarna 164865

Lawn Mower Housing
(Superseded to 583014101)

Note: (Includes Key Number 38)

$132.99

$

Usually ships in 3-10 days

0

2

Husqvarna 194177X428

Control Bar
(Superseded to 532194177)

$

$

Not available

3

Husqvarna 194788

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

4

Husqvarna 194179X479

Upper Handle
(Superseded to 532194179)

$27.99

$

Usually ships in 3-10 days

0

5

Husqvarna 169708X479

Lower Handle
(Superseded to 532174291)

$

$

Not available

6

Husqvarna 73800400

Locknut, Hex 1/4-20
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

7

Husqvarna 191574

Handle Bolt 5/16-18
(Superseded to 532191574)

$6.99

$

In Stock, only 4 left!

0

8

Husqvarna 161622

Clip, Closeout
(Superseded to 532161622)

$14.99

$

In Stock, only 2 left!

0

9

Husqvarna 160830

Mulcher Plate
(Superseded to 532160830)

$

$

Not available

10

Husqvarna 132004

Nut, Hex 1/4-20

$

$

Not available

11

Husqvarna 183281

Engine Zone Control Cable
(Superseded to 532183281)

$17.99

$

In Stock, only 1 left!

0

12

Husqvarna 750634

Hex Washer Head Screw #10-24 x 1/2
(Superseded to 532750634)

$6.49

$

In Stock, Qty 5

0

13

Husqvarna 86899X004

Up-Stop Bracket
(Superseded to 532086899)

$6.99

$

In Stock, only 3 left!

0

14

Husqvarna 401176X004

Axle Arm Assembly, Rear, LH
(Superseded to 532401176)

$6.99

$

Usually ships in 3-10 days

0

15

Husqvarna 401174X004

Axle Arm Assembly, Front, LH
(Superseded to 532401174)

$

$

Not available

16

Husqvarna 189713X428

Knob, Handle
(Superseded to 532185577)

$9.49

$

In Stock, Qty 18

0

17

Husqvarna 401177X004

Axle Arm Assembly, Rear, RH
(Superseded to 532401177)

$

$

Not available

18

Husqvarna 401175X004

Axle Arm Assembly, Front, RH
(Superseded to 532401175)

$6.99

$

In Stock, only 3 left!

0

19

Husqvarna 51793

Hairpin Cotter
(Superseded to 532051793)

$7.49

$

Usually ships in 3-10 days

0

20

Husqvarna 74760412

Screw, Hex Cap Head 1/4-20
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

21

Husqvarna 413160

Rear Skirt
(Superseded to 532413160)

$13.99

$

Usually ships in 3-10 days

0

22

Husqvarna 66426

Wire Tie

$

$

Not available

23

Husqvarna 160831

Discharge Guard
(Superseded to 532160831)

$

$

Not available

24

Husqvarna 409149

Nut, Hex, Flangelock 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 166785

Nut, Hex, Flangelock 5/16-18

$

$

Not available

26

Engine, Briggs & Stratton, Model Number 10T502- 1303-B1 (For engine service and replacement parts, call Briggs & Stratton at 1-800-233-3723)

$

$

Not available

27

Husqvarna 408585

Torsion Spring
(Superseded to 532408585)

$18.99

$

In Stock, only 2 left!

0

28

Husqvarna 851514

Blade Adapter

$

$

Not available

29

Husqvarna 406713

22" Blade

$26.99

$

In Stock, Qty 11

0

30

Husqvarna 851074

Hardened Washer
(Superseded to 532851074)

$4.99

$

In Stock, only 4 left!

0

31

Husqvarna 850263

Helical Lockwasher 3/8

$

$

Not available

32

Husqvarna 851084

Screw, Hex Head, Grade 8, 3/8-24 x 1-3/8
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 73800500

Nut, Hex, Nylock 5/16-18

$

$

Not available

34

Husqvarna 193083X479

Handle Bracket, LH
(Superseded to 532403508)

$15.99

$

Usually ships in 3-10 days

0

35

Husqvarna 193082X479

Handle Bracket, RH
(Superseded to 532403507)

$15.99

$

In Stock, only 1 left!

0

36

Husqvarna 407494X005

Wheel Bracket Adjuster
(Superseded to 532407494)

$4.99

$

In Stock, only 2 left!

0

37

Husqvarna 160833

Hinge Rod
(Superseded to 532160833)

$6.49

$

Usually ships in 3-10 days

0

38

Husqvarna 404763

Danger Decal

$2.49

$

Usually ships in 3-10 days

0

39

Husqvarna 401621X004

Selector Spring, Front
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

40

Husqvarna 87877

Selector Knob
(Superseded to 532087877)

$6.49

$

In Stock, only 1 left!

0

41

Husqvarna 150406

Screw, Hex Head, Threaded, Rolled 3/8-16 x
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

43

Husqvarna 401629

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

44

Husqvarna 401638

Shoulder Bolt 5/16-18
(Superseded to 532401638)

$4.99

$

In Stock, Qty 8

0

45

Husqvarna 193926X427

Wheel & Tire Assembly, Rear, 12"
(Superseded to 581010323)

$40.99

$

Usually ships in 3-10 days

0

46

Husqvarna 409148

Nut, Hex, Flangelock 3/8-16
(Superseded to 532409148)

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 193931X427

Wheel & Tire Assembly, Front, 8"
(Superseded to 583717901)

$12.99

$

Usually ships in 3-10 days

0

48

Husqvarna 74760514

Bolt, Hex Head 5/16-18
(Superseded to 874760514)

$3.99

$

In Stock, only 2 left!

0

51

Husqvarna 88348

Washer, Flat 3/8
(Superseded to 532088348)

$7.49

$

In Stock, Qty 6

0

52

Husqvarna 197480

O-Ring
(Superseded to 532197480)

$7.49

$

Usually ships in 3-10 days

0

53

Husqvarna 197991

Clip, Cable
(Superseded to 532197991)

$7.49

$

In Stock, Qty 6

0

55

Husqvarna 751153

Nut, Hex
(Superseded to 532751153)

$4.99

$

In Stock, only 2 left!

0

59

Husqvarna 401624X004

Selector Spring, Rear
(Superseded to 532401624)

$4.99

$

In Stock, only 1 left!

0

61

Husqvarna 401630

Washer, Flat
(Superseded to 532401630)

$4.99

$

In Stock, only 3 left!

0

Husqvarna 404764

Warning Decal
(Superseded to 532404764)

Note: (not shown)

$8.99

$

Usually ships in 3-10 days

0

Husqvarna 193732

Operator's Manual, English
(Superseded to 917193732)

$5.99

$

Usually ships in 3-10 days

0

Husqvarna 193735

Operator's Manual, Spanish
(Superseded to 917193735)

$5.99

$

Usually ships in 3-10 days

0

Husqvarna 425927

Repair Parts Manual
(Superseded to 917425927)

$3.99

$

Usually ships in 3-10 days

0
