HU 40501 - Husky 5,000 Watt Portable Generator, Revision 03 (2018-05) General Assembly Parts Diagram

5,000 Watt Portable Generator, Revision 03

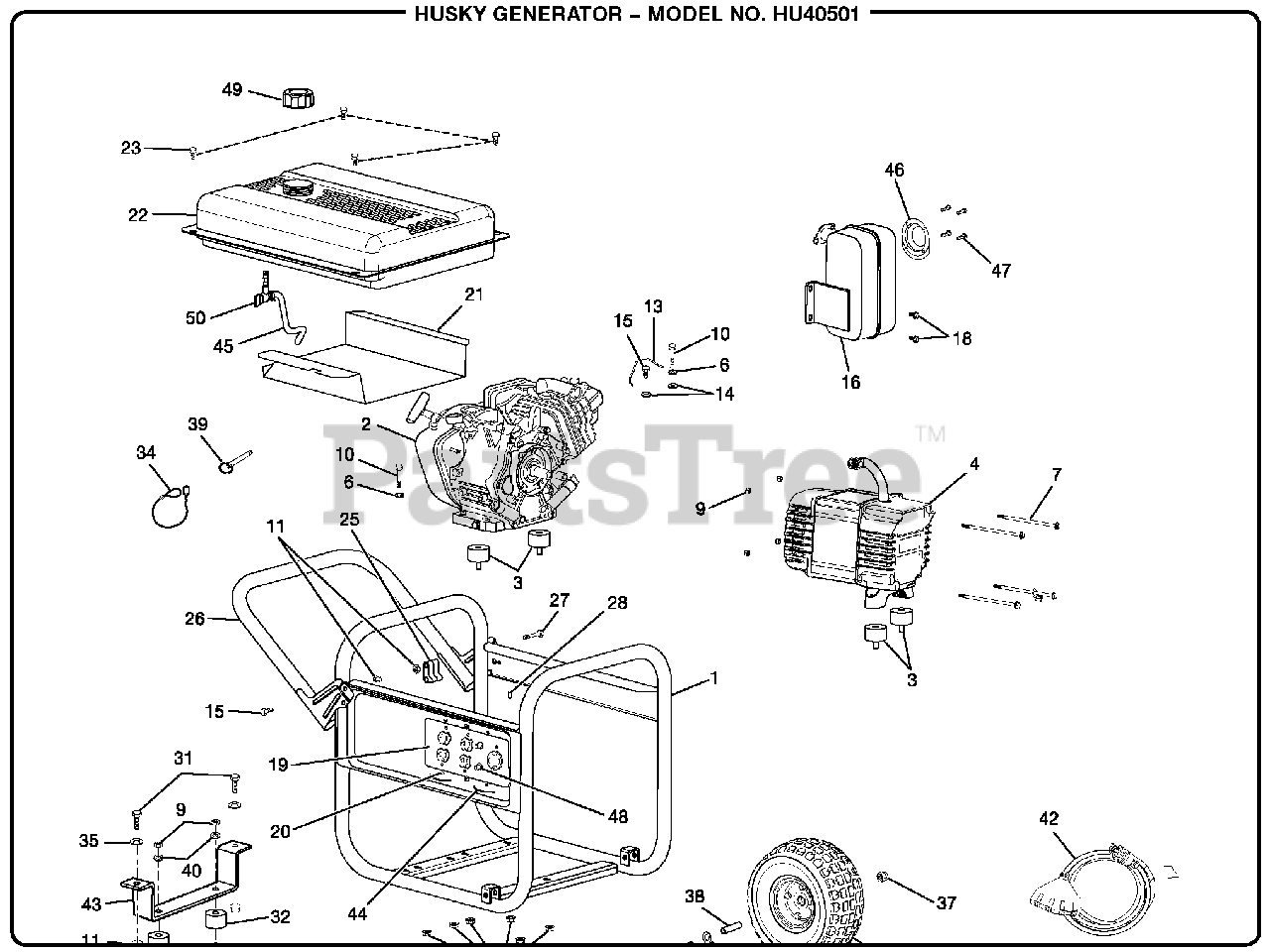

General Assembly Parts Diagram

  • Title

1

Homelite 308447004

Frame Assembly

$

$

Not available

2

Engine (Subaru OHC)

Note: Note A: Techtronic Industries North America, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

3

Homelite 570356001

Isolator

$

$

Not available

4

Homelite 660596003

Bolt (3/8-16 x 3/4 in.)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY

$

$

Not available

5

Homelite 661557006

Bolt (5/16-24 x 6-5/8 in., Hex Hd.)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY

$

$

Not available

6

Lock Washer (5/16 in.)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY, Note B: These are standard parts available at your local hardware store.

$

$

Not available

7

Homelite 660869006

Bolt (1/4-20 x 6 in., Hex Hd.)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 638703001

Ground Lug

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY

$1.49

$

In Stock, only 2 left!

0

10

Bolt (5/16-18 x 1-1/2 in.)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY, Note B: These are standard parts available at your local hardware store.

$

$

Not available

11

Homelite 678457004

Lock Nut (5/16-18)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY

$

$

Not available

12

Homelite 678145002

Flange Nut (5/16-18)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 290404001

Ground Wire Assembly

$

$

Not available

14

Washer (5/16 in.) External Star

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY, Note B: These are standard parts available at your local hardware store.

$

$

Not available

15

Bolt (5/16-18 x 3/4 in., Hex. Hd.)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY, Note B: These are standard parts available at your local hardware store.

$

$

Not available

16

Homelite 309322004

Muffler

$

$

Not available

17

Homelite 638499003

Gasket

$

$

Currently unavailable

18

Homelite 661557007

Bolt (5/16-24 x 5/8 in.)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY

$

$

Not available

19

Homelite 678674001

Wire Panel

$

$

Not available

20

Homelite 661305002

Screw (6-19 x 1/2 in.)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY

$

$

Not available

21

Homelite 638497004

Heat Shield

$

$

Not available

22

Fuel Tank Assembly

Note: Note C: Contact your nearest Husky(R) Service Center for replacement fuel tanks.

$

$

Not available

23

Homelite 660597003

Screw (#10 x 1 in.)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY

$

$

Not available

24

Homelite 678654001

Nut (8 mm)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY

$

$

Currently unavailable

25

Homelite 519789001

Handle Lock Bracket

$

$

Not available

26

Homelite 310224004

Handle

$

$

Not available

27

Bolt (5/16-18 x 1-3/4 in.)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY, Note B: These are standard parts available at your local hardware store.

$

$

Not available

28

Homelite 570364001

Rubber Cap

$

$

Not available

29

Homelite 661557008

Bolt (5/16-24 x 5/8 in.)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY

$

$

Not available

30

Homelite 310223002

Wheel

$

$

Not available

31

Bolt (5/16-18 x 1 in.)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY, Note B: These are standard parts available at your local hardware store.

$

$

Not available

32

Homelite 638706001

Rubber Foot

$17.99

$

Usually ships in 3-7 days

0

33

Washer (3/8 in.)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY, Note B: These are standard parts available at your local hardware store.

$

$

Not available

34

Homelite 310715001

Lanyard

$

$

Not available

35

Homelite 638675004

Washer (5/16 in.)
(Superseded to 638675003)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY

$2.49

$

Usually ships in 3-7 days

0

36

Bolt (3/8-16 x 4-1/4 in.)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY, Note B: These are standard parts available at your local hardware store.

$

$

Not available

37

Homelite 678457003

Lock Nut (3/8-16)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY

$

$

Not available

38

Homelite 678672002

Spacer (.38 ID)

$2.49

$

Usually ships in 3-7 days

0

39

Homelite 310712001

Handle Lock Pin

$1.99

$

In Stock, Qty 5

0

40

Homelite 678473003

End Cap

$

$

Not available

41

Homelite 290404002

Ground Wire Assembly

$2.99

$

Usually ships in 3-7 days

0

42

Homelite 290426001

Extension Cord (25 foot, 20 amp)

$167.99

$

Usually ships in 3-7 days

0

43

Bolt (1/4-20 x 1-1/2 in.)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY, Note B: These are standard parts available at your local hardware store.

$

$

Not available

44

Washer (1/4 in.)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY, Note B: These are standard parts available at your local hardware store.

$

$

Not available

45

Homelite 638709001

Frame Support

$

$

Not available

46

Homelite 678655001

Cord Retainer

$2.49

$

Usually ships in 3-7 days

0

47

Homelite 310725004

Fuel Line Assembly

$12.99

$

In Stock, only 1 left!

0

48

Homelite 638147003

Spark Arrester Screen

$

$

Not available

49

Homelite 661306001

Screw (8-32 x 3/8 in.)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY

$2.99

$

Usually ships in 3-7 days

0

50

Homelite 780351002

Circuit Breaker (25 amp)

$

$

Not available

51

Homelite 310720002

Fuel Cap

$

$

Not available

52

Homelite 519711001

Fuel Shut Off with Filter

$

$

Not available

Homelite 987000366

Operator's Manual (960391003)

$

$

Not available

Homelite 901606006

Lubricant (SAE 10W30)

$

$

Currently unavailable

Homelite 638708002

Carbon Cannister Bracket

$2.99

$

Usually ships in 3-7 days

0

Homelite 310725005

Fuel Line Assembly

$

$

Not available

Homelite 310724003

Carbon Cannister Hose Assembly

$10.99

$

Usually ships in 3-7 days

0

Homelite 310722003

Carbon Cannister Assembly

$

$

Not available

Homelite 310723003

Carbon Cannister, Sentec

$

$

Not available

Homelite 638710001

Rollover Valve, Direct Mount, Sentec

$

$

Not available

940655014

Data Label

$

$

Not available

940705033

Logo Label

$

$

Not available
