HU 40500 G - Husky 5,000 Watt Portable Generator General Assembly (Part 2) Parts Diagram

5,000 Watt Portable Generator

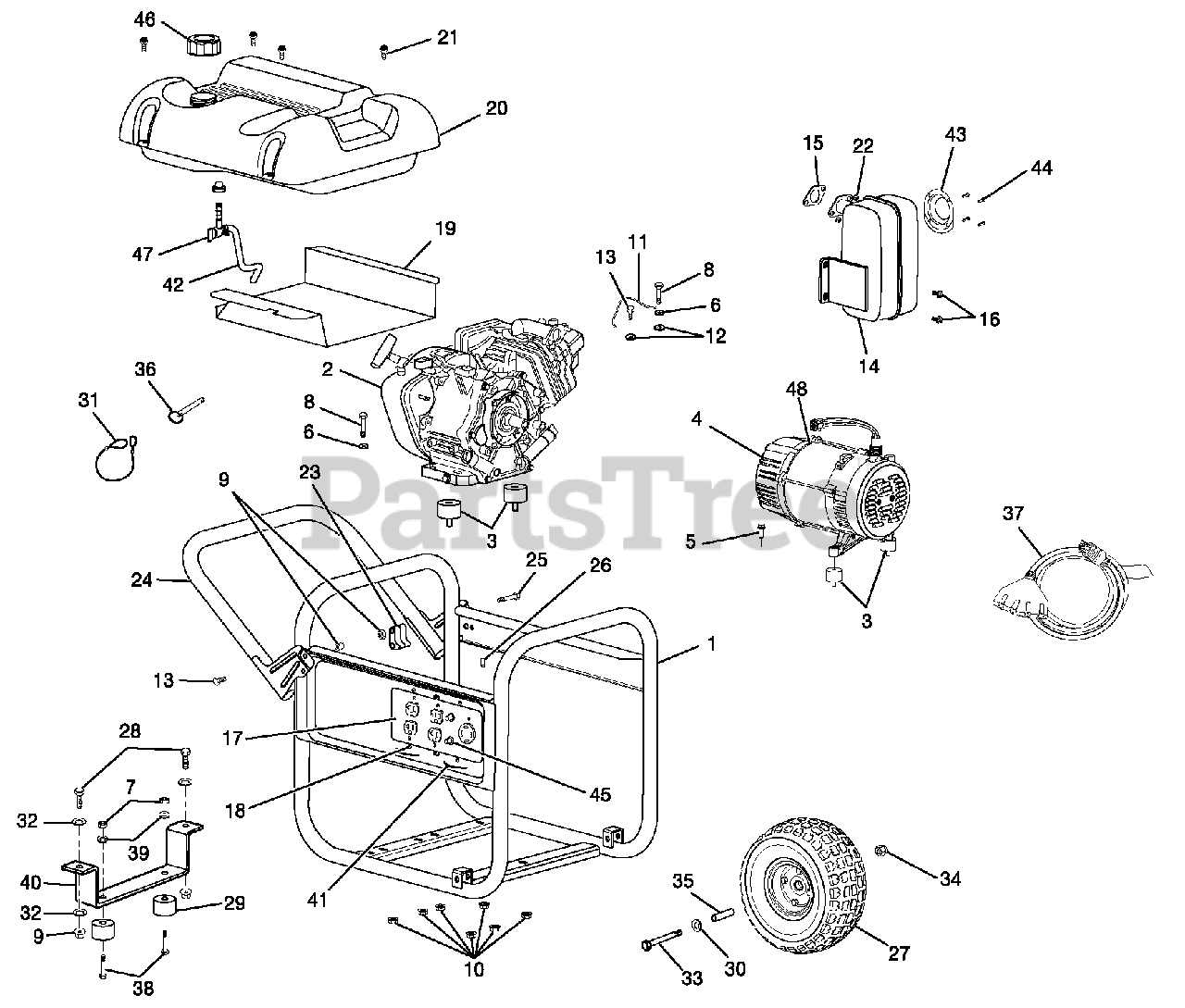

General Assembly (Part 2) Parts Diagram

  • Title

1

Homelite 310222004

Frame Assembly

$

$

Not available

2

Engine (Subaru OHC)

Note: NOTE A: Techtronic Industries North America, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

3

Homelite 570356001

Isolator

$

$

Not available

4

Homelite 310227016

Generator Head Assembly

$533.99

$

In Stock, only 1 left!

0

5

Homelite 661557006

Bolt (5/16-24 x 6-5/8 in., Hex Hd.)

$

$

Not available

6

Homelite 638678002

Lock Washer (5/16 in.)

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

8

Homelite 660591006

Bolt (5/16-18 x 1-1/2 in.)

$2.49

$

In Stock, only 3 left!

0

9

Homelite 678457004

Lock Nut (5/16-18)

$

$

Not available

10

Homelite 678145002

Flange Nut (5/16-18)

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 290404001

Ground Wire Assembly

$

$

Not available

12

Homelite 638704001

Washer (5/16 in.) External Star

$2.99

$

Usually ships in 3-7 days

0

13

Homelite 661502005

Bolt (5/16-18 x 3/4 in., Hex. Hd.)

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 309322004

Muffler

$

$

Not available

15

Homelite 638499003

Gasket

$

$

Currently unavailable

16

Homelite 661557007

Bolt (5/16-24 x 5/8 in.)

$

$

Not available

17

Homelite 678674001

Wire Panel

$

$

Not available

18

Homelite 661305002

Screw (6-19 x 1/2 in.)

$

$

Not available

19

Homelite 638497006

Heat Shield

$

$

Not available

20

Homelite 310711032

Fuel Tank Assembly

$

$

Not available

21

Homelite 660597003

Screw (#10 x 1 in.)

$

$

Not available

22

Homelite 678654001

Nut (8 mm)

$

$

Currently unavailable

23

Homelite 519789001

Handle Lock Bracket

$

$

Not available

24

Homelite 310224022

Handle

$

$

Currently unavailable

25

Homelite 660591010

Bolt (5/16-18 x 1-3/4 in.)

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 570364001

Rubber Cap

$

$

Not available

27

Homelite 310223001

Wheel (10 in.)

$

$

Not available

28

Homelite 660599001

Bolt (5/16-18 x 1 in.)

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 570355001

Rubber Foot

$

$

Not available

30

Homelite 638386003

Washer (3/8 in.)

$2.49

$

Usually ships in 3-7 days

0

31

Homelite 310715001

Lanyard

$

$

Not available

32

Homelite 638675004

Washer (5/16 in.)
(Superseded to 638675003)

$2.49

$

Usually ships in 3-7 days

0

33

Homelite 661558002

Bolt (3/8-16 x 4-1/4 in.)

$5.49

$

Usually ships in 3-7 days

0

34

Homelite 678457003

Lock Nut (3/8-16)

$

$

Not available

35

Homelite 678672002

Spacer (.38 ID)

$2.49

$

Usually ships in 3-7 days

0

36

Homelite 310712001

Handle Lock Pin

$1.99

$

In Stock, Qty 5

0

37

Homelite 290426001

Extension Cord (25 foot, 20 amp)

$167.99

$

Usually ships in 3-7 days

0

38

Homelite 661503003

Bolt (1/4-20 x 1-1/2 in.)

$2.99

$

In Stock, only 4 left!

0

39

Homelite 638387002

Washer (1/4 in.)

$

$

Not available

40

Homelite 638709001

Frame Support

$

$

Not available

41

Homelite 678655001

Cord Retainer

$2.49

$

Usually ships in 3-7 days

0

42

Homelite 310725004

Fuel Line Assembly

$12.99

$

In Stock, only 1 left!

0

43

Homelite 638147003

Spark Arrester Screen

$

$

Not available

44

Homelite 661306001

Screw (8-32 x 3/8 in.)

$2.99

$

Usually ships in 3-7 days

0

45

Homelite 780351002

Circuit Breaker (25 amp)

$

$

Not available

46

Homelite 310720002

Fuel Cap

$

$

Not available

47

Homelite 310728001

Fuel Shut Off with Filter

$

$

Not available

48

Homelite 638545003

Generator Head Cover

$

$

Currently unavailable

Homelite 987000370

Operator's Manual

$

$

Not available

Homelite 901606029

Lubricant (SAE 10W30)

$11.99

$

Usually ships in 3-7 days

0

Homelite 940819002

Cord Warning Label

$

$

Not available

Homelite 961030006

Caution/Danger Hang Tag

$

$

Not available

Homelite 940707007

Large Danger Label

$

$

Not available

Homelite 940974004

Risk of Fire Danger Label

$2.99

$

Usually ships in 3-7 days

0

Homelite 940617032

Starting Label

$

$

Not available

Homelite 940513009

Ground Warning Label

$

$

Not available

Homelite 940680020

Hot Surface Label

$

$

Not available

Homelite 940514004

Lock Pin Label

$

$

Not available

Homelite 940708006

Engine Lubricant Label

$

$

Not available

Homelite 940617029

Quick Start Label

$

$

Not available
