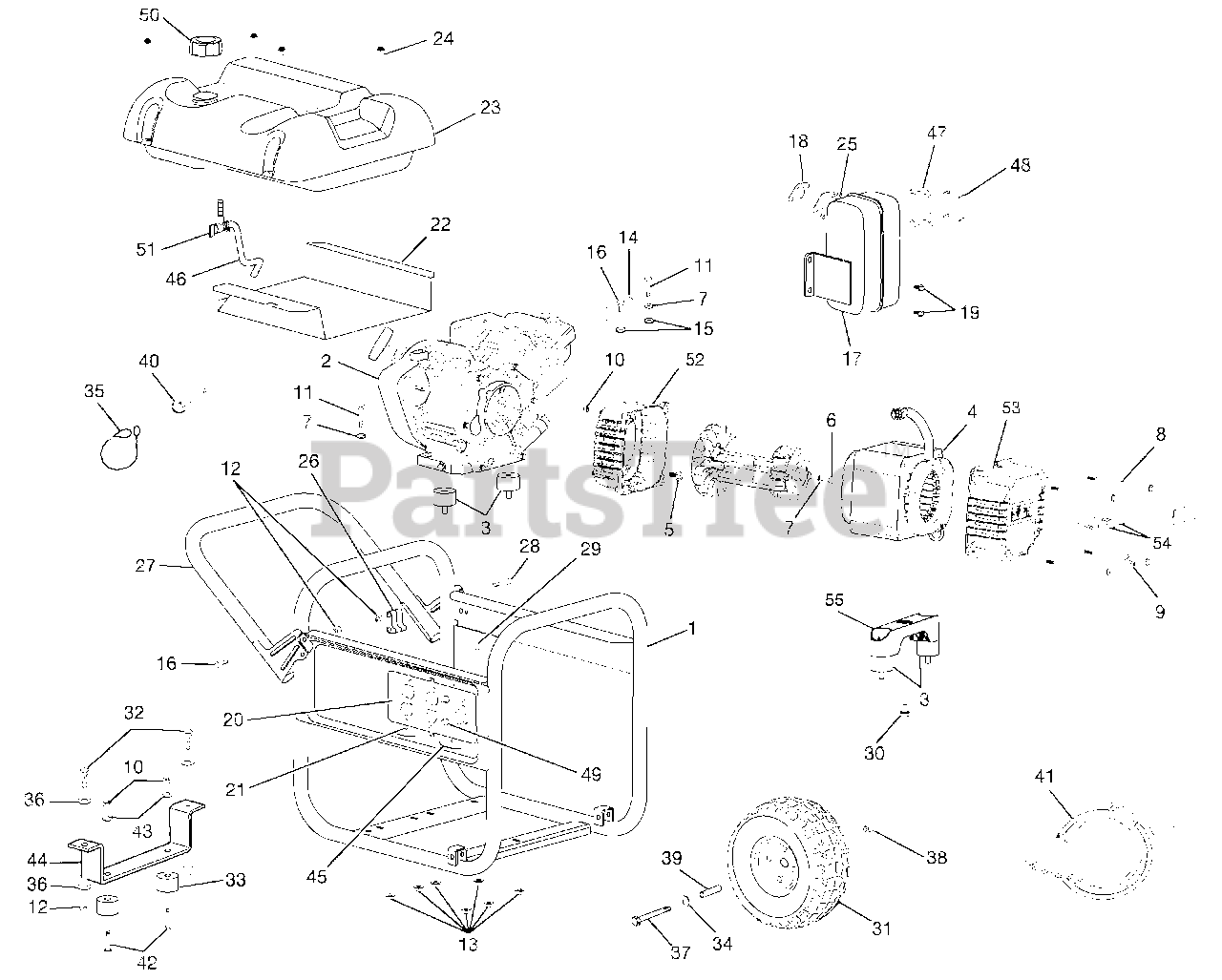

HU 40500 G - Husky 5,000 Watt Portable Generator General Assembly (Part 1) Parts Diagram

5,000 Watt Portable Generator

General Assembly (Part 1) Parts Diagram

  • Title

1

Homelite 310222004

Frame Assembly

$

$

Not available

2

Engine (Subaru OHC)

Note: NOTE A: Techtronic Industries North America, Inc., will not provide engines as replacement parts. engine manual or contact our service department for assistance.

$

$

Not available

3

Homelite 570356001

Isolator

$

$

Not available

4

Homelite 310227009

Generator Head Assembly

$

$

Not available

5

Homelite 660596003

Bolt (3/8-16 x 3/4 in.)

$

$

Not available

6

Homelite 661557006

Bolt (5/16-24 x 6-5/8 in., Hex Hd.)

$

$

Not available

7

Homelite 638678002

Lock Washer (5/16 in.)

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 660869006

Bolt (1/4-20 x 6 in., Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 638703001

Ground Lug

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

11

Homelite 660591006

Bolt (5/16-18 x 1-1/2 in.)

$2.49

$

In Stock, only 3 left!

0

12

Homelite 678457004

Lock Nut (5/16-18)

$

$

Not available

13

Homelite 678145002

Flange Nut (5/16-18)

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 290404001

Ground Wire Assembly

$

$

Not available

15

Homelite 638704001

Washer (5/16 in.) External Star

$2.99

$

Usually ships in 3-7 days

0

16

Homelite 661502005

Bolt (5/16-18 x 3/4 in., Hex. Hd.)

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 309322004

Muffler

$

$

Not available

18

Homelite 638499003

Gasket

$

$

Currently unavailable

19

Homelite 661557007

Bolt (5/16-24 x 5/8 in.)

$

$

Not available

20

Homelite 678674001

Wire Panel

$

$

Not available

21

Homelite 661305002

Screw (6-19 x 1/2 in.)

$

$

Not available

22

Homelite 638497006

Heat Shield

$

$

Not available

23

Homelite 310711032

Fuel Tank Assembly

Note: (Inc. Key Nos. 46 and 50-51)

$

$

Not available

24

Homelite 660597003

Screw (#10 x 1 in.)

$

$

Not available

25

Homelite 678654001

Nut (8 mm)

$

$

Currently unavailable

26

Homelite 519789001

Handle Lock Bracket

$

$

Not available

27

Homelite 310224022

Handle

$

$

Currently unavailable

28

Homelite 660591010

Bolt (5/16-18 x 1-3/4 in.)

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 570364001

Rubber Cap

$

$

Not available

30

Homelite 661557008

Bolt (5/16-24 x 5/8 in.)

$

$

Not available

31

Homelite 310223001

Wheel (10 in.)

$

$

Not available

32

Homelite 660599001

Bolt (5/16-18 x 1 in.)

$2.49

$

Usually ships in 3-7 days

0

33

Homelite 570355001

Rubber Foot

$

$

Not available

34

Homelite 638386003

Washer (3/8 in.)

$2.49

$

Usually ships in 3-7 days

0

35

Homelite 310715001

Lanyard

$

$

Not available

36

Homelite 638675004

Washer (5/16 in.)
(Superseded to 638675003)

$2.49

$

Usually ships in 3-7 days

0

37

Homelite 661558002

Bolt (3/8-16 x 4-1/4 in.)

$5.49

$

Usually ships in 3-7 days

0

38

Homelite 678457003

Lock Nut (3/8-16)

$

$

Not available

39

Homelite 678672002

Spacer (.38 ID)

$2.49

$

Usually ships in 3-7 days

0

40

Homelite 310712001

Handle Lock Pin

$1.99

$

In Stock, Qty 5

0

41

Homelite 290426001

Extension Cord (25 foot, 20 amp)

$167.99

$

Usually ships in 3-7 days

0

42

Homelite 661503003

Bolt (1/4-20 x 1-1/2 in.)

$2.99

$

In Stock, only 4 left!

0

43

Homelite 638387002

Washer (1/4 in.)

$

$

Not available

44

Homelite 638709001

Frame Support

$

$

Not available

45

Homelite 678655001

Cord Retainer

$2.49

$

Usually ships in 3-7 days

0

46

Homelite 310725004

Fuel Line Assembly

$12.99

$

In Stock, only 1 left!

0

47

Homelite 638147003

Spark Arrester Screen

$

$

Not available

48

Homelite 661306001

Screw (8-32 x 3/8 in.)

$2.99

$

Usually ships in 3-7 days

0

49

Homelite 780351002

Circuit Breaker (25 amp)

$

$

Not available

50

Homelite 310720002

Fuel Cap

$

$

Not available

51

Homelite 310728001

Fuel Shut Off with Filter

$

$

Not available

52

Homelite 640331001

Adapter Housing

$76.99

$

Usually ships in 3-7 days

0

53

Homelite 290442001

End Bell

$

$

Not available

54

Homelite 308445002

Brush Assembly

$7.99

$

Usually ships in 3-7 days

0

55

Homelite 519845001

Bracket

$

$

Not available

Homelite 987000370

Operator's Manual

$

$

Not available

Homelite 901606029

Lubricant (SAE 10W30)

$11.99

$

Usually ships in 3-7 days

0

Homelite 940819002

Cord Warning Label

$

$

Not available

Homelite 961030006

Caution/Danger Hang Tag

$

$

Not available

Homelite 940707007

Large Danger Label

$

$

Not available

Homelite 940974004

Risk of Fire Danger Label

$2.99

$

Usually ships in 3-7 days

0

Homelite 940617032

Starting Label

$

$

Not available

Homelite 940513009

Ground Warning Label

$

$

Not available

Homelite 940680020

Hot Surface Label

$

$

Not available

Homelite 940514004

Lock Pin Label

$

$

Not available

Homelite 940708006

Engine Lubricant Label

$

$

Not available

Homelite 940617029

Quick Start Label

$

$

Not available

Homelite 290443001

Bridge Rectifier Assembly

$

$

Not available
