HU 40181 - Husky Portable Generator General Assembly Parts Diagram

Portable Generator

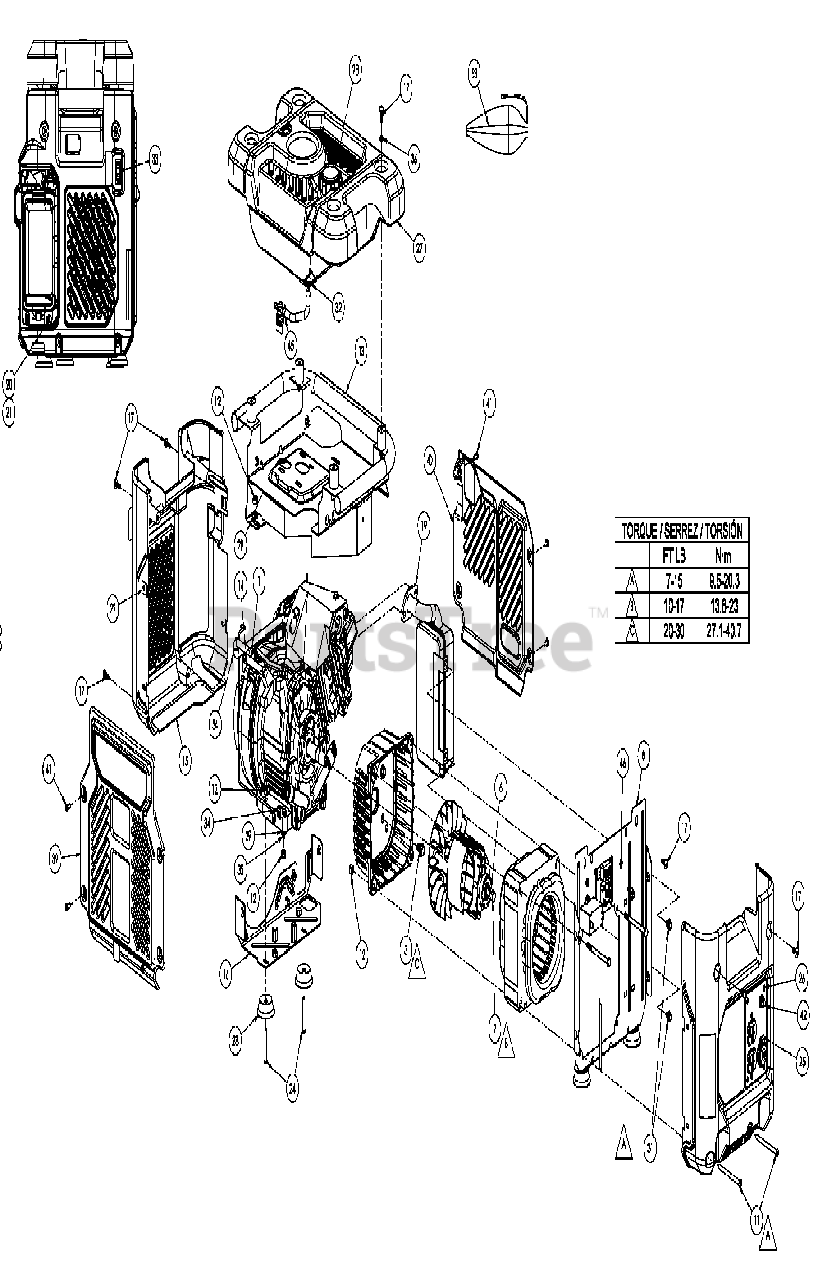

General Assembly Parts Diagram

  • Title

1

Engine, Subaru

$

$

Not available

3

Homelite 660599002

Bolt Whz 5/16-24 x 5/8

$2.99

$

Usually ships in 3-7 days

0

6

Washer, lock 5/16

$

$

Not available

7

Homelite 661557005

Bolt, rotor 5/16-24 x 5-3/4

$

$

Currently unavailable

11

Homelite 661501003

Screw, Torx T30 1/4-20 x 3.50

$3.99

$

Usually ships in 3-7 days

0

12

Homelite 678016006

Nut, Nyloc 1/4-20
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

13

Homelite 310224005

Assembly, handle bracket

$

$

Currently unavailable

14

Washer, flat 1/4

$

$

Not available

15

Homelite 308660002

Panel, recoil

$61.99

$

Usually ships in 3-7 days

0

16

Homelite 310730001

Bracket, recoil

$

$

Not available

17

Homelite 661501004

Screw, Torx T30 1/4-20 x .63

$

$

Not available

19

Homelite 309322003

Muffler

$

$

Not available

20

Homelite 678672003

Spacer

$

$

Not available

21

Homelite 661501005

Screw, Torx T30 1/4-20 x 1.25

$

$

Not available

22

Homelite 678745002

Clip

$

$

Not available

23

Homelite 308909004

Foot, rubber 106-W

$

$

Not available

24

Homelite 661501006

Screw, Torx T30 1/4-20 x 1.50

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 290403004

Panel, wired

$

$

Not available

26

Homelite 661305001

Screw #6-19 x .50

$

$

Not available

27

Assy, fuel tank

$

$

Not available

28

Homelite 310720002

Cap, fuel

$

$

Not available

29

Note B

Bolt, hex 1/4-20 x 1-1/4

$

$

Not available

31

Homelite 661302002

Bolt, Whz 1/4-20 x 3/8

$

$

Not available

32

Homelite 519711001

Filter, fuel valve and washer

$

$

Not available

33

Homelite 760504002

Switch, rocker

$

$

Not available

34

Homelite 638703001

Lug, ground

$2.49

$

Usually ships in 3-7 days

0

35

Bolt, hex 1/4-20 x 1-1/2

$

$

Not available

36

Homelite 519788001

Washer nylon .25 ID

$

$

Not available

39

Homelite 519787001

Panel side cover

$

$

Not available

40

Homelite 638707001

Shield, muffler

$

$

Not available

41

Homelite 661303001

Screw, Torx T20 #10-24 x .50

$1.49

$

Usually ships in 3-7 days

0

45

Homelite 678408006

Clamp, hose 1/2"

$3.49

$

In Stock, only 1 left!

0

46

Homelite 661304001

Screw CRPH #10-24 x .50

$2.49

$

Usually ships in 3-7 days

0

53

Homelite 290425001

Assembly, battery cable

$

$

Not available

54

Homelite 310725003

Assembly, fuel line

$

$

Not available

Homelite 987000364

Operator's manual

Note: (Not Shown)

$

$

Not available

Homelite 638708001

Bracket, carbon cannister

Note: (Not Shown)

$

$

Not available

Homelite 310725002

Assy, fuel line

Note: (Not Shown)

$32.99

$

Usually ships in 3-7 days

0

Homelite 310724002

Assy, carbon cannister hose

Note: (Not Shown)

$7.99

$

Usually ships in 3-7 days

0

Homelite 310722002

Assy, carbon cannister

Note: (Not Shown)

$

$

Not available

Homelite 310723002

Carbon cannister 380cc, Sentec

Note: (Not Shown)

$

$

Not available

Homelite 310721001

Valve rollover, direct mount, Sentec

Note: (Not Shown)

$

$

Not available

Homelite 570363001

Bushing, rollover valve, Sentec
(Superseded to 638711001)

Note: (Not Shown)

$

$

Not available

Homelite 940705027

Logo label (front)

Note: (Not Shown)

$

$

Not available

Homelite 940705028

Logo label (side)

Note: (Not Shown)

$

$

Not available

Homelite 940707005

Large danger label

Note: (Not Shown)

$

$

Not available

Homelite 940654075

Cord warning label

Note: (Not Shown)

$3.49

$

Usually ships in 3-7 days

0

Homelite 940974004

Risk of fire danger label

Note: (Not Shown)

$2.99

$

Usually ships in 3-7 days

0

Homelite 940680018

Hot surface/ground warning label

Note: (Not Shown)

$3.99

$

Usually ships in 3-7 days

0

Homelite 940518001

Indoor use danger label

Note: (Not Shown)

$2.99

$

Usually ships in 3-7 days

0

Homelite 940971020

Indoor use danger hang tag (Spanish)

Note: (Not Shown)

$1.99

$

Usually ships in 3-7 days

0

Homelite 940513005

Ground label

Note: (Not Shown)

$

$

Not available

Homelite 940617032

Starting label

Note: (Not Shown)

$

$

Not available
