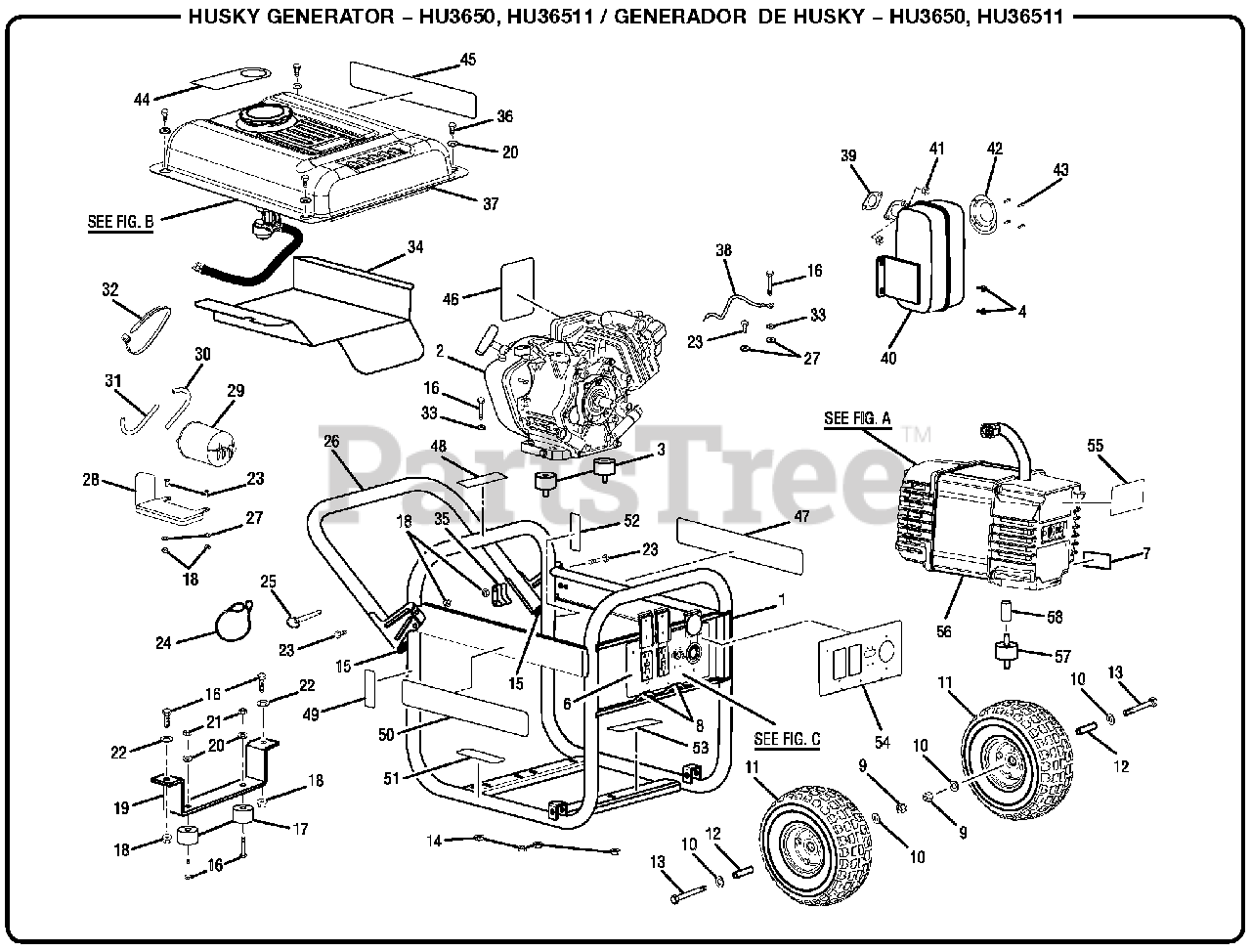

HU 36511 - Husky 3,650 Watt Portable Generator General Assembly Parts Diagram

3,650 Watt Portable Generator

General Assembly Parts Diagram

  • Title

1

Homelite 310222003

Carrier Assembly

$

$

Not available

2

Engine (Subaru OHC)

Note: Techtronic Industries North America, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

3

Homelite 570356001

Isolator

$

$

Not available

4

Homelite 660599002

Bolt (5/16-24 x 5/8 in.)

$2.99

$

Usually ships in 3-7 days

0

5

Homelite 660591004

Bolt (5/16-18 x 2-1/4 in., Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 290403003

Control Panel (HU3650, See Fig. C)
(Superseded to 290403014)

$338.99

$

Usually ships in 3-7 days

0

Homelite 290403014

Control Panel (HU36511, See Fig. C)

$338.99

$

Usually ships in 3-7 days

0

7

Homelite 940513005

Ground Label

$

$

Not available

8

Homelite 678655001

Cord Retainer

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 678457003

Lock Nut (3/8-16)

$

$

Not available

10

Homelite 638386003

Washer (3/8 in.)

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 310223002

Wheel

$

$

Not available

12

Homelite 678672002

Spacer (3/8 in. ID)

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 661558002

Bolt (3/8-16 x 4-1/4 in.)

$5.49

$

Usually ships in 3-7 days

0

14

Homelite 678259003

Lock Nut (5/16-18)

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 519712001

End Cap

$

$

Not available

16

Homelite 660591006

Bolt (5/16-18 x 1-1/2 in.)

$2.49

$

In Stock, only 3 left!

0

17

Homelite 570355001

Rubber Foot

$

$

Not available

18

Homelite 678145002

Flange Nut (5/16-18)

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 638706001

Foot Bracket

$17.99

$

Usually ships in 3-7 days

0

20

Homelite 638387002

Washer (1/4 in.)

$

$

Not available

21

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

22

Homelite 638675004

Washer (5/16 in.)
(Superseded to 638675003)

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 661502005

Bolt (5/16-18 x 3/4 in., Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 310715001

Lanyard

$

$

Not available

25

Homelite 310712001

Release Pin

$1.99

$

In Stock, Qty 5

0

26

Homelite 310224003

Handle

$

$

Not available

27

Homelite 638704001

External Star Washer (5/16 in.)

$2.99

$

Usually ships in 3-7 days

0

28

Homelite 638708004

Bracket (HU36511, Carb Canister)

$

$

Not available

29

Homelite 310723003

Canister (HU36511)

$

$

Not available

30

Homelite 570358030

Purge Hose (HU36511)

$

$

Not available

31

Homelite 638710001

Rollover Hose (HU36511)

$

$

Not available

32

Homelite 900333012

Cable Tie (18.6 in.) (HU36511)

$3.49

$

Usually ships in 3-7 days

0

33

Homelite 638578002

Lock Washer (5/16 in.)

$7.99

$

Usually ships in 3-7 days

0

34

Homelite 638497002

Heat Shield

$

$

Not available

35

519728001

Handle Bracket Spacer

$

$

Not available

36

Homelite 661503005

Bolt (1/4-20 x 1 in.)

$2.49

$

In Stock, only 2 left!

0

37

Homelite 310711028

Fuel Tank Assembly (HU3650, See Fig. B)

$

$

Not available

Homelite 310711029

Fuel Tank Assembly (HU36511, See Fig. B)

$

$

Not available

38

Homelite 290404001

Ground Wire Assembly

$

$

Not available

39

Homelite 901687001

Gasket

$

$

Not available

40

Homelite 309323001

Muffler

$

$

Not available

41

Homelite 678654001

Hex Nut (8 mm)

$

$

Currently unavailable

42

Homelite 638682002

Spark Screen
(Superseded to 638147003)

$

$

Not available

43

Homelite 661300001

Screw (#8 x 3/8 in.)

$

$

Not available

44

Homelite 961030006

Danger Hang Tag

$

$

Not available

45

Homelite 940617029

Quick Start Label

$

$

Not available

46

Homelite 940617032

Start Label

$

$

Not available

47

Homelite 940707007

Danger Label

$

$

Not available

48

Homelite 940974004

Fire Danger Label

$2.99

$

Usually ships in 3-7 days

0

49

Homelite 940514004

Lock Pin Label

$

$

Not available

50

Homelite 940705043

Logo Label

$

$

Not available

51

Homelite 940708006

Engine Lubricant Label

$

$

Not available

52

Homelite 940680020

Hot Surface Label

$

$

Not available

53

Homelite 940513009

Ground Warning Label

$

$

Not available

54

Homelite 940780006

Control Panel Label (HU3650)

$

$

Not available

Homelite 940780009

Control Panel Label (HU36511)

$

$

Currently unavailable

55

Homelite 940678066

Data Label (HU3650)

$

$

Currently unavailable

Homelite 940678067

Data Label (HU36511)

$

$

Currently unavailable

56

Homelite 310277008

Generator Head Assembly (See Fig. A)
(Superseded to 310227015)

$

$

Not available

57

Homelite 570356002

Isolator

$

$

Not available

58

Homelite 678672001

Spacer (3/8 in. ID)

$2.49

$

Usually ships in 3-7 days

0

Homelite 987000807

Operator's Manual (HU3650)

Note: NOT SHOWN

$

$

Not available

Homelite 987000715

Operator's Manual (HU36511)

$

$

Currently unavailable
