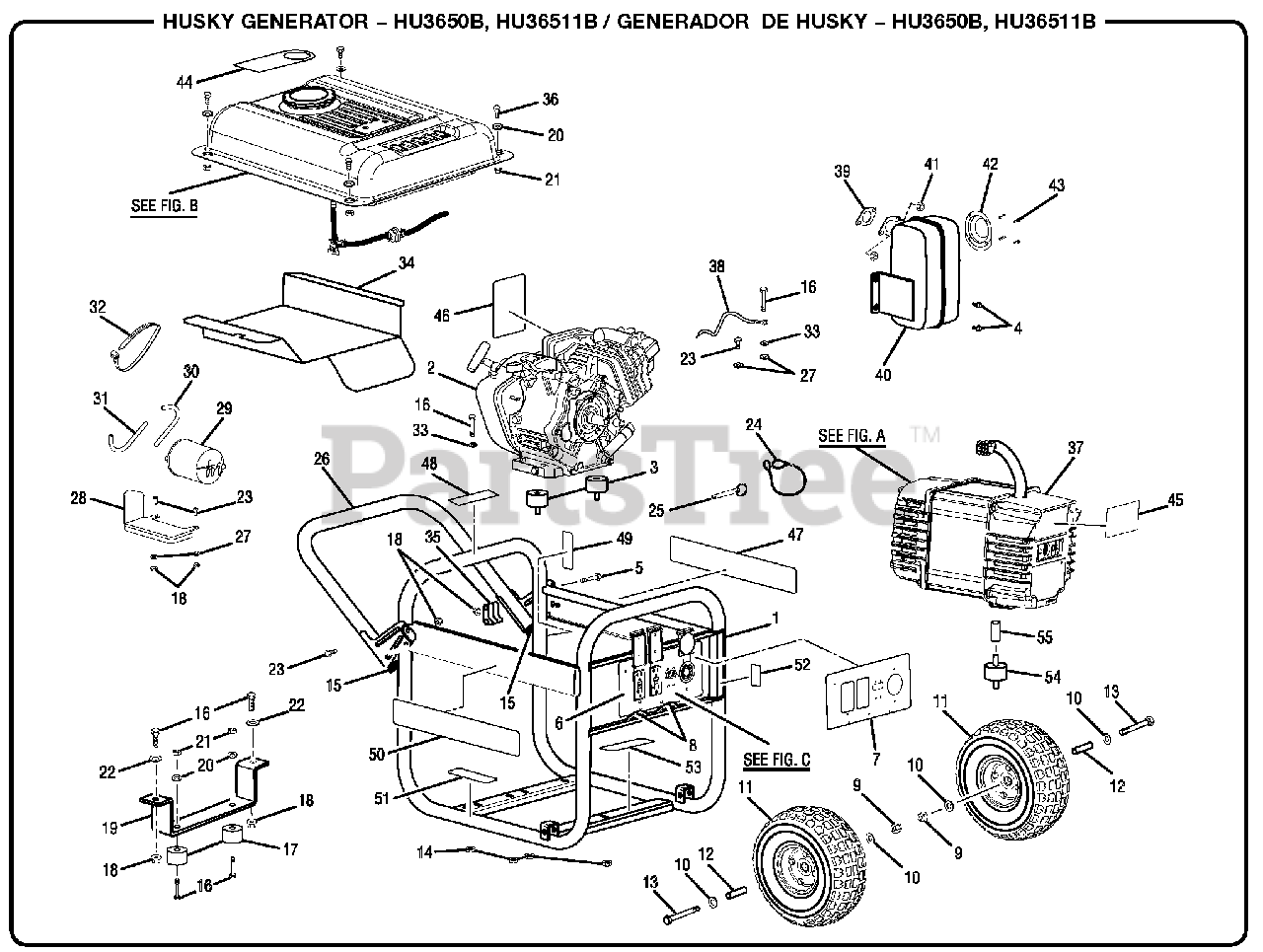

HU 36511 B - Husky 3,650 Watt Portable Generator General Assembly Parts Diagram

3,650 Watt Portable Generator

General Assembly Parts Diagram

  • Title

1

Homelite 310222003

Carrier Assembly

$

$

Not available

2

Engine (Subaru OHC)

$

$

Not available

3

Homelite 570356001

Isolator

$

$

Not available

4

Homelite 660599002

Bolt (5/16-24 x 5/8 in.)

$2.99

$

Usually ships in 3-7 days

0

5

Homelite 660591004

Bolt (5/16-18 x 2-1/4 in., Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 290403024

Control Panel

Note: (HU3650B, See Fig. C)

$114.99

$

Usually ships in 3-7 days

0

6

Homelite 290403025

Control Panel

Note: (HU36511B, See Fig. C)

$

$

Not available

7

Homelite 940780009

Control Panel Label

Note: (HU36511B)

$

$

Currently unavailable

7

Homelite 940780045

Control Panel Label

Note: (HU3650B)

$

$

Currently unavailable

8

Homelite 678655001

Cord Retainer

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 678457003

Lock Nut (3/8-16)

$

$

Not available

10

Homelite 638386003

Washer (3/8 in.)

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 310223002

Wheel

$

$

Not available

12

Homelite 678672002

Spacer (3/8 in. ID)

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 661558002

Bolt (3/8-16 x 4-1/4 in.)

$5.49

$

Usually ships in 3-7 days

0

14

Homelite 678259003

Lock Nut (5/16-18)

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 519712001

End Cap

$

$

Not available

16

Homelite 660591006

Bolt (5/16-18 x 1-1/2 in.)

$2.49

$

In Stock, only 3 left!

0

17

Homelite 570355001

Rubber Foot

$

$

Not available

18

Homelite 678145002

Flange Nut (5/16-18)

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 678505003

Foot Bracket

$11.99

$

Usually ships in 3-7 days

0

20

Homelite 638387002

Washer (1/4 in.)

$

$

Not available

21

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

22

Homelite 638675004

Washer (5/16 in.)
(Superseded to 638675003)

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 661502005

Bolt (5/16-18 x 3/4 in., Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 310715001

Lanyard

$

$

Not available

25

Homelite 310712001

Release Pin

$1.99

$

In Stock, Qty 5

0

26

Homelite 310224003

Handle

$

$

Not available

27

Homelite 638704001

External Star Washer (5/16 in.)

$2.99

$

Usually ships in 3-7 days

0

28

Homelite 638708004

Bracket

Note: (HU36511B, Carb Canister)

$

$

Not available

29

Homelite 310723003

Canister

Note: (HU36511B)

$

$

Not available

30

Homelite 570358030

Purge Hose

Note: (HU36511B)

$

$

Not available

31

Homelite 638710001

Rollover Hose

Note: (HU36511B)

$

$

Not available

32

Homelite 900333012

Cable Tie (18.6 in.)

Note: (HU36511B)

$3.49

$

Usually ships in 3-7 days

0

33

Homelite 638578002

Lock Washer (5/16 in.)

$7.99

$

Usually ships in 3-7 days

0

34

Homelite 638497002

Heat Shield

$

$

Not available

35

519728001

Handle Bracket Spacer

$

$

Not available

36

Homelite 661503005

Bolt (1/4-20 x 1 in.)

$2.49

$

In Stock, only 2 left!

0

37

Homelite 310227008

Generator Head Assembly

Note: (See Fig. A)

$

$

Not available

38

Homelite 290404001

Ground Wire Assembly

$

$

Not available

39

Homelite 901687001

Gasket

$

$

Not available

40

Homelite 309323001

Muffler

$

$

Not available

41

Homelite 678654001

Hex Nut (8 mm)

$

$

Currently unavailable

42

Homelite 638682002

Spark Screen
(Superseded to 638147003)

$

$

Not available

43

Homelite 661300001

Screw (#8 x 3/8 in.)

$

$

Not available

44

Homelite 961030006

Danger Hang Tag

$

$

Not available

45

Homelite 940678170

Data Label

Note: (HU36511B)

$

$

Not available

45

Homelite 940678171

Data Label

Note: (HU3650B)

$

$

Not available

46

Homelite 940617032

Start Label

$

$

Not available

47

Homelite 940707007

Danger Label

$

$

Not available

48

Homelite 940974004

Fire Danger Label

$2.99

$

Usually ships in 3-7 days

0

49

Homelite 940514004

Lock Pin Label

$

$

Not available

50

Homelite 940705043

Logo Label

$

$

Not available

51

Homelite 940708006

Engine Lubricant Label

$

$

Not available

52

Homelite 940680020

Hot Surface Label

$

$

Not available

53

Homelite 940513009

Ground Warning Label

$

$

Not available

54

Homelite 570356002

Isolator

$

$

Not available

55

Homelite 678672001

Spacer (3/8 in. ID)

$2.49

$

Usually ships in 3-7 days

0

Homelite 987000807

Operator's Manual

Note: Not Shown (HU3650B)

$

$

Not available

Homelite 987000715

Operator's Manual

Note: Not Shown (HU36511B)

$

$

Currently unavailable
