HTZ 2401 L - RedMax Hedge Trimmer (SN: 60100000 & Above) CUTTING EQUIPMENT Parts Diagram

Hedge Trimmer

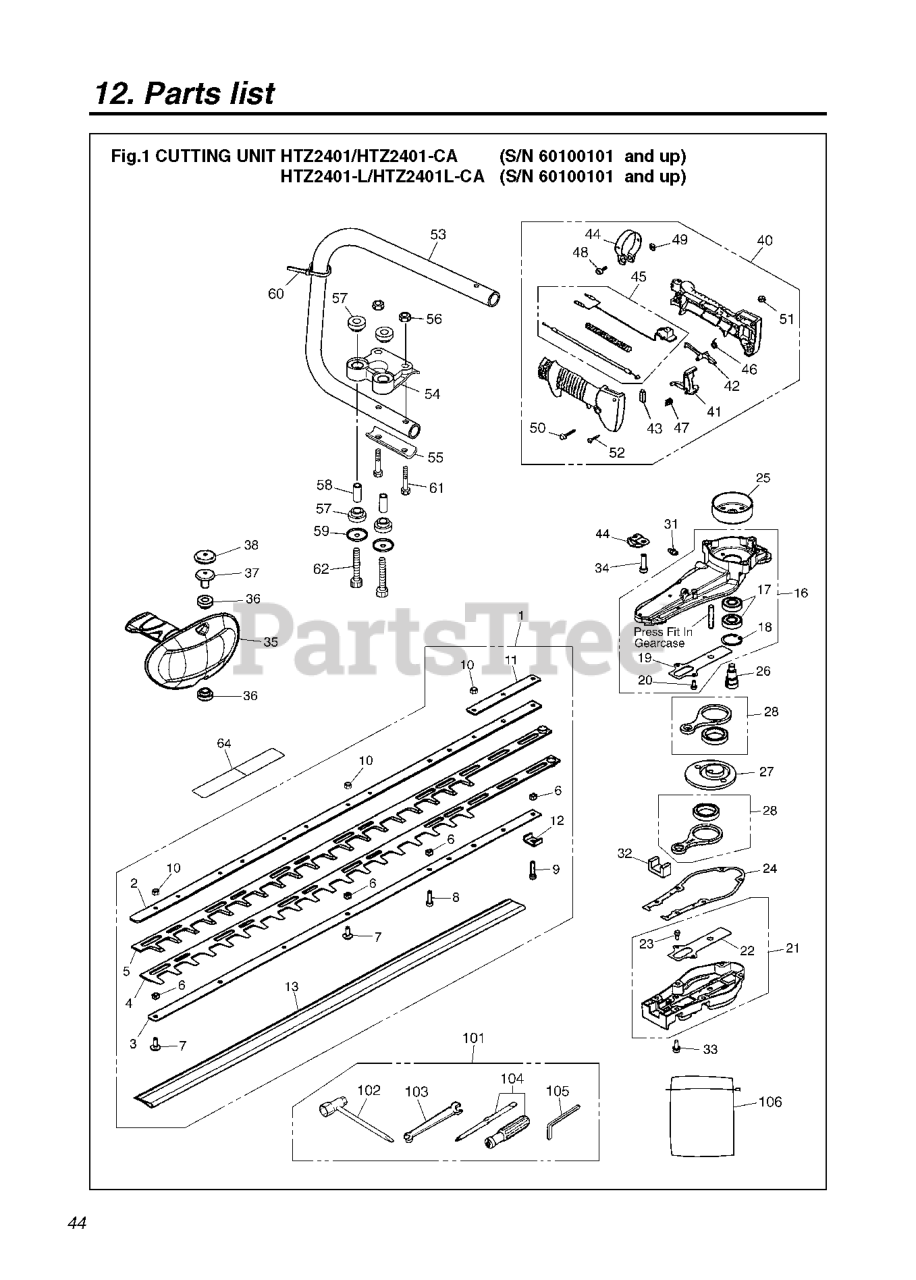

CUTTING EQUIPMENT Parts Diagram

  • Title

1

RedMax 506628001

BLADE ASSY

Note: . 2 3 4-13

$267.99

$

Usually ships in 3-10 days

0

2

RedMax 506628301

PLATE UPPER

Note: upper

$72.99

$

Usually ships in 3-10 days

0

3

RedMax 506628401

PLATE LOWER

Note: lower

$17.99

$

Usually ships in 3-10 days

0

4

RedMax 506628101

BLADE LOWER

Note: lower

$

$

Not available

5

RedMax 506628201

BLADE UPPER

Note: upper

$136.99

$

Usually ships in 3-10 days

0

6

RedMax 506687601

SPACER
(Superseded to 521854801)

$9.99

$

In Stock, Qty 7

0

7

RedMax 506687501

SCREW
(Superseded to 521854201)

$4.99

$

In Stock, only 4 left!

0

8

RedMax 506609301

BOLT
(Superseded to 516070801)

$6.49

$

In Stock, Qty 11

0

9

RedMax 506618001

BOLT

$3.49

$

Usually ships in 3-10 days

0

10

RedMax 506687801

NUT

$4.99

$

In Stock, Qty 5

0

11

RedMax 506688201

PLATE

$6.99

$

In Stock, Qty 9

0

12

RedMax 506627401

BRACKET

$5.99

$

Usually ships in 3-10 days

0

13

RedMax 506628501

COVER
(Superseded to 521591901)

$10.99

$

Usually ships in 3-10 days

0

16

RedMax 506619901

GEARCASE COMPLETE UPPER
(Superseded to 586937101)

Note: . 17 18 19 20

$121.99

$

In Stock, only 1 left!

0

17

RedMax 506610101

BEARING

$11.99

$

Usually ships in 3-10 days

0

18

RedMax 506609901

RING

$4.99

$

In Stock, only 3 left!

0

19

RedMax 506626901

PLATE

$4.99

$

Usually ships in 3-10 days

0

20

RedMax 506688801

BOLT

$3.49

$

Usually ships in 3-10 days

0

21

RedMax 506622801

GEARCASE COMP. BOTTOM
(Superseded to 586937201)

Note: . 22 23

$51.99

$

Usually ships in 3-10 days

0

22

RedMax 506626901

PLATE

$4.99

$

Usually ships in 3-10 days

0

23

RedMax 506688801

BOLT

$3.49

$

Usually ships in 3-10 days

0

24

RedMax 506688301

GASKET

$5.99

$

In Stock, only 2 left!

0

25

RedMax 506619501

DRUM

$26.99

$

Usually ships in 3-10 days

0

26

RedMax 506627201

GEAR DRIVE

$22.99

$

Usually ships in 3-10 days

0

27

RedMax 506688701

GEAR DRIVE

$113.99

$

Usually ships in 3-10 days

0

28

RedMax 506688501

ROD ASSY

$62.99

$

In Stock, only 1 left!

0

31

RedMax 505171501

FITTING

$6.49

$

In Stock, only 3 left!

0

32

RedMax 506688901

FELT

$5.99

$

In Stock, Qty 10

0

33

RedMax 506617901

BOLT

$3.49

$

Usually ships in 3-10 days

0

34

RedMax 506609501

BOLT

$3.49

$

Usually ships in 3-10 days

0

35

RedMax 506627601

SPACER

$6.99

$

Usually ships in 3-10 days

0

36

RedMax 506627601

SPACER

$6.99

$

Usually ships in 3-10 days

0

37

RedMax 506686601

HOLDER

$7.99

$

Usually ships in 3-10 days

0

38

RedMax 506686701

CAP

$3.49

$

Usually ships in 3-10 days

0

40

RedMax 506687001

LEVER ASSY

Note: . 41-52

$74.99

$

Usually ships in 3-10 days

0

41

RedMax 506611601

LEVER

$10.99

$

Usually ships in 3-10 days

0

42

RedMax 506611701

LEVER
(Superseded to 516427601)

$7.49

$

Usually ships in 3-10 days

0

43

RedMax 506617301

TOP

$

$

Not available

44

RedMax 506611801

CLAMP

$

$

Not available

45

RedMax 506686901

CABLE COMP

$66.99

$

Usually ships in 3-10 days

0

46

RedMax 506611901

SPRING
(Superseded to 516428201)

$

$

Not available

47

RedMax 506612001

SPRING

$6.49

$

Usually ships in 3-10 days

0

48

RedMax 506609701

SCREW

$

$

Not available

49

RedMax 506612101

NUT

$

$

Not available

50

RedMax 506609601

SCREW
(Superseded to 516105201)

$3.99

$

Usually ships in 3-10 days

0

51

RedMax 506612201

NUT
(Superseded to 516428601)

$3.99

$

Usually ships in 3-10 days

0

52

RedMax 506612301

SCREW
(Superseded to 516428801)

$

$

Not available

53

RedMax 506687201

PIPE

$26.99

$

Usually ships in 3-10 days

0

54

RedMax 506687301

MOUNT

$13.99

$

In Stock, only 1 left!

0

55

RedMax 506687401

PLATE

$3.49

$

In Stock, only 1 left!

0

56

RedMax 505172301

NUT

$4.99

$

In Stock, only 2 left!

0

57

RedMax 506686501

ABSORBER

$3.49

$

In Stock, only 1 left!

0

58

RedMax 506687101

COLLAR

$3.49

$

In Stock, only 1 left!

0

59

RedMax 506686801

WASHER

$3.49

$

In Stock, only 1 left!

0

60

RedMax 506610501

BAND

$

$

Not available

61

RedMax 506609401

BOLT

$3.49

$

In Stock, only 4 left!

0

62

RedMax 506614901

BOLT

$3.99

$

Usually ships in 3-10 days

0

63

RedMax 506611401

CLAMP

$

$

Not available

64

RedMax 511239901

$

$

Not available

101

RedMax 521532201

TOOL-SET

Note: . 102 103 104 105

$18.99

$

Usually ships in 3-10 days

0

102

RedMax 506686101

SOCKET

$5.99

$

In Stock, only 4 left!

0

103

RedMax 506615001

SPANNER

$4.99

$

In Stock, Qty 10

0

104

RedMax 506689501

DRIVER

$4.99

$

Usually ships in 3-10 days

0

105

RedMax 505311901

WRENCH

$

$

Not available

106

RedMax 506686001

$

$

Not available
