HTP 3 (UT-01602-A) - Homelite Pump Pump & Roll Cage Parts Diagram

Pump

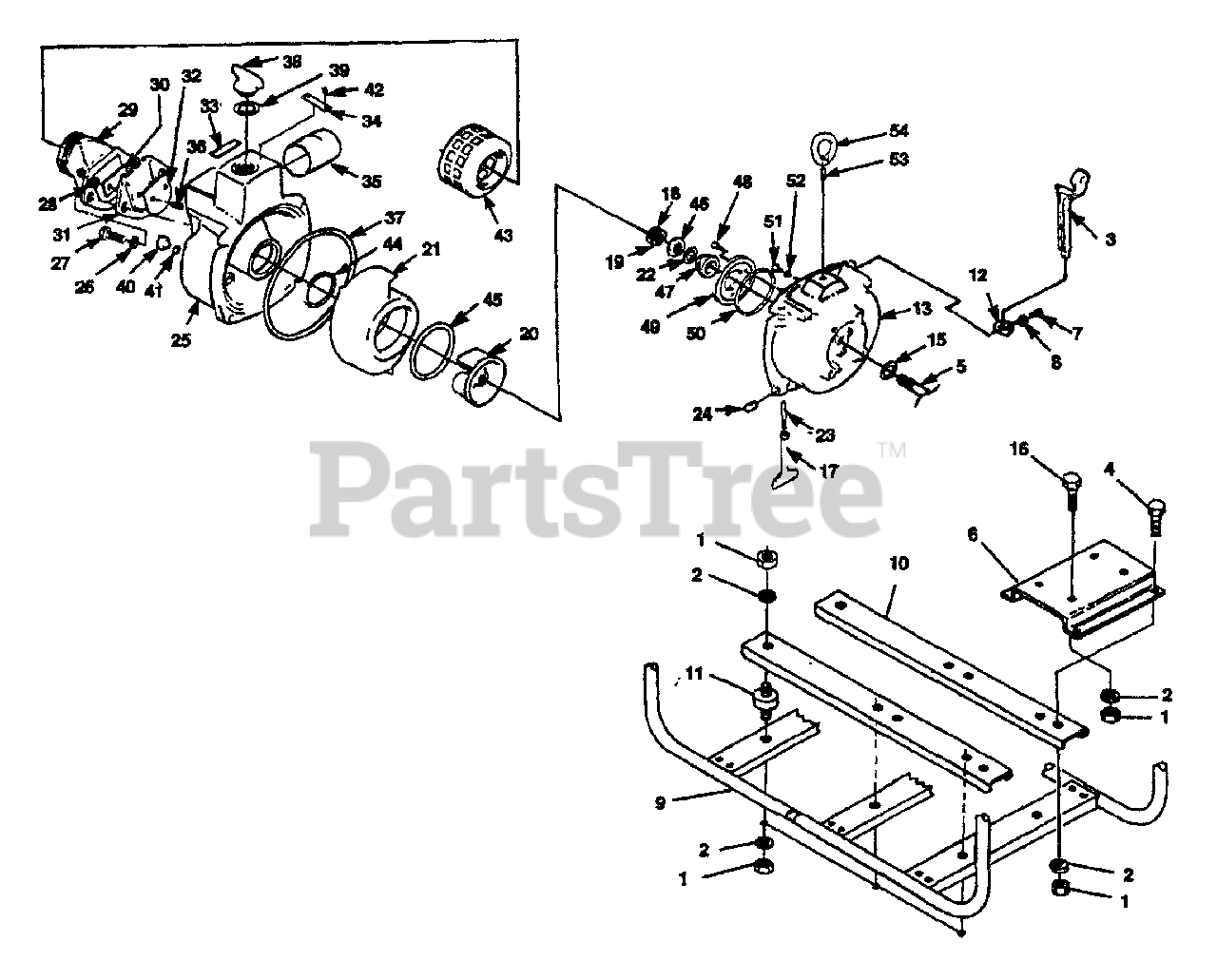

Pump & Roll Cage Parts Diagram

  • Title

1

Homelite 81162

NUT - Hex (5/16-18)

$

$

Not available

2

Homelite 83002

WASHER - Lock (5/16)
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

3

Homelite 20024B

WRENCH - Spanner
(Superseded to UP06389)

$

$

Not available

4

Homelite 80085

SCREW - Hex hd. (5/16-18 x 1)

$2.49

$

Usually ships in 3-7 days

0

5

ENGINE

$

$

Not available

6

Homelite 421211A

BRACKET-Pump engine
(Superseded to UP08577)

$

$

Not available

7

Homelite 80044

SCREW - Hex hd. (1/4-20 x 1/2)

$

$

Not available

8

Homelite 84020

WASHER - Flat (1/4")

$

$

Not available

9

Homelite A07952

ROLL CAGE
(Superseded to UP06383)

$

$

Not available

10

Homelite 07958

CHANNEL, ENGINE
(Superseded to UP07008)

$

$

Not available

11

Homelite 49367

ISOLATOR VIBRATION
(Superseded to UP03483)

$

$

Not available

12

Homelite 624501

BRACKET- Spanner Wrench

$

$

Not available

13

Homelite A47651

BODY - Pump
(Superseded to UP07082)

$

$

Not available

?14

Homelite 82381

SCREW - Hex hd. (5/16-18 x 1 3/4")

$

$

Not available

15

Homelite 62688

SLINGER
(Superseded to UP06433)

$

$

Not available

16

Homelite 80288

SCREW - Hex hd. (5/16-18 x 1 3/4")
(Superseded to UP03388)

$

$

Not available

17

Homelite 548662A

HANDLE - Disconnect

$

$

Currently unavailable

18

Homelite 62677

SHIM - Impeller (.032")

$

$

Not available

19

Homelite 62676

SHIM (.015")

$

$

Not available

20

Homelite 626552

IMPELLER
(Superseded to UP06429)

$

$

Not available

21

Homelite 514582

HOUSING - Impeller
(Superseded to UP06411)

$

$

Not available

22

Homelite 62675

SHIM - Impeller (.010")

$

$

Not available

23

Homelite 54398

STUD - Handle
(Superseded to UP07774)

$

$

Not available

24

Homelite 54397

PIVOT- Handle

$

$

Not available

25

Homelite A43404A

HOUSING - End
(Superseded to UP07091)

$

$

Not available

26

Homelite 83020

WASHER - Lock (1/2")

$

$

Not available

27

Homelite 80272

SCREW - Cap hex hd. (1/2-13 x 1 1/4")

$

$

Not available

28

Homelite 81111

NUT - Hex (10-32)

$

$

Not available

29

Homelite 626576A

FITTING - Pump Section
(Superseded to UP08580)

$

$

Not available

30

Homelite 62669

VALVE - Plate

$

$

Not available

31

Homelite 62687

VALVE - Flapper

$

$

Currently unavailable

32

Homelite 62668

VALVE - Plate

$

$

Not available

33

Homelite 62315

DECAL

$

$

Not available

34

Homelite 54661

PLATE - Warning

$

$

Not available

35

Homelite 542891

NIPPLE

$

$

Not available

36

Homelite 80032

SCREW (10-32 x 1/2")

$

$

Not available

37

Homelite 62367

GASKET - Pump body
(Superseded to UP06428)

$51.99

$

Usually ships in 3-7 days

0

38

Homelite A43971

PLUG - Filler

$

$

Not available

39

Homelite 18108

GASKET- Wing nut

$

$

Not available

40

Homelite A43896

CAP - Drain & Filler
(Superseded to UP07092)

$

$

Currently unavailable

41

Homelite 59910

GASKET-Drain & Filler cap

$

$

Not available

42

Homelite 49266

TACK - Metal

$7.99

$

Usually ships in 3-7 days

0

43

Homelite 74454A

STRAINER - Suction
(Superseded to UP07029)

$

$

Not available

44

Homelite 62363A

GASKET- End plate
(Superseded to UP06427)

$11.99

$

Usually ships in 3-7 days

0

45

Homelite 62665A

GASKET- impeller housing
(Superseded to UP06431)

$

$

Not available

46

Homelite 62716

NUT- Impeller
(Superseded to UP07209)

$

$

Not available

47

Homelite 627131A

SEAL - Shaft

$

$

Not available

48

Homelite 80402A

SCREW - Hex cap (1/4-20 x 5/8")
(Superseded to UP07182)

$

$

Not available

49

Homelite 514562

PLATE - Wear
(Superseded to UP07771)

$

$

Not available

50

Homelite 62772

"O" RING
(Superseded to UP06435)

$

$

Not available

51

Homelite 80771B

SCREW - Cap hex hd. (3/8-16 x 1 1/4")

$

$

Not available

52

Homelite 62666

WASHER - Sealing

$

$

Not available

53

Homelite 532731

STUD, Eye nut

$

$

Not available

54

Homelite 54193

NUT, Eye

$

$

Not available

Homelite A48377A

OVERHAUL KIT
(Superseded to UP07053)

Note: Not Shown

$

$

Not available
