HTP 2 (UT-01601-A) - Homelite Pump Pump & Roll Cage Parts Diagram

Pump

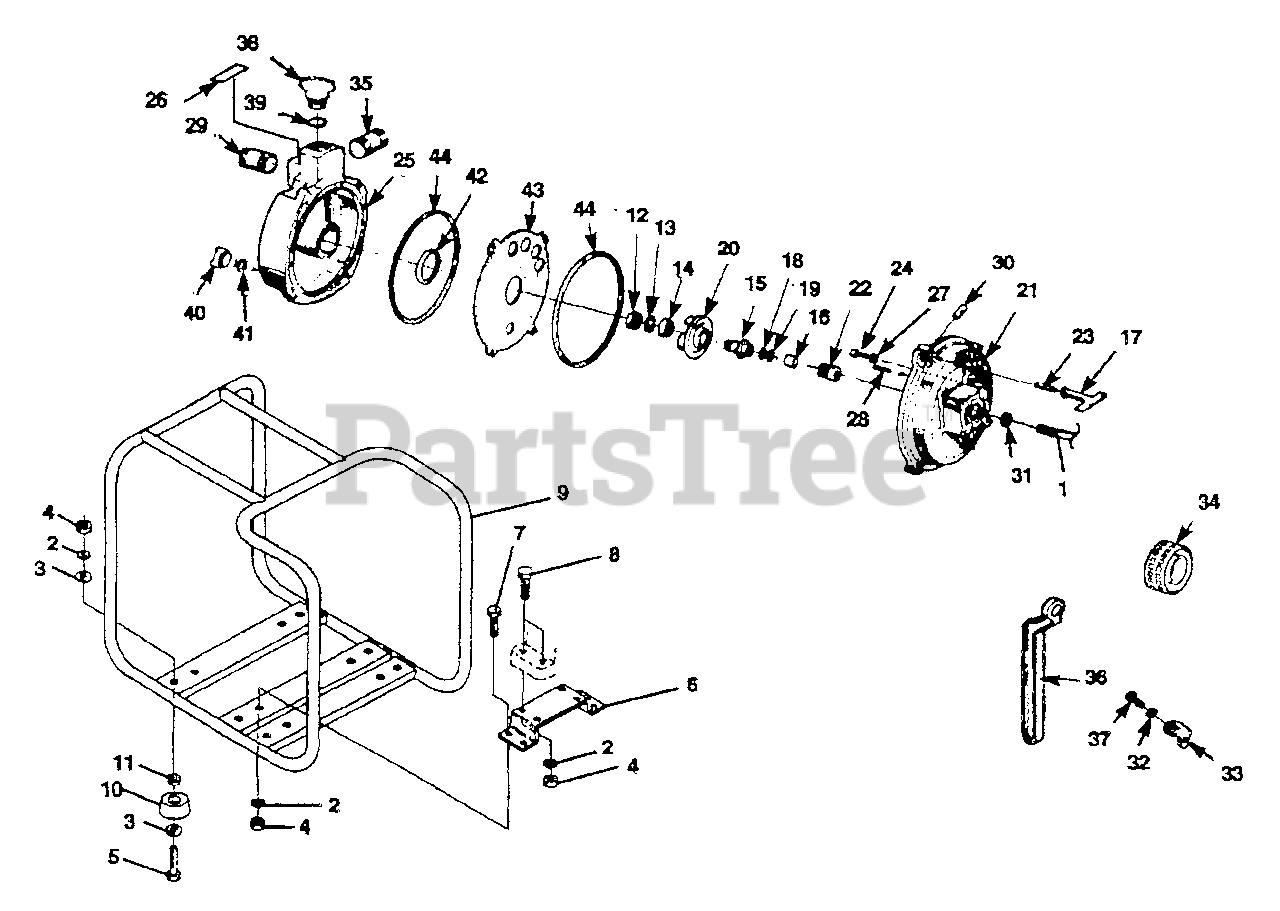

Pump & Roll Cage Parts Diagram

  • Title

1

ENGINE

$

$

Not available

2

Homelite 83002

WASHER - Lock (5/16)
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

3

Homelite 84032

WASHER - Flat (5/16)

$

$

Not available

4

Homelite 81162

NUT - Hex (5/16-18)

$

$

Not available

5

Homelite 80088

SCREW - Hex hd (5/16-18 x 1.25)

$

$

Not available

6

Homelite 08101

ENGINE - Support
(Superseded to UP07009)

$

$

Not available

7

Homelite 80085

SCREW - Hex hd (5/16-18 x 1.00)

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 80087

SCREW - Cap hex hd. (5/16-18 X 1 1/2")

$

$

Not available

9

Homelite A08096

ROLL CAGE

$

$

Not available

10

Homelite 48789

RUBBER FOOT

$

$

Not available

11

Homelite 49733

FOOT SPACER

$

$

Not available

12

Homelite 54741

NUT - Impeller
(Superseded to UP06424)

$

$

Not available

13

Homelite 54740

WASHER

$

$

Not available

14

Homelite 54739A

BUSHING - Impeller
(Superseded to UP06423)

$6.99

$

Usually ships in 3-7 days

0

15

Homelite 547381

HUB - Impeller
(Superseded to UP06422)

$

$

Not available

16

Homelite 50516

SPACER - Crankshaft
(Superseded to UP03777)

$

$

Not available

17

Homelite 545502A

HANDLE - Disconnect

$

$

Not available

18

Homelite 62882A

SHIM - (.010")
(Superseded to UP07026)

$15.99

$

Usually ships in 3-7 days

0

19

Homelite 62883A

SHIM - (.015")
(Superseded to UP06439)

$

$

Not available

20

Homelite 541322

IMPELLER-Pump
(Superseded to UP07788)

$

$

Not available

21

Homelite 541312A

HOUSING - Impeller
(Superseded to UP06844)

$

$

Not available

22

Homelite 627131A

SEAL - Shaft

$

$

Not available

23

Homelite 54398

STUD - Handle
(Superseded to UP07774)

$

$

Not available

24

Homelite 80927

SCREW - Mach. hex hd (5/16-24 x 2 1/4")

$

$

Not available

25

Homelite A47472

HOUSING - End
(Superseded to A47472A)

$

$

Currently unavailable

26

Homelite 62315

DECAL - Fill pump

$

$

Not available

Homelite 50912

SLEEVE - End housing

Note: (Not Shown)

$

$

Not available

27

Homelite 62874

WASHER - Sealing
(Superseded to UP06437)

$4.99

$

Usually ships in 3-7 days

0

28

Homelite 54660

PIN - Coiled spring

$

$

Not available

29

Homelite 756631

NIPPLE - (2" x 2")
(Superseded to UP03807)

$

$

Not available

30

Homelite 54397

PIVOT- Handle

$

$

Not available

31

Homelite 76885A

SLINGER
(Superseded to UP06453)

$

$

Not available

32

Homelite 84020

WASHER - Flat (1/4")

$

$

Not available

33

Homelite 624501

HOLDER - Spanner wrench

$

$

Not available

34

Homelite 54702A

STRAINER - Suction hose
(Superseded to UP08146)

$87.99

$

Usually ships in 3-7 days

0

35

Homelite 541511

NIPPLE - (2" x 3 1/2")

$

$

Not available

36

Homelite 19189B

WRENCH
(Superseded to UP03586)

$

$

Not available

37

Homelite 00044

SCREW - Cap hex hd.

$

$

Currently unavailable

38

Homelite A43971

PLUG - Wing

$

$

Not available

39

Homelite 18108

GASKET

$

$

Not available

40

Homelite A43896

PLUG - Drain
(Superseded to UP07092)

$

$

Currently unavailable

41

Homelite 59910

GASKET

$

$

Not available

42

Homelite 54069

GASKET - Small
(Superseded to UP06417)

$13.99

$

Usually ships in 3-7 days

0

43

Homelite 541361A

PLATE - Wear
(Superseded to UP06419)

$

$

Not available

44

Homelite 54070A

GASKET - Large
(Superseded to UP06418)

$

$

Not available

Homelite A48376A

OVERHAUL KIT
(Superseded to UP07076)

Note: (Not Shown)

$

$

Currently unavailable
