HTC 12 (UT-22089-C) - Homelite Tiller Transmission Parts Diagram

Tiller

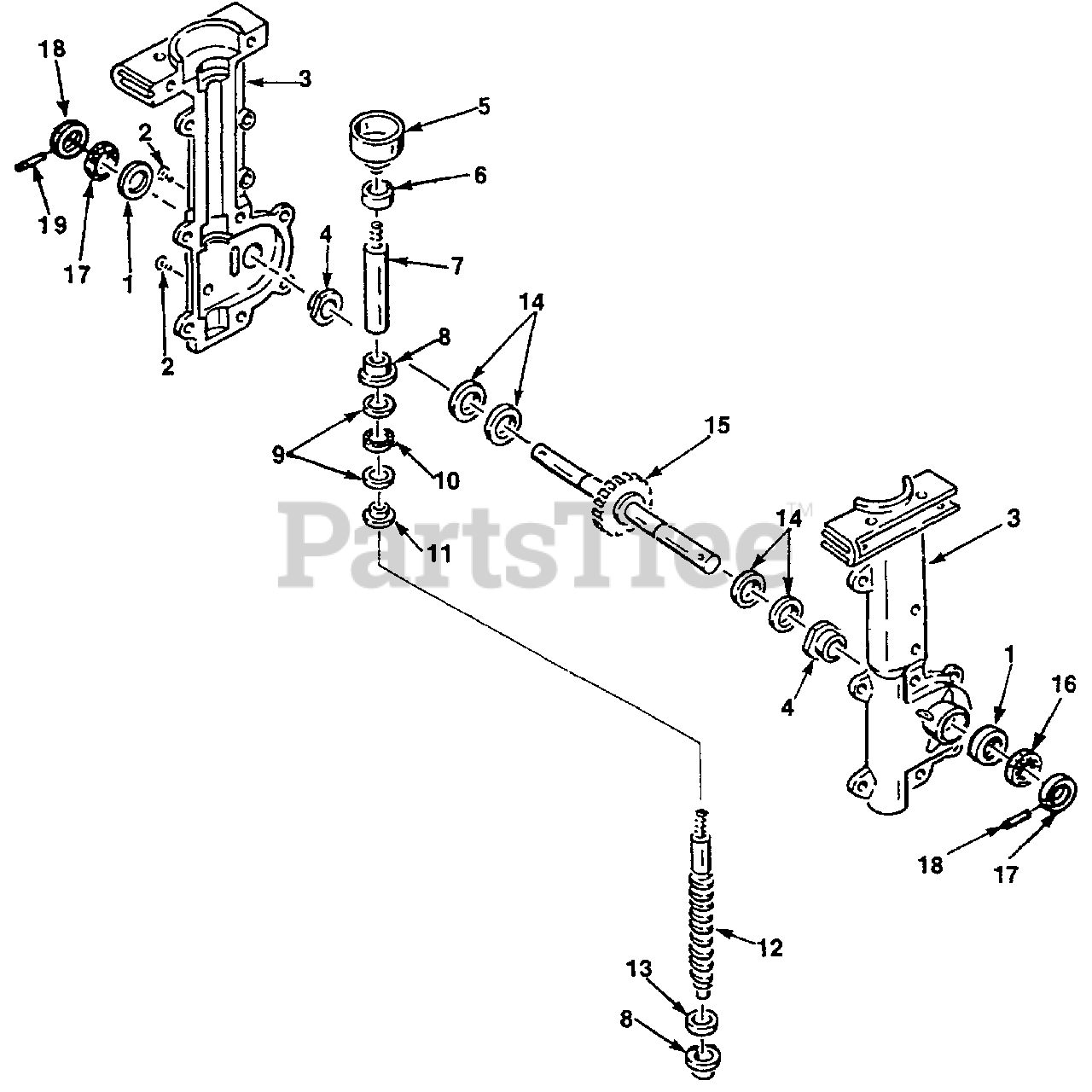

Transmission Parts Diagram

  • Title
1

Homelite 0107585

SEAL- Lip (3/4")
(Superseded to UP05900)

$

$

Not available

2

Homelite 0107580

SCREW- Slotted hex hd. (1/4-20 x 1/2")
(Superseded to UP05920)

$

$

Not available

3

Homelite 0103102

TRANSMISSION ASSEMBLY

$

$

Currently unavailable

4

Homelite 0107579

BUSHING- Bronze (3/4" I.D.)
(Superseded to UP05902)

$

$

Not available

5

Homelite 0107529

DRUM & HUB (Clutch)
(Superseded to UP05922)

$

$

Not available

6

Homelite 0107532

BEARING- Roller
(Superseded to UP05923)

$

$

Not available

7

Homelite 0107525

SHAFT- Connecting

$

$

Not available

8

Homelite 0107531

BUSHING- Bronze (7/16")
(Superseded to UP05903)

$

$

Not available

9

Homelite 0107534

WASHER- Thrust hardened
(Superseded to UP05924)

$

$

Not available

10

Homelite 0107535

BEARING- Needle (thrust)
(Superseded to UP05925)

$

$

Not available

11

Homelite 0107550

WASHER- Adaptor

$15.99

$

Usually ships in 3-7 days

0

12

Homelite 0107526

SHAFT- Worm (3/4 x 7/16-16) (16P)
(Superseded to UP05905)

$

$

Not available

13

Homelite 0107536

WASHER- Thrust (3/4 x 7/16")
(Superseded to UP05926)

$

$

Not available

14

Homelite 0107578

WASHER- Thrust (16 x 3/4 x 1 1/2")

$

$

Not available

15

Homelite 0107524

SHAFT- Tine, w/Worm Wheel
(Superseded to UP05907)

$

$

Not available

16

Homelite 0107583

WASHER- Felt seal (1/8 x 3/4 x 1 1/4")
(Superseded to UP05908)

$6.99

$

Usually ships in 3-7 days

0

17

Homelite 0107551

DIRT CAP
(Superseded to UP05909)

$

$

Not available

18

Homelite 0107552

SCREW- Set (#10-32 x 1/4") Metal Dirt Cap

$

$

Not available

19

UNKNOWN

$

$

Not available
