HT3813 SA (HT3813) - Honda Lawn Tractor, Made in Japan (SN: HT3813-5000001 - HT3813-5099999) TENSIONER ARM + TENSIONER PULLEY Parts Diagram

Lawn Tractor, Made in Japan

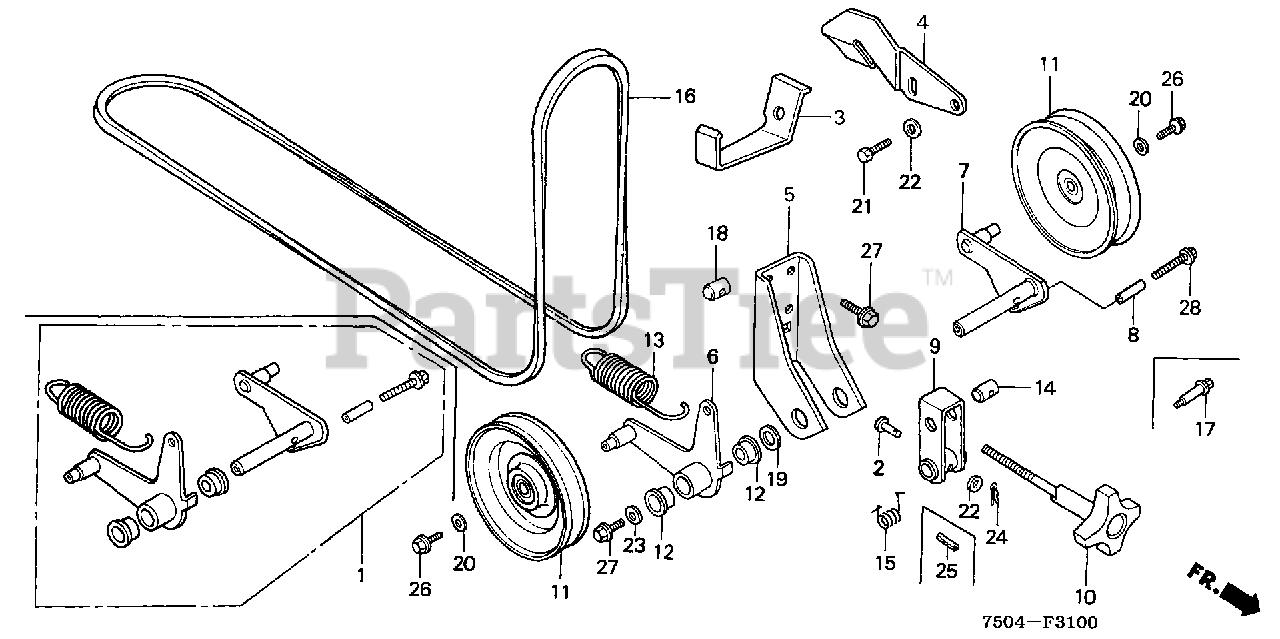

TENSIONER ARM + TENSIONER PULLEY Parts Diagram

  • Title
3

Honda 75175-750-000

STOPPER, BELT DRIVEN

Note: Use up to Frame SN 5010406.

$

$

Currently unavailable

3

Honda 75178-750-800

STOPPER, BELT DRIVEN

Note: Use from Frame SN 5010407.

$

$

Not available

5

Honda 75510-750-000

BRACKET, TENSIONER

$

$

Not available

6

Honda 75520-750-010

SEE PART DETAILS - SUP; ARM, TENSIONER (1)
(Superseded to 75520-750-A00)

$

$

Not available

6

Honda 75520-750-A00

SEE PART DETAILS - PRI; ARM, TENSIONER (1)

$

$

Not available

7

Honda 75530-750-010

SEE PART DETAILS - SUP; ARM, TENSIONER (2)
(Superseded to 75530-750-A00)

$

$

Not available

7

Honda 75530-750-A00

SEE PART DETAILS - PRI; ARM, TENSIONER (2)

$

$

Not available

9

Honda 75540-750-000

LEVER, TENSIONER

$33.99

$

Usually ships in 3-6 days

0

10

Honda 75550-750-010

SEE PART DETAILS - PRI; KNOB, TENSIONER

$

$

Not available

11

Honda 75560-750-000

PULLEY, TENSIONER

$61.99

$

Usually ships in 3-6 days

0

12

Honda 75572-750-000

BUSH (17X23X19)

$11.99

$

Usually ships in 3-6 days

0

13

Honda 75573-750-030

SEE PART DETAILS - PRI; SPRING, TENSIONER

$10.99

$

In Stock, only 3 left!

0

14

Honda 75574-750-010

SEE PART DETAILS - PRI; PIN, TENSIONER

$

$

Not available

16

Honda 76182-750-003

V-BELT, DECK

$106.99

$

Usually ships in 3-6 days

0

18

Honda 90301-750-000

NUT, TENSIONER

$

$

Not available

19

Honda 90401-750-000

COLLAR, TENSIONER BRACKET

$5.99

$

Usually ships in 3-6 days

0

20

Honda 90453-292-010

WASHER, SHIFT DRUM STOPPER

$6.99

$

Usually ships in 3-6 days

0

23

Honda 90534-750-000

WASHER (8.5MM)

$5.49

$

Usually ships in 3-6 days

0

25

Honda 94305-60252

PIN, SPRING (6X25)

$2.49

$

Usually ships in 3-6 days

0

26

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0

27

Honda 95701-08014-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14)

$2.49

$

Usually ships in 3-6 days

0
