HT3813 SA (HT3813) - Honda Lawn Tractor, Made in Japan (SN: HT3813-5000001 - HT3813-5099999) RADIATOR (HT3813/K1/4213) Parts Diagram

Lawn Tractor, Made in Japan

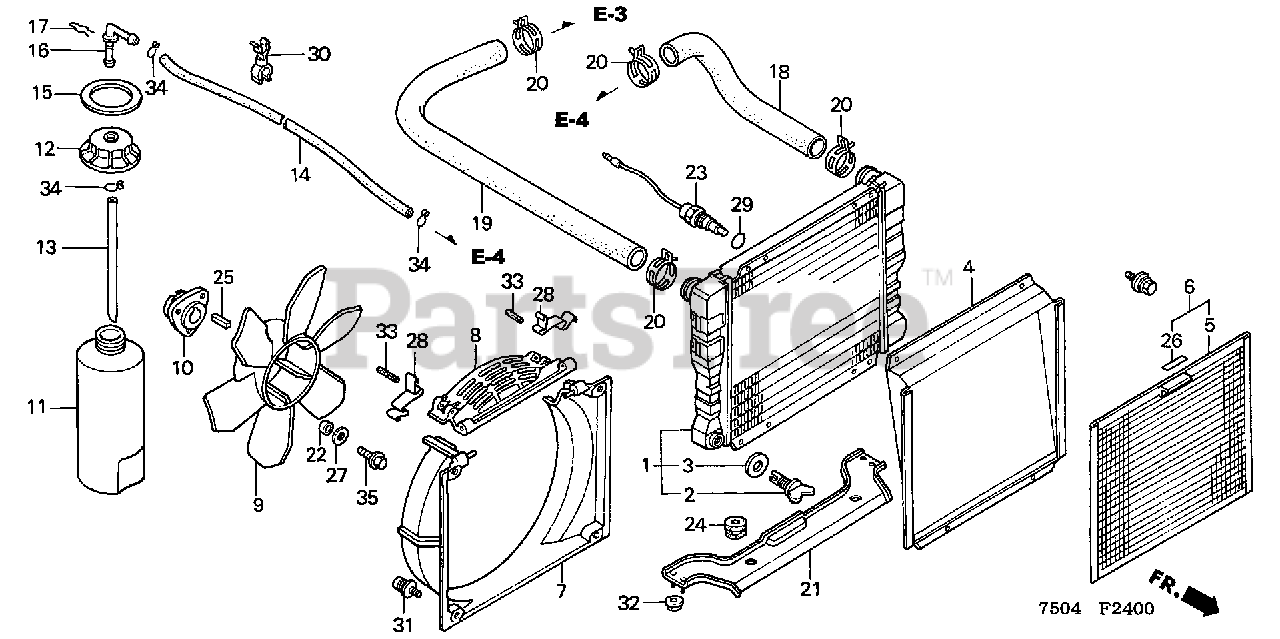

RADIATOR (HT3813/K1/4213) Parts Diagram

  • Title

1

Honda 19010-750-801

RADIATOR

$

$

Currently unavailable

2

Honda 19011-PA0-004

VALVE, DRAIN (TOYO)

$17.99

$

In Stock, only 1 left!

0

3

Honda 19012-PA0-004

GASKET, DRAIN (TOYO)

$5.99

$

In Stock, only 1 left!

0

4

Honda 19012-750-801

GUIDE, FR. SCREEN

$104.99

$

Usually ships in 3-6 days

0

5

Honda 19013-750-801

SCREEN, FR.

$

$

Currently unavailable

6

Honda 19013-750-811

SCREEN, FR. (FOR COLD AREA)

$

$

Currently unavailable

7

Honda 19015-750-800

SHROUD, RADIATOR (LOWER) (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 19016-750-800

SHROUD, RADIATOR (UPPER)

$

$

Currently unavailable

9

Honda 19040-750-800

FAN, COOLING

$65.99

$

Usually ships in 3-6 days

0

10

Honda 19042-750-800

BOSS, COOLING FAN

$

$

Not available

11

Honda 19101-PA0-000

TANK, RESERVE

$59.99

$

Usually ships in 3-6 days

0

12

Honda 19102-PA0-020

CAP, RESERVE TANK

$22.99

$

Usually ships in 3-6 days

0

13

Honda 19103-PA0-000

HOSE, RESERVE TANK

$21.99

$

Usually ships in 3-6 days

0

14

Honda 19104-679-020

SEE PART DETAILS - PRI; TUBE, RESERVE TANK

$

$

Not available

14

Honda 19104-750-800

SEE PART DETAILS - SUP; TUBE, RESERVE TANK

$

$

Currently unavailable

15

Honda 19105-PA0-010

MARK, RESERVE TANK

$13.99

$

Usually ships in 3-6 days

0

16

Honda 19106-PA0-020

JOINT, RESERVE TANK

$4.99

$

Usually ships in 3-6 days

0

17

Honda 19107-PA0-000

CLIP, RESERVE TANK JOINT

$26.99

$

Usually ships in 3-6 days

0

18

Honda 19501-750-800

HOSE A, WATER

$

$

Not available

19

Honda 19503-750-800

HOSE B, WATER (NOT AVAILABLE)

$

$

Not available

20

Honda 19511-679-003

CLIP, WATER HOSE

$12.99

$

Usually ships in 3-6 days

0

21

Honda 19511-750-801

BRACKET, RADIATOR (LOWER)

$

$

Not available

22

Honda 19512-883-000

SEE PART DETAILS - PRI; COLLAR, FAN

$2.49

$

In Stock, Qty 5

0

23

Honda 37765-750-801

SWITCH ASSY., THERMO (NOT AVAILABLE)

$

$

Not available

24

Honda 50329-425-000

RUBBER B, BATTERY BOX

$3.99

$

In Stock, only 2 left!

0

25

Honda 75184-750-000

KEY (7X7X23) (NOT AVAILABLE)

$

$

Currently unavailable

26

Honda 87128-750-800

MARK, FR. SCREEN

$2.99

$

Usually ships in 3-6 days

0

27

Honda 90401-ZA0-000

WASHER, PLAIN (6.5X15)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 90658-750-800

CLIP, RADIATOR SHROUD

$4.49

$

Usually ships in 3-6 days

0

29

Honda 91307-PH7-660

SEE PART DETAILS - PRI; O-RING (13.5X1.4)

$3.99

$

In Stock, only 2 left!

0

30

Honda 91404-750-800

CLIP, DOUBLE

$

$

Not available

31

Honda 93893-06012-08

SCREW-WASHER (6X12)

$1.99

$

Usually ships in 3-6 days

0

32

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 5

0

33

Honda 94305-40301

PIN, SPRING (4X30)

$

$

Not available

34

Honda 95002-70000

CLIP, TUBE (C11)

$2.49

$

In Stock, Qty 9

0

35

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0
