HT3813 SA (HT3813) - Honda Lawn Tractor, Made in Japan (SN: HT3813-5000001 - HT3813-5099999) PISTON + CRANKSHAFT (HT3813/K1/4213) Parts Diagram

Lawn Tractor, Made in Japan

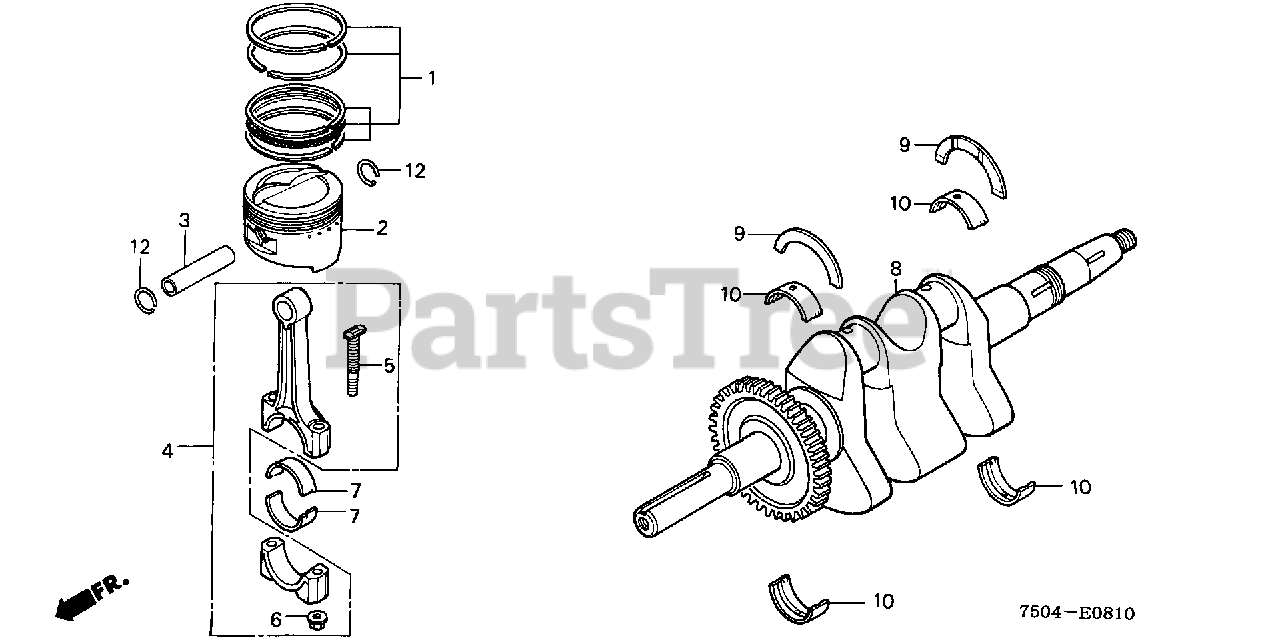

PISTON + CRANKSHAFT (HT3813/K1/4213) Parts Diagram

  • Title
1

Honda 130A1-ZA0-004

SEE PART DETAILS - PRI; RING SET, PISTON (STD)

$46.99

$

Usually ships in 3-6 days

0

1

Honda 130A2-ZA0-004

RING SET, PISTON (OS 0.25)

$

$

Not available

1

Honda 130A3-ZA0-005

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50)

$

$

Not available

2

Honda 13101-ZA0-010

SEE PART DETAILS - PRI; PISTON (STD)

$70.99

$

Usually ships in 3-6 days

0

2

Honda 13102-ZA0-000

PISTON (OS 0.25)

$

$

Not available

2

Honda 13103-ZA0-000

PISTON (OS 0.50)

$

$

Not available

3

Honda 13111-881-000

PIN, PISTON

$12.99

$

Usually ships in 3-6 days

0

4

Honda 13210-ZA0-000

ROD ASSY., CONNECTING

$142.99

$

Usually ships in 3-6 days

0

5

Honda 13213-KV0-000

SEE PART DETAILS - PRI; BOLT, CONNECTING ROD

$7.99

$

Usually ships in 3-6 days

0

5

Honda 13213-410-003

SEE PART DETAILS - SUP; BOLT, CONNECTING ROD

$

$

Currently unavailable

6

Honda 13214-410-003

NUT, CONNECTING ROD

$4.99

$

Usually ships in 3-6 days

0

7

Honda 13215-333-003

BEARING A, CONNECTING ROD (BLACK)

$17.99

$

In Stock, only 4 left!

0

7

Honda 13216-333-003

BEARING B, CONNECTING ROD (BROWN)

$11.99

$

Usually ships in 3-6 days

0

7

Honda 13217-333-003

BEARING C, CONNECTING ROD (GREEN)

$11.99

$

In Stock, only 2 left!

0

7

Honda 13218-333-003

BEARING D, CONNECTING ROD (YELLOW)

$14.99

$

Usually ships in 3-6 days

0

7

Honda 13219-333-003

BEARING E, CONNECTING ROD (RED)

$14.99

$

Usually ships in 3-6 days

0

8

Honda 13310-ZA0-700

SEE PART DETAILS - SUP; CRANKSHAFT
(Superseded to 13310-ZA0-701)

Note: Use up to Engine SN 1140766.

$

$

Not available

8

Honda 13310-ZA0-701

SEE PART DETAILS - PRI; CRANKSHAFT

$

$

Not available

9

Honda 13316-ZA0-003

BEARING, CRANKSHAFT THRUST

$10.99

$

In Stock, only 1 left!

0

10

Honda 13321-ZA0-003

BEARING, CRANKSHAFT (1) (BLACK)

$16.99

$

In Stock, only 1 left!

0

10

Honda 13322-ZA0-003

BEARING, CRANKSHAFT (2) (BROWN)

$16.99

$

Usually ships in 3-6 days

0

10

Honda 13323-ZA0-003

BEARING, CRANKSHAFT (3) (GREEN)

$16.99

$

In Stock, only 2 left!

0

10

Honda 13324-ZA0-003

BEARING, CRANKSHAFT (4) (YELLOW)

$16.99

$

In Stock, Qty 6

0

10

Honda 13325-ZA0-003

BEARING, CRANKSHAFT (5) (RED)

$16.99

$

Usually ships in 3-6 days

0

12

Honda 94601-14000

CLIP, PISTON PIN (14MM)

$0.99

$

In Stock, only 2 left!

0
