HT3813 SA (HT3813) - Honda Lawn Tractor, Made in Japan (SN: HT3813-5000001 - HT3813-5099999) P.T.O. CLUTCH Parts Diagram

Lawn Tractor, Made in Japan

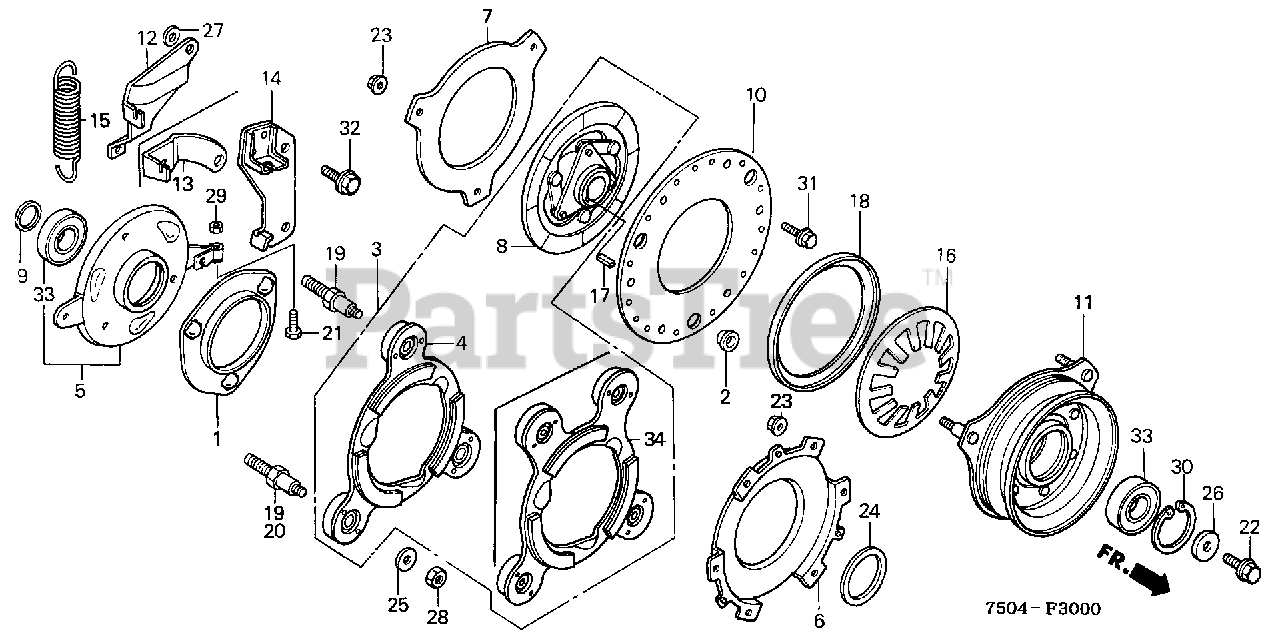

P.T.O. CLUTCH Parts Diagram

  • Title
1

Honda 22535-750-800

RETAINER, FR. BALL

$

$

Not available

2

Honda 22572-750-000

BUSH, RR. CLUTCH

$

$

Not available

3

Honda 751A0-750-800

DISK SET, BRAKE & FRICTION

$268.99

$

Usually ships in 3-6 days

0

4

Honda 75100-750-A00

SEE PART DETAILS - PRI; BRAKE ASSY.

$

$

Not available

5

Honda 75110-750-800

PLATE, BALL CONTROL (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 75131-750-003

PLATE, BRAKE

$

$

Not available

7

Honda 75132-750-003

PLATE, CLUTCH SIDE

$

$

Not available

9

Honda 75146-750-000

COLLAR, DISTANCE (25MM)

$8.49

$

In Stock, only 1 left!

0

10

Honda 75150-750-003

PLATE, CLUTCH

$

$

Not available

11

Honda 75160-750-003

PULLEY, DRIVEN (NOT AVAILABLE)

$

$

Not available

13

Honda 75170-750-800

HOOK, SPRING

$28.99

$

Usually ships in 3-6 days

0

15

Honda 75182-750-000

SPRING, CLUTCH RETURN

$

$

Not available

16

Honda 75183-750-003

SPRING, CLUTCH

$

$

Not available

17

Honda 75184-750-000

KEY (7X7X23) (NOT AVAILABLE)

$

$

Currently unavailable

18

Honda 75185-750-003

SEAT, CLUTCH SPRING

$

$

Not available

19

Honda 75186-750-800

BOLT, SPECIAL (NOT AVAILABLE)

Note: Use up to Frame SN 5010406.

$

$

Not available

20

Honda 75191-750-800

BOLT, SPECIAL (NOT AVAILABLE)

Note: Use from Frame SN 5010407.

$

$

Currently unavailable

22

Honda 90013-360-000

BOLT, SPECIAL (8X25)

$9.99

$

In Stock, only 1 left!

0

23

Honda 90301-473-003

NUT, U (6MM)

$5.99

$

Usually ships in 3-6 days

0

25

Honda 90443-MF5-000

WASHER, THRUST (8.5)

$

$

Not available

26

Honda 90473-842-000

WASHER (8MM)

$1.99

$

In Stock, only 4 left!

0

28

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 10

0

30

Honda 94520-47000

CIRCLIP (INNER) (47MM)

$2.99

$

In Stock, only 2 left!

0

31

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0

33

Honda 96150-60050-10

BEARING, RADIAL BALL (6005UU)

$25.99

$

Usually ships in 3-6 days

0
