HT3813 SA (HT3813) - Honda Lawn Tractor, Made in Japan (SN: HT3813-5000001 - HT3813-5099999) FLOOR + REAR FENDER Parts Diagram

Lawn Tractor, Made in Japan

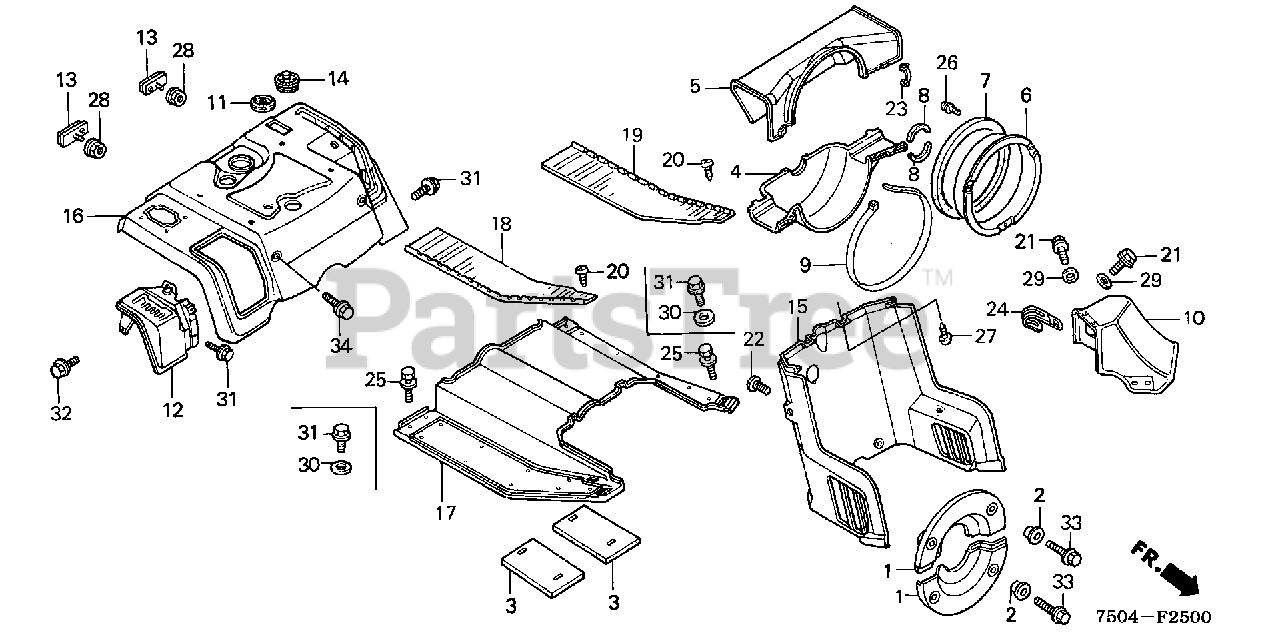

FLOOR + REAR FENDER Parts Diagram

  • Title

1

Honda 11825-750-800

COVER, DUST

$18.99

$

Usually ships in 3-6 days

0

2

Honda 11826-750-800

COLLAR, DUST COVER

$4.99

$

Usually ships in 3-6 days

0

9

Honda 19617-750-000

BAND (650MM)

$

$

Not available

11

Honda 19905-750-000

GROMMET, WIRE

$5.99

$

Usually ships in 3-6 days

0

12

Honda 24139-750-000ZA

GUIDE, CHANGE LEVER *R136* (DIANA RED) (NOT AVAILABLE)

$

$

Not available

13

Honda 33741-MC7-612

REFLECTOR, REFLEX

$18.99

$

Usually ships in 3-6 days

0

15

Honda 61401-750-000ZA

SHELL, COMPARTMENT *NH105* (MAT BLACK)

$

$

Currently unavailable

16

Honda 63401-750-000ZA

FENDER, RR. *R136* (DIANA RED) (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 65111-750-013ZA

FLOOR *R136* (DIANA RED)

$1350.99

$

Usually ships in 3-6 days

0

18

Honda 83301-750-800

FLOOR MAT, R.

$

$

Not available

19

Honda 83302-750-800

FLOOR MAT, L.

$

$

Not available

20

Honda 90103-GC2-780

SCREW, TAPPING (4X14)

$4.49

$

Usually ships in 3-6 days

0

22

Honda 90123-750-000

SCREW, METER VISOR SETTING

$4.99

$

In Stock, Qty 6

0

27

Honda 93904-36280

SCREW, TAPPING (6X16)

$1.99

$

Usually ships in 3-6 days

0

28

Honda 94050-05080

NUT, FLANGE (5MM)

$0.99

$

In Stock, Qty 6

0

30

Honda 94103-06800

WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 10

0

31

Honda 95701-06012-07

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 15

0

32

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

32

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

33

Honda 95701-06020-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20)

$0.99

$

Usually ships in 3-6 days

0

34

Honda 95701-08016-07

BOLT, FLANGE (8X16)

$2.49

$

Usually ships in 3-6 days

0
