HT3813 SA (HT3813) - Honda Lawn Tractor, Made in Japan (SN: HT3813-5000001 - HT3813-5099999) ENGINE MOUNTING STAY (HT3813/K1/4213) Parts Diagram

Lawn Tractor, Made in Japan

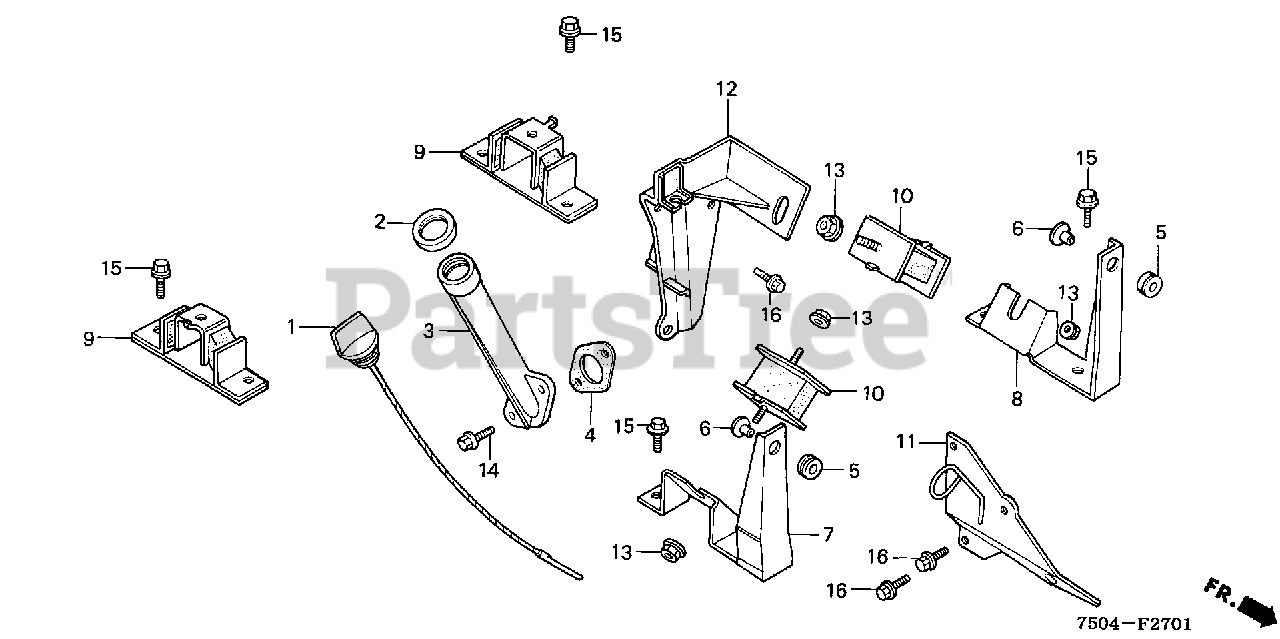

ENGINE MOUNTING STAY (HT3813/K1/4213) Parts Diagram

  • Title

1

Honda 15620-750-800

CAP, OIL FILLER (NOT AVAILABLE)

$

$

Not available

2

Honda 15625-ZE8-000

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP

$5.49

$

In Stock, only 1 left!

0

2

Honda 15625-750-800

SEE PART DETAILS - SUP; GASKET, OIL FILLER CAP

$

$

Currently unavailable

3

Honda 15632-750-800

PIPE, OIL FILLER

$92.99

$

Usually ships in 3-6 days

0

4

Honda 15635-ZA0-800

GASKET, OIL PIPE

$4.49

$

Usually ships in 3-6 days

0

5

Honda 19051-KA4-700

RUBBER, RADIATOR SETTING

$4.49

$

Usually ships in 3-6 days

0

6

Honda 19052-KA4-700

COLLAR, RADIATOR SETTING (NOT AVAILABLE)

$

$

Not available

7

Honda 19516-750-800

STAY, R. RADIATOR

$

$

Not available

8

Honda 19517-750-800

STAY, L. RADIATOR

$

$

Currently unavailable

9

Honda 50220-750-800

RUBBER, ENGINE MOUNTING (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 50223-750-010

SEE PART DETAILS - PRI; RUBBER, ENGINE SETTING

$

$

Not available

11

Honda 50225-750-800

BRACKET A, FR. ENGINE MOUNTING

$

$

Not available

12

Honda 50226-750-800

BRACKET B, FR. ENGINE MOUNTING

$

$

Currently unavailable

13

Honda 94050-10080

NUT, FLANGE (10MM)

$3.99

$

In Stock, Qty 20+

0

14

Honda 95701-06020-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20)

$0.99

$

Usually ships in 3-6 days

0

15

Honda 95701-08014-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14)

$2.49

$

Usually ships in 3-6 days

0

16

Honda 95701-08020-08

BOLT, FLANGE (8X20)

$2.49

$

Usually ships in 3-6 days

0
