HT3813 SA (HT3813) - Honda Lawn Tractor, Made in Japan (SN: HT3813-5000001 - HT3813-5099999) CHANGE LEVER + CHANGE ARM Parts Diagram

Lawn Tractor, Made in Japan

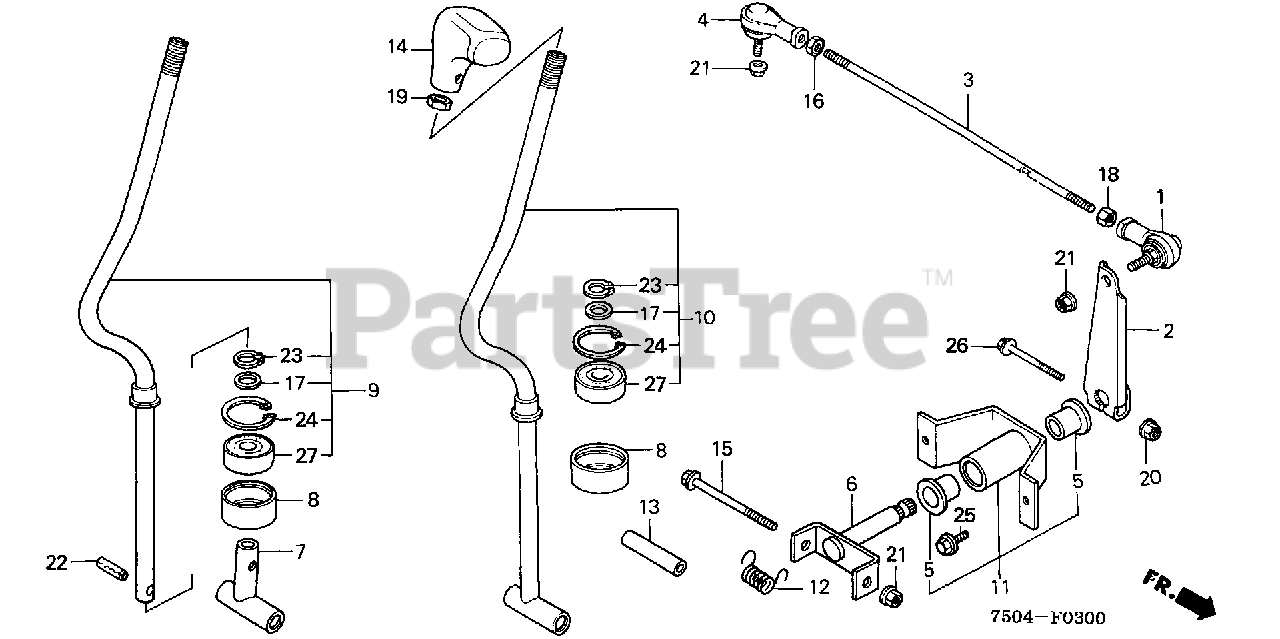

CHANGE LEVER + CHANGE ARM Parts Diagram

  • Title

1

Honda 24125-750-003

SEE PART DETAILS - SUP; JOINT, R. BALL
(Superseded to 24125-V12-003)

$38.99

$

Usually ships in 3-6 days

0

2

Honda 24126-750-000

ARM, CHANGE (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 24128-750-000

ROD, GEARSHIFT

$

$

Not available

4

Honda 24129-750-003

JOINT, L. BALL

$

$

Not available

5

Honda 24132-750-000

BUSH (15X19X22)

$11.99

$

Usually ships in 3-6 days

0

6

Honda 24133-750-000

SHAFT, CHANGE LEVER (NOT AVAILABLE)

$

$

Not available

8

Honda 24136-750-000

ROLLER, CLUTCH

$

$

Currently unavailable

10

Honda 24137-750-010

LEVER, CHANGE (NOT AVAILABLE)

$

$

Not available

11

Honda 24140-750-000

HOLDER, CHANGE LEVER

$

$

Not available

12

Honda 24146-750-000

SPRING, CHANGE LEVER

$

$

Not available

13

Honda 24153-750-000

COLLAR, CHANGE LEVER JOINT (NOT AVAILABLE)

$5.99

$

Usually ships in 3-6 days

0

14

Honda 54130-750-003ZA

SEE PART DETAILS - SUP; KNOB, SHIFT LEVER *NH105* (MAT BLACK)
(Superseded to 54130-750-013ZA)

$

$

Not available

14

Honda 54130-750-013ZA

SEE PART DETAILS - PRI; KNOB, SHIFT LEVER *NH105* (MAT BLACK)

$

$

Not available

15

Honda 90066-MC7-000

BOLT, FLANGE (8X68)

$4.99

$

Usually ships in 3-6 days

0

16

Honda 90201-750-000

NUT, HEX. (8MM)

$3.49

$

Usually ships in 3-6 days

0

17

Honda 90452-166-600

WASHER, THRUST (12MM)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 10

0

19

Honda 94002-12020-0S

NUT, HEX. (12MM)

$1.99

$

Usually ships in 3-6 days

0

20

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

21

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 15

0

23

Honda 94510-12000

CIRCLIP (OUTER) (12MM)

$2.49

$

In Stock, only 3 left!

0

24

Honda 94520-35000

CIRCLIP (INNER) (35MM)

$2.49

$

In Stock, only 2 left!

0

25

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0

26

Honda 95700-06035-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X35)

$

$

Currently unavailable

26

Honda 95701-06035-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X35)

$2.49

$

In Stock, only 4 left!

0

27

Honda 96150-62020-10

BEARING, RADIAL BALL (6202UU)

$21.99

$

Usually ships in 3-6 days

0
