HT3813 SA (HT3813) - Honda Lawn Tractor, Made in Japan (SN: HT3813-5000001 - HT3813-5099999) CARBURETOR (HT3813/K1/4213) Parts Diagram

Lawn Tractor, Made in Japan

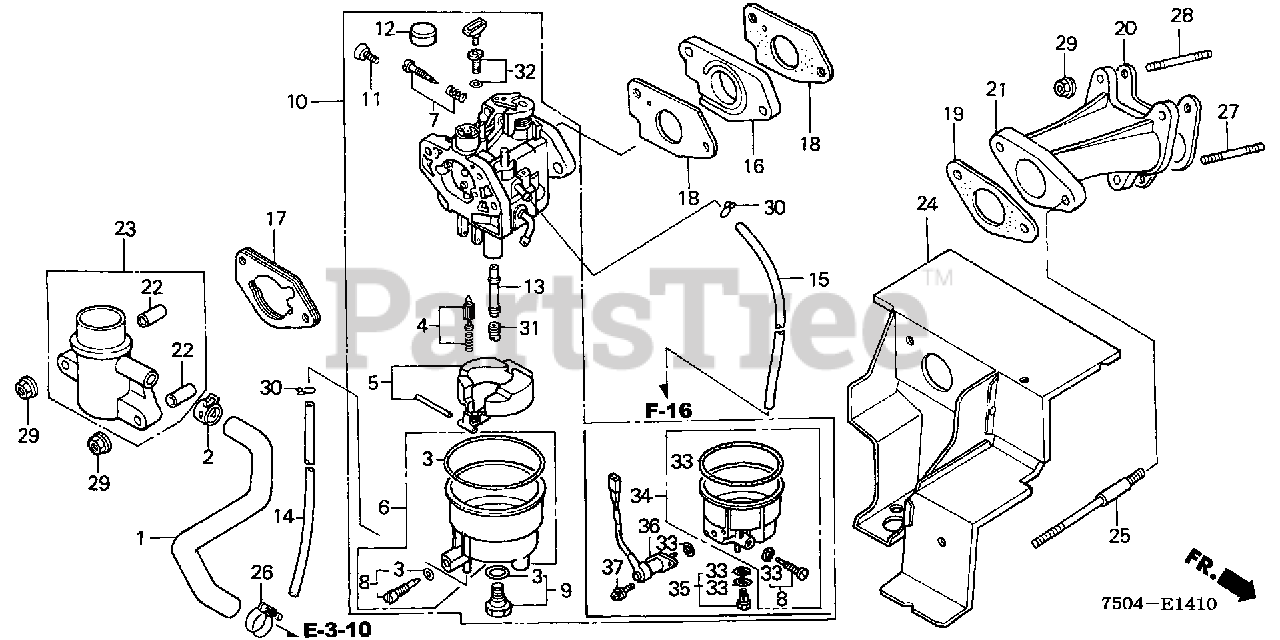

CARBURETOR (HT3813/K1/4213) Parts Diagram

  • Title

1

Honda 12315-ZA0-700

TUBE, BREATHER

$11.99

$

Usually ships in 3-6 days

0

2

Honda 15772-551-000

CLIP, BREATHER TUBE

$2.99

$

In Stock, Qty 5

0

3

Honda 16010-ZA0-701

GASKET SET

Note: Use up to Engine SN BE27A E.

$

$

Not available

4

Honda 16011-ZA0-931

VALVE SET, FLOAT

$45.99

$

In Stock, only 1 left!

0

5

Honda 16013-ZA0-931

FLOAT SET

$51.99

$

In Stock, only 1 left!

0

6

Honda 16015-ZA0-931

CHAMBER SET, FLOAT

Note: Use up to Engine SN BE27A E.

$83.99

$

Usually ships in 3-6 days

0

7

Honda 16016-ZE0-005

SCREW SET, PILOT

$15.99

$

In Stock, only 1 left!

0

8

Honda 16024-124-760

SEE PART DETAILS - PRI; SCREW SET, DRAIN

$15.99

$

Usually ships in 3-6 days

0

9

Honda 16028-ZA0-701

SCREW SET
(Superseded to 06160-Z1C-325)

Note: Use up to Engine SN BE27A E.

$24.99

$

In Stock, only 2 left!

0

10

Honda 16100-ZA0-L01

SEE PART DETAILS - PRI; CARBURETOR ASSY.

$

$

Not available

10

Honda 16100-ZA0-L01

SEE PART DETAILS - PRI; CARBURETOR ASSY.

Note: Use up to Engine SN 1204182.

$

$

Not available

10

Honda 16100-ZA0-707

CARBURETOR ASSY.

Note: Use from Engine SN 1204183.

$

$

Not available

11

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

12

Honda 16148-141-881

CAP, CHOKE LEVER DUST

$6.99

$

In Stock, only 1 left!

0

13

Honda 16166-ZA0-701

NOZZLE, MAIN (NOT AVAILABLE)

Note: Use up to Engine SN BE27A A.

$

$

Not available

13

Honda 16166-ZA0-702

NOZZLE, MAIN

Note: Use from Engine SN BE27A B.

$36.99

$

Usually ships in 3-6 days

0

14

Honda 16198-ZA0-700

TUBE, FUEL DRAIN

$18.99

$

Usually ships in 3-6 days

0

15

Honda 16199-ZA0-700

TUBE, AIR VENT

$19.99

$

Usually ships in 3-6 days

0

16

Honda 16211-ZA0-700

INSULATOR, CARBURETOR

$17.99

$

Usually ships in 3-6 days

0

17

Honda 16220-ZA0-700

SEE PART DETAILS - SUP; SPACER, CARBURETOR

Note: Use up to Engine SN 1139556.

$

$

Not available

17

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR

$11.99

$

In Stock, Qty 5

0

18

Honda 16221-ZA0-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-ZA0-800)

$2.49

$

In Stock, Qty 20+

0

18

Honda 16221-ZA0-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

19

Honda 16223-ZA0-800

GASKET, INSULATOR

$2.99

$

In Stock, Qty 19

0

20

Honda 16226-ZA0-800

GASKET, IN. MANIFOLD

$3.49

$

In Stock, only 2 left!

0

21

Honda 17100-ZA0-700

MANIFOLD, IN.

$78.99

$

Usually ships in 3-6 days

0

22

Honda 17238-ZE1-000

COLLAR, AIR CLEANER

Note: Use up to Engine SN 1139556.

$5.99

$

Usually ships in 3-6 days

0

22

Honda 17238-ZE7-010

COLLAR, AIR CLEANER

Note: Use from Engine SN 1139557.

$4.99

$

Usually ships in 3-6 days

0

23

Honda 04101-ZA0-700

SEE PART DETAILS - PRI; ELBOW SET, AIR CLEANER

Note: Use up to Engine SN 1139556.

$

$

Not available

23

Honda 17410-ZA0-700

SEE PART DETAILS - SUP; ELBOW, AIR CLEANER
(Superseded to 04101-ZA0-700)

Note: Use up to Engine SN 1139556.

$

$

Not available

23

Honda 17410-ZA0-701

ELBOW, AIR CLEANER

Note: Use from Engine SN 1139557.

$30.99

$

Usually ships in 3-6 days

0

24

Honda 18200-ZA0-800

SEE PART DETAILS - PRI; COVER, EX.

$129.99

$

Usually ships in 3-6 days

0

25

Honda 90042-ZA0-700

BOLT, STUD (8X123) (NOT AVAILABLE)

$

$

Currently unavailable

26

Honda 91410-ZA0-000

SEE PART DETAILS - SUP; CLIP A18, TUBE

$

$

Currently unavailable

27

Honda 92700-06032-0B

BOLT, STUD (6X32)

$2.49

$

Usually ships in 3-6 days

0

28

Honda 92900-06028-0B

BOLT, STUD (6X28)

$2.49

$

Usually ships in 3-6 days

0

29

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

30

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

31

Honda 99101-ZF5-0880

SEE PART DETAILS - SUP; JET, MAIN (#88) Use from Engine SN BE27C A.
(Superseded to 99101-ZH8-0880)

$8.49

$

In Stock, only 1 left!

0

31

Honda 99101-ZF5-0900

SEE PART DETAILS - SUP; JET, MAIN (#90) Use from Engine SN BE27C A.
(Superseded to 99101-ZH8-0900)

$8.49

$

In Stock, only 2 left!

0

31

Honda 99101-ZF5-0920

JET, MAIN (#92)

Note: Use from Engine SN BE27C A.

$11.99

$

Usually ships in 3-6 days

0

31

Honda 99101-124-0880

JET, MAIN (#88)

Note: Use up to Engine SN BE27A A.

$12.99

$

Usually ships in 3-6 days

0

31

Honda 99101-124-0880

JET, MAIN (#88) Use from Engine SN BE27A B to BE27A E.

$12.99

$

Usually ships in 3-6 days

0

31

Honda 99101-124-0900

JET, MAIN (#90) Use up to Engine SN BE27A E.

$12.99

$

Usually ships in 3-6 days

0

31

Honda 99101-124-0920

JET, MAIN (#92)

Note: Use from Engine SN BE27A B to BE27A E.

$12.99

$

Usually ships in 3-6 days

0

32

Honda 99204-ZA0-0450

JET SET, PILOT (#45)

$25.99

$

In Stock, only 1 left!

0

33

Honda 16040-ZA0-701

GASKET SET (NOT AVAILABLE)

Note: Use from Engine SN BE27C A.

$

$

Currently unavailable

34

Honda 16023-ZA0-701

CHAMBER SET, FLOAT

Note: Use from Engine SN BE27C A.

$

$

Not available

35

Honda 16028-ZA0-981

SCREW SET
(Superseded to 16028-ZA0-982)

Note: Use from Engine SN BE27C A.

$23.99

$

In Stock, only 2 left!

0

36

Honda 16200-ZA0-L01

VALVE ASSY., SOLENOID

Note: Use from Engine SN BE27C A.

$

$

Not available

37

Honda 93892-05012-08

SCREW-WASHER (5X12)

Note: Use from Engine SN BE27C A.

$1.49

$

In Stock, Qty 5

0
