HT3813 SA (HT3813) - Honda Lawn Tractor, Made in Japan (SN: HT3813-5000001 - HT3813-5099999) BLADE SHAFT + DRIVEN PULLEY (HT3810/K1/3813) Parts Diagram

Lawn Tractor, Made in Japan

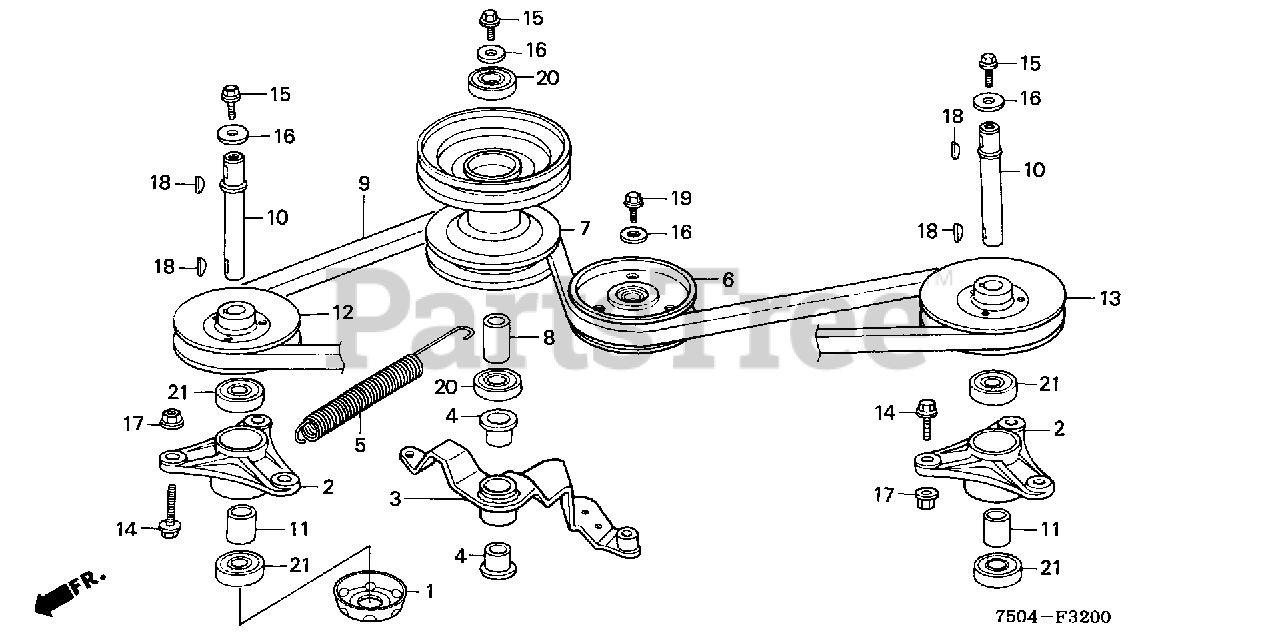

BLADE SHAFT + DRIVEN PULLEY (HT3810/K1/3813) Parts Diagram

  • Title
1

Honda 72625-751-000

COVER, BEARING

$

$

Not available

2

Honda 72711-750-000

HOUSING, BEARING

$243.99

$

Usually ships in 3-6 days

0

3

Honda 76120-750-010

SEE PART DETAILS - PRI; ARM, TENSIONER

$

$

Not available

4

Honda 76121-750-000

BUSH, TENSIONER ARM

$

$

Not available

5

Honda 76122-750-000

SPRING, TENSIONER ARM

$

$

Not available

6

Honda 76130-750-000

ROLLER, TENSIONER

$

$

Not available

7

Honda 06762-750-305

SEE PART DETAILS - PRI; PULLEY KIT, DRIVEN

$

$

Not available

8

Honda 76141-750-000

COLLAR, DRIVEN PULLEY

$

$

Not available

9

Honda 76181-750-013

V-BELT, BLADE

$67.99

$

Usually ships in 3-6 days

0

10

Honda 76212-750-000

SHAFT, BLADE

$

$

Not available

11

Honda 76213-750-000

COLLAR, BLADE SHAFT

$10.99

$

Usually ships in 3-6 days

0

12

Honda 76221-750-000

PULLEY, L. BLADE (130)

$

$

Not available

13

Honda 76221-750-000

PULLEY, L. BLADE (130)

$

$

Not available

14

Honda 90105-750-000

BOLT, SPECIAL (8X27)

$4.49

$

Usually ships in 3-6 days

0

15

Honda 90110-VA4-000

BOLT, WHEEL

$4.49

$

In Stock, Qty 19

0

16

Honda 90430-657-000

WASHER (8MM)

$9.49

$

In Stock, only 1 left!

0

17

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 16

0

18

Honda 90751-750-000

KEY, SPECIAL WOODRUFF (16X15)

$

$

Not available

19

Honda 95701-08014-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 96150-62030-10

BEARING, RADIAL BALL (6203UU)

$22.99

$

Usually ships in 3-6 days

0

21

Honda 96150-62040-10

BEARING, RADIAL BALL (6204UU)

$27.99

$

In Stock, only 1 left!

0
